DATALOGIC čítačka čiarových kódov Touch 65 Lite čierna RS-232/rozhranie keyboard wedge

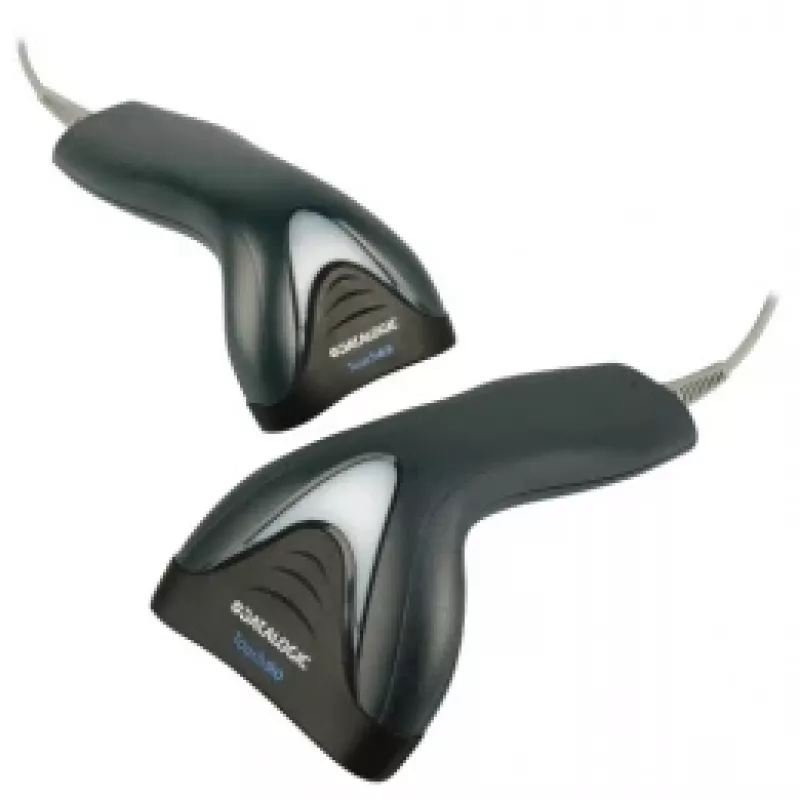

The Datalogic Touch 65 Lite Black is a compact barcode scanner designed for reliable 1D code reading. It offers a 6.5 cm (2.6 in) reading window suitable for standard bar codes, a working distance of 150 mm and a 640 nm illumination wavelength. The scanner supports common interfaces (RS-232, USB and Keyboard Wedge depending on model), weighs 130 g and has an IP30 rating. Power requirements are 5 V with typical consumption of 100 mA. The device includes the read-through holder; cables and power supplies are sold separately.

Advantages

The scanner delivers steady, accurate reading of standard bar codes within its 150 mm working range and a wide tilt angle (-45° to 45°). Its lightweight black housing (0.13 kg) and compact reading window make it suited for counters or POS stations. Multiple interface options (RS-232, USB, Keyboard Wedge) simplify integration with existing systems. The built-in read-through holder increases handling convenience during scanning.

Suitable for

• Point-of-sale terminals and cash desks
• Light industrial or retail barcode scanning
• Inventory checks and stock control with standard 1D bar codes
• Integration into legacy systems using RS-232 or Keyboard Wedge

Key specifications

• Reading window: 6.5 cm (2.6 in)
• Working distance: 150 mm
• Wavelength: 640 nm
• Tilt reading angle: -45° to 45°
• Interfaces: RS-232, USB, Keyboard Wedge (model-dependent)
• Weight: 0.13 kg
• Protection rating: IP30
• Power: 5 V, 100 mA
• Manufacturer part number (MPN): TD1170-BK-65
• EAN: 5711045619786

How to use

Mount the scanner on a counter or use the supplied read-through holder. Connect the device to your host system using the appropriate interface cable (RS-232, USB or Keyboard Wedge) and ensure a 5 V power source if required by your configuration. Aim the scanner at the barcode within the 150 mm working distance and within the tilt angle range; press or activate the trigger to scan. Verify successful read feedback from your host application or POS software.

Recommendations

For best results, keep the scanner lens clean, avoid direct sunlight on the scan window, and position bar codes flat and unobstructed within the 6.5 cm reading area. Use the model variant with the required interface for seamless system integration; purchase cables and power supplies separately if not included.
