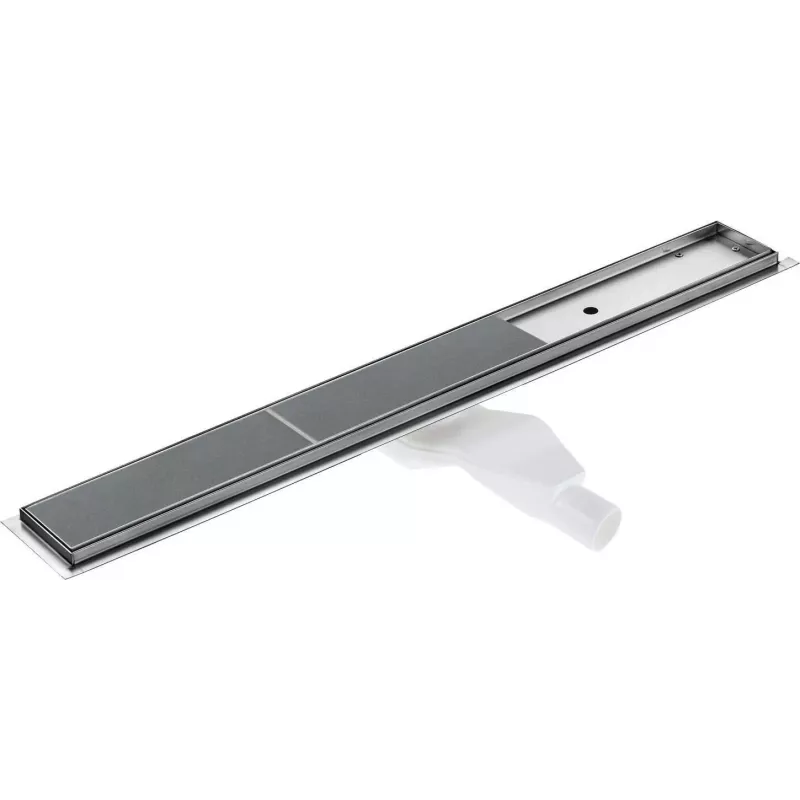

DEANTE KOS 007D Podlahový odtok 70 cm - reverzibilný lineárny sprchový odtok

The DEANTE KOS 007D floor drain is a high-quality linear shower drain designed for modern wet rooms and bathrooms. With a reversible grate that allows either a tile insert or a flat brushed stainless steel finish, it offers flexibility to match your floor design. Made from AISI 304 stainless steel, it ensures long-lasting durability and corrosion resistance.

Advantages

This drain features a removable wet siphon for easy cleaning and maintenance. The integrated sealing flange provides reliable waterproofing, while adjustable feet allow for precise height alignment during installation. With a flow rate of 45 L/min and a load capacity of K3 (up to 300 kg), it is both efficient and robust.

Suitable for

• Shower areas
• Wet rooms
• Bathroom floors

Key specifications

• Channel length: 700 mm (70 cm)
• Material: AISI 304 Stainless Steel
• Outlet diameter: 50 mm (with 40 mm reducer included)
• Minimum installation height: 60 mm
• Flow rate: 45 L/min
• Siphon type: Removable, wet siphon (ABS/Polypropylene)
• Adjustable feet: Yes
• Waterproofing: Integrated sealing flange
• Load capacity: K3 (up to 300 kg)
• Finish (flat side): Brushed stainless steel
• Included accessories: Grate removal hook, sealing membrane, adjustable feet, 40 mm reducer
• Certification: CE compliant

Recommendations

Ensure proper installation with a minimum height of 60 mm. The reversible grate allows you to choose between a tile-in look or a sleek brushed metal finish. Regular cleaning of the siphon is recommended for optimal performance.
