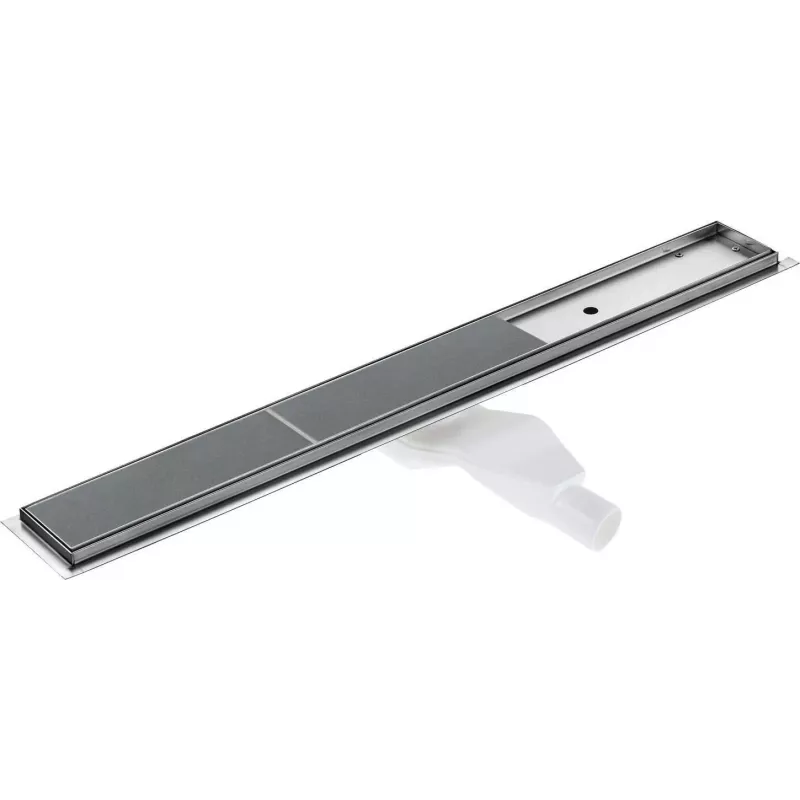

DEANTE KOS 010D podlahový odtok 100 cm - reverzibilný

The DEANTE KOS 010D is a high-quality linear floor drain designed for modern shower areas and bathrooms. With a reversible grate that allows for tile insertion or a sleek stainless steel finish, this drain offers flexibility to match any interior design. Its robust construction and efficient drainage ensure long-lasting performance.

Advantages

Reversible grate design for tiling or stainless steel finish; high drainage capacity of 0.8 L/s; integrated odor trap for hygiene; easy-clean removable components; factory-fitted sealing flange for waterproofing.

Suitable for

• Indoor shower areas
• Bathrooms with tiled floors
• Residential and light commercial use

Key specifications

• Product Type: Linear Floor Drain
• Drain Length: 600 mm
• Grate Type: Reversible (Tileable / Stainless Steel)
• Channel Material: High-grade ABS Plastic
• Grate Material: Stainless Steel (V2A / AISI 304)
• Outlet Diameter: DN 50 (50 mm)
• Outlet Orientation: Horizontal
• Water Seal Height: 22 mm
• Drainage Capacity: 0.8 L/s (48 L/min)
• Minimum Installation Height: 80 mm
• Maximum Installation Height: 125 mm
• Load Class: K3 (max. 300 kg)
• Application Area: Indoor, Shower Areas, Bathrooms
• Odor Trap: Integrated, Removable
• Cleaning Feature: Easy-clean design with removable components
• Connection System: Socket connection for push-fit pipes
• Sealing Flange: Factory-fitted, for liquid applied waterproofing
• Grate Finish (Stainless Steel Side): Brushed
• Tile Thickness (Tileable Grate): Max. 12 mm
• Overall Width (Channel): 112 mm

Recommendations

For optimal performance, ensure proper slope during installation. Compatible with standard DN 50 drainage pipes.
