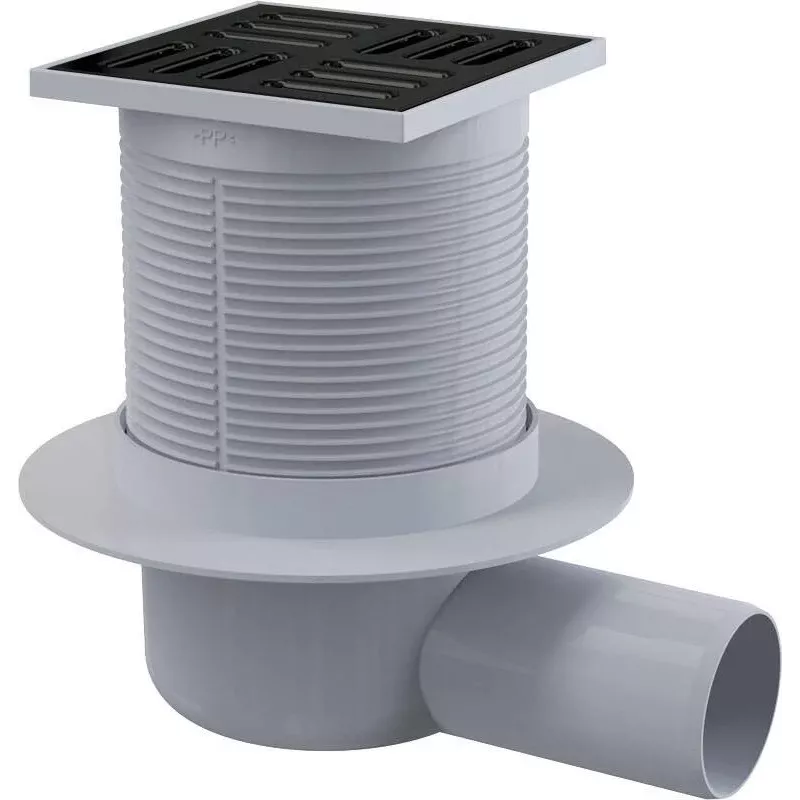

DEANTE KOS_N01C nerezový bodový odtokový rošt 150x150 mm

Point drain grate in stainless steel, engineered for rapid water evacuation in wet rooms and bathrooms. Its slotted design ensures efficient drainage while preventing debris from entering the system, maintaining hygiene and performance.

Advantages

Crafted from high-quality V2A (AISI 304) stainless steel, this grate offers exceptional durability and corrosion resistance, ideal for long-term use in damp environments. The robust construction withstands heavy loads up to 300 kg (load class K3), ensuring safety and reliability even under significant weight. The height-adjustable frame allows for precise installation, accommodating various floor tile thicknesses. An integrated dirt trap effectively captures hair and debris, reducing the risk of clogs and simplifying maintenance. The removable siphon (odor trap) with a 50 mm water seal height prevents unpleasant odors from entering the room, maintaining a fresh and hygienic environment.

Suitable for

• Indoor wet rooms and shower areas
• Bathrooms and utility rooms
• Commercial and residential applications
• Floors with tile or stone finishes

Key specifications

• Grate material: Stainless steel V2A (AISI 304)
• Grate dimensions: 150 x 150 mm
• Outlet nominal diameter: DN 50/75/110 (multi-diameter)
• Outlet orientation: Vertical
• Water trap type: Removable siphon (odor trap)
• Flow rate with 20 mm water head: approx. 1.8 L/s
• Load class: K3 (max. 300 kg)
• Minimum installation height: approx. 125 mm
• Body material: Polypropylene (PP)
• Seal type: Lip seal / O-ring seal
• Temperature resistance: Up to 90°C
• Standard compliance: DIN EN 1253
• Water seal height: 50 mm

Recommendations

For optimal performance, ensure the drain is installed with a slight slope towards the outlet and regularly clean the dirt trap to maintain flow efficiency.
