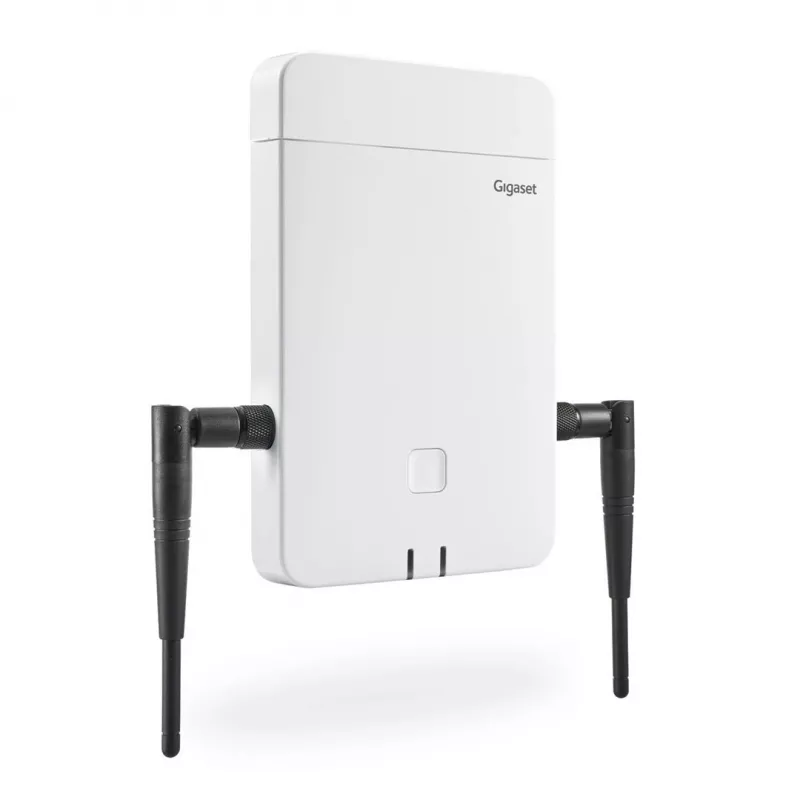

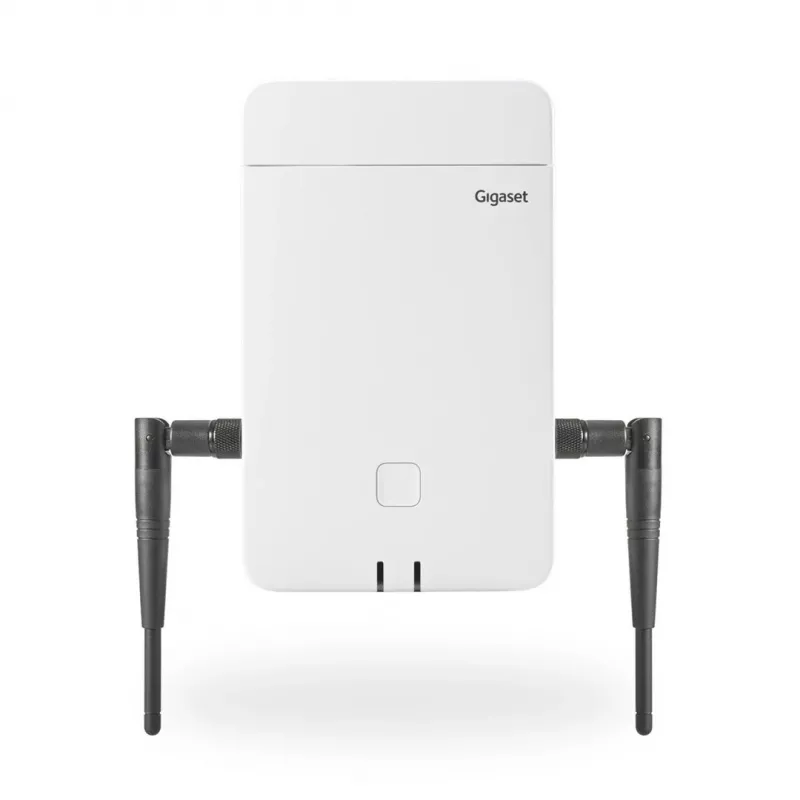

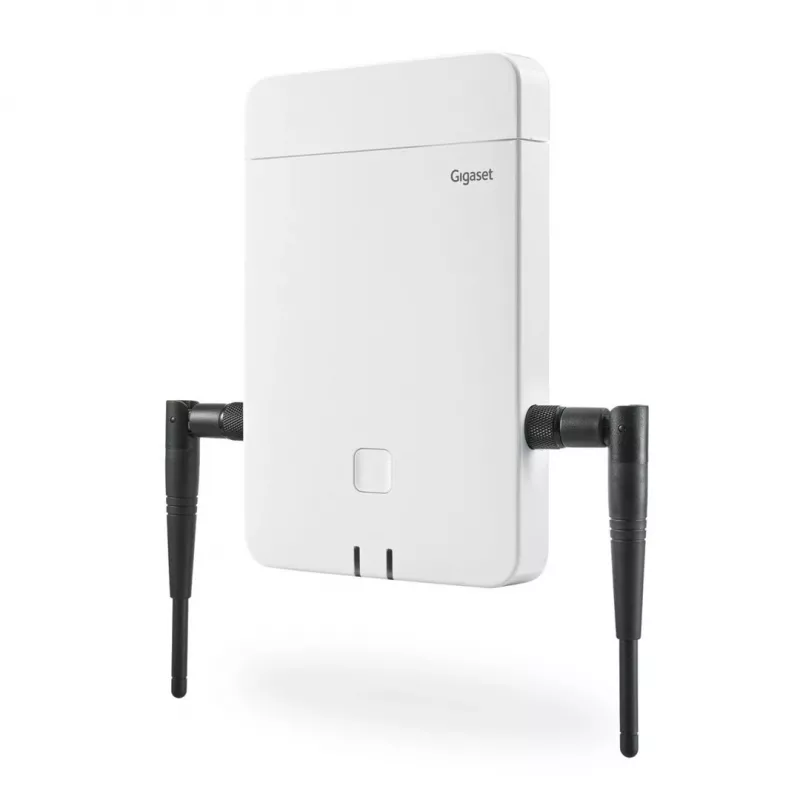

DECT základňová stanica Gigaset N870E IP PRO

The Gigaset N870E IP PRO is a DECT base station designed as an extension for the Gigaset N870 Multicell system to provide flexible, secure wireless telephony in special environments. It uses DECT technology and adds two removable, adjustable external antennas with TNC connectors, allowing use of third‑party and ceiling-mounted designer antennas. The unit is compact and can be placed inside cabinets for protection against vandalism, while antennas can be routed via cables to outdoor, production or parking areas. The N870E IP PRO supports seamless roaming and handover and is compatible with many virtual and IP-based phone systems.

Advantages

The device combines proven DECT Multicell functionality with flexible antenna options for improved coverage in outdoor spaces, production buildings, corridors, stairwells and car parks. External antennas and TNC connectors enable individual alignment and use of third‑party antennas. Installation is simple and does not require special outdoor housings or heaters because the base unit can be placed outside the controlled environment while antennas remain separate. The N870E IP PRO supports modern security protocols and common voice codecs for reliable, high-quality calls and integrates with existing phone systems and Microsoft Teams via auto-provisioning.

Suitable for

• Expanding DECT coverage to outdoor areas such as car parks
• Improving wireless coverage in production halls, corridors and stairwells
• Mixed Multicell deployments alongside indoor N870 IP PRO base stations
• Deployments requiring vandal protection by placing the unit inside cabinets
• Integrations with IP‑based phone systems and Microsoft Teams environments

Key specifications

• Standards: DECT, DECT‑GAP
• Audio codecs: G.711, G.722, G.729ab
• Security: HTTPS, SIPS, TLS
• External antenna connectors: 2 × TNC (removable/adjustable)
• Dimensions: 188 × 227 × 42 mm; Weight: 300 g
• Scalability: supports up to 250 DECT handsets (expandable via virtual integrator license)
• Compatibility: works with many virtual/IP phone systems; Microsoft Teams ready

How to use

Install the N870E IP PRO as an additional Multicell base station within your existing N870 Multicell landscape. Mount or place the base unit inside a secure cabinet if required and connect the two external antennas using coaxial cables to achieve the desired coverage. Configure network and SIP/VoIP settings via the web-based interface or auto-provisioning; the device supports Zero‑Touch Provisioning for straightforward deployment. After registration with your PBX or SIP provider, handsets will roam and receive seamless handover between cells.

Recommendations

The N870E IP PRO is recommended when you need reliable DECT coverage outside typical indoor areas. Use certified or high-quality third‑party antennas with matching TNC connectors and route antenna cables through protected conduits. For larger deployments or multi-site scenarios, consider the N870 Virtual Integrator license to scale handset capacity and consult the compatibility list on the vendor wiki before integration.
