DEFA eConnect Red Type 2 7,5 m 13,8 kW 20 A 250 V

DEFA eConnect Red Type 2 7.5m 13.8kW 20A 250V is a premium Mode 3 EV charging cable designed for reliable charging of electric vehicles and PHEVs with a Type 2 inlet. The 7.5 m cable supports up to 13.8 kW (requires a 400 V supply and a compatible charger) and is lightweight (approx. 2.1 kg), flexible in low temperatures and resistant to heat and moisture for long-term use.

Advantages

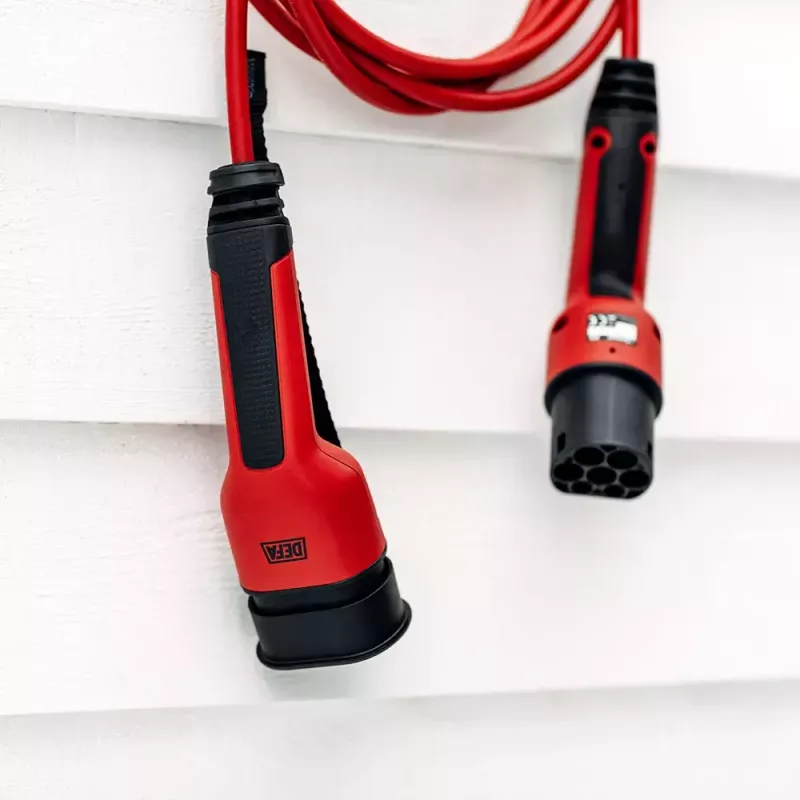

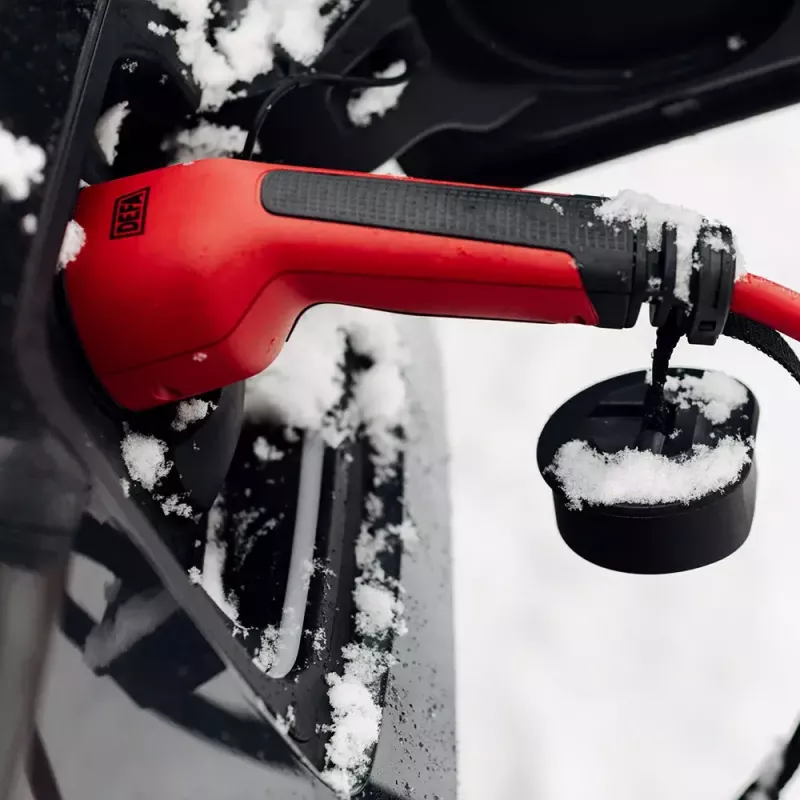

The eConnect Type 2 cable remains soft and flexible in severe cold, making it easier to handle, coil and store. Ergonomically shaped plugs and a lightweight construction improve user handling during daily use. Durable materials and resin-free connector design increase service life and simplify recycling by allowing separation of components. A retractable smart cap protects the Type 2 connector from water and dirt while hanging safely during charging.

Suitable for

• Charging electric vehicles and plug-in hybrids with a Type 2 inlet
• Outdoor and Nordic climates with low temperatures
• Home charging and use with public or workplace Type 2 charge points (Mode 3)

Key specifications

• Length: 7.5 m
• Maximum power: 13.8 kW (requires 400 V grid and compatible charger)
• Current: 20 A
• Voltage rating: 250 V
• Connector type: Type 2 (Mode 3)
• Weight: approximately 2.1 kg
• Brand / MPN / EAN: DEFA / 711307N / 7042287113076

How to use

Connect the Type 2 plug to the vehicle inlet and the opposite plug to a compatible Type 2 charging point. Ensure the charger and grid support the required voltage and current for the desired charging power (13.8 kW requires a 400 V supply and compatible charger). When not charging, store the cable coiled using the supplied velcro strap or an optional cable bag or docking station. Use the retractable smart cap to protect the vehicle-side connector when it is not in use.

Recommendations

Inspect the cable and connectors before each use for visible damage. Avoid sharp bends and heavy loads on the cable, and store it coiled and dry. Use the lockable docking station or a cable bag to protect the cable and connector from theft and contamination when left unattended.
