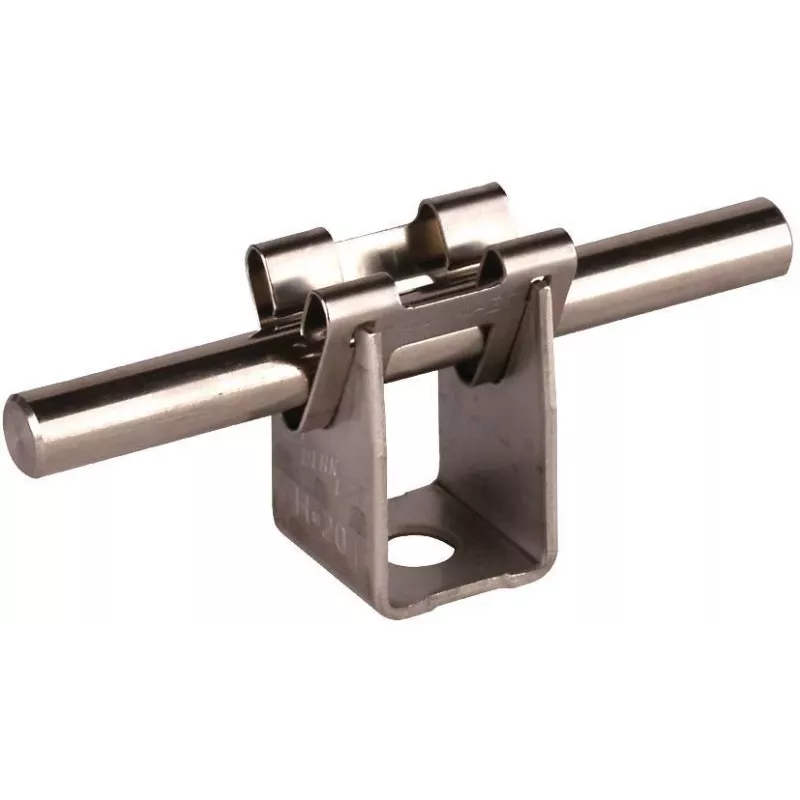

DEHN 207009 nehrdzavejúci držiak vodiča pre 8 mm kruhový vodič, výška 20 mm

This DEHN conductor holder is engineered for secure fastening of 8 mm round conductors in lightning protection, earthing, and equipotential bonding systems. Its stainless steel construction provides high corrosion and UV resistance, making it suitable for both indoor and outdoor installations. The 20 mm height and screw mounting with M6 hole allow for stable and reliable conductor support.

Highlights

• Stainless steel (Niro) for durability and corrosion resistance
• Fits 8 mm round conductors
• 20 mm height for optimal conductor positioning
• Screw mounting with M6 hole
• Compliant with EN 62561-1

In daily use

The holder is designed for straightforward installation: secure it with an M6 screw, then place the 8 mm round conductor. Its metallic silver finish blends with typical installation environments, and the high-quality material ensures long-term performance even in harsh weather conditions.

Full specifications

• Product Type: Conductor Holder
• Material: Stainless Steel (Niro)
• Conductor Diameter (max): 8 mm (Round)
• Height: 20 mm
• Mounting Type: Screw Mounting
• Mounting Hole Diameter: M6
• Application: Lightning Protection, Earthing, Equipotential Bonding
• Corrosion Resistance: High
• UV Resistance: High
• Temperature Range: -40 °C to +100 °C
• Standard Compliance: EN 62561-1
• Color: Metallic Silver
• Suitable Conductor Shape: Round
• Installation Environment: Outdoor, Indoor
• Base Dimensions (approx.): 20 x 20 mm

Final note

A reliable choice for professionals needing a robust and compliant conductor holder for 8 mm round conductors.
