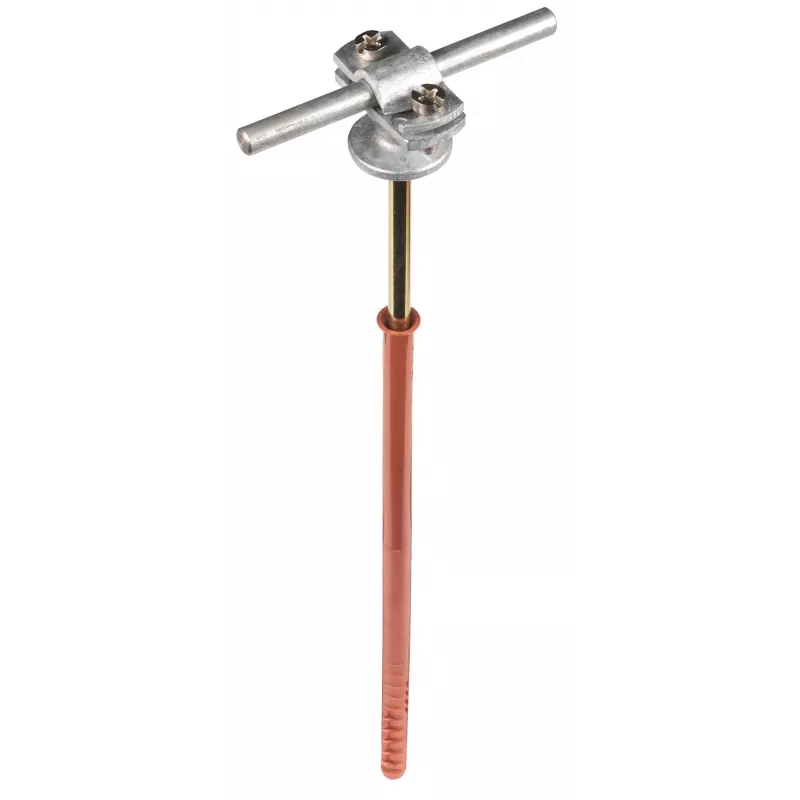

DEHN 273742 držiak vodiča pre kruhové laná 7-10 mm, pozinkovaná oceľ

Conductor holder for round conductors with a diameter of 7 to 10 mm, made of hot-dip galvanized steel. The DEHN 273742 secures and guides conductors in lightning protection and earthing systems, providing high corrosion resistance for outdoor and indoor use.

Advantages

Hot-dip galvanized steel ensures long-term durability even in harsh environments. The holder accommodates round conductors from 7 to 10 mm, offering flexibility in installation. Its surface mount design allows straightforward screw-on attachment.

Suitable for

• Round conductors with diameter 7–10 mm
• Lightning protection systems
• Earthing systems
• Outdoor and indoor installations

Key specifications

• Conductor type: Round conductor
• Conductor diameter range: 7 - 10 mm
• Material: Steel (St)
• Surface treatment: Hot-dip galvanized (tZn)
• Mounting type: Surface mount
• Number of conductors: 1
• Product series: 273 series

Recommendations

For securing and guiding round conductors in lightning protection and earthing systems, the DEHN 273742 offers reliable performance with high corrosion resistance.
