DEHN 314310 krížový spoj s medziplatňou, oceľ pozinkovaná 314310

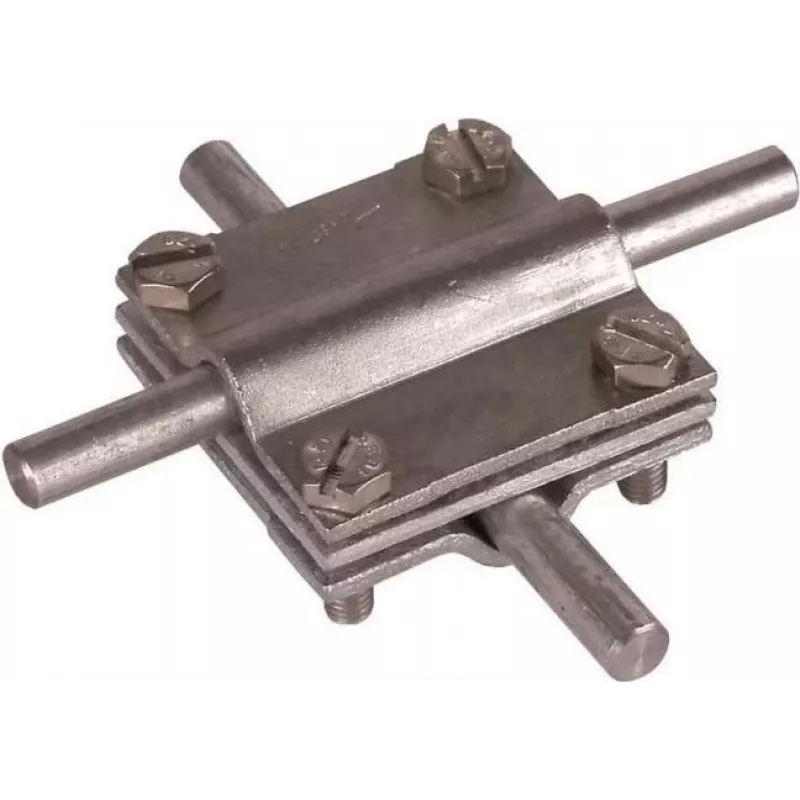

The DEHN 314310 cross connector stands out for its integrated intermediate plate, which provides mechanical separation and stability in cross-shaped conductor arrangements. Manufactured from steel with hot-dip galvanization, it offers durable corrosion resistance for outdoor and industrial lightning protection systems.

Highlights

• Cross configuration for connecting round conductors at right angles
• Intermediate plate ensures secure, vibration-resistant mounting
• Hot-dip galvanized steel for long-term corrosion protection
• Suitable for conductor diameters 8–10 mm
• Complies with DIN EN 62561-1 for lightning protection components

In daily use

This cross connector is used in earthing and equipotential bonding installations where conductors must cross without contact. The intermediate plate adds mechanical strength, making it ideal for exposed outdoor environments. Installation is straightforward with M8 x 25 hexagonal screws.

Full specifications

• Product type: Cross connector
• Material: Steel (St)
• Surface treatment: Hot-dip galvanized (tZn)
• Compatible conductor type: Round conductors
• Compatible conductor diameter: 8–10 mm
• Number of connections: 4
• Mounting type: Surface mount / screw connection
• Screw size: M8 x 25
• Corrosion resistance: High
• UV resistance: Yes
• Standard compliance: DIN EN 62561-1
• Installation environment: Outdoor / industrial
• Colour: Metallic grey
• Operating temperature range: -40°C to +80°C

Final note

Built for demanding lightning protection systems, the DEHN 314310 ensures reliable cross connections with lasting performance.
