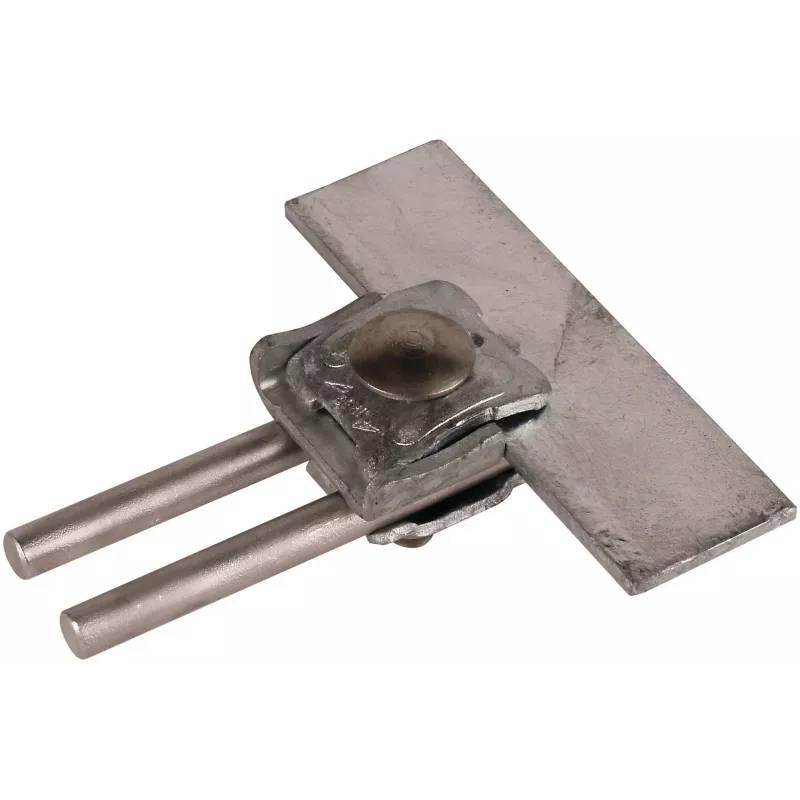

DEHN falcová svorka St/tZn 0,7-8mm 365010

Connecting lightning protection conductors to metal roofs with standing seams can be difficult without a reliable clamp. The DEHN 365010 seam clamp provides a secure connection point for round conductors on seams with a thickness of 0.7 to 8 mm.

Who is it for

This clamp is intended for installers and electricians working on external lightning protection systems for buildings with metal roofs or facades featuring standing seams or double standing seams.

Main features

• Material: hot-dip galvanized steel (St/tZn) for high corrosion resistance
• Clamping range: 0.7 - 8 mm seam thickness
• Conductor diameter: 8 - 10 mm round conductor
• Connection type: screw connection for secure fastening
• Complies with DIN EN 62561-1 (VDE 0185-561-1)

Specifications

• Product type: Seam clamp
• Material: Steel, hot-dip galvanized
• Application: Lightning protection, earthing, equipotential bonding
• Mounting: For standing seams, double standing seams, metal roofs/facades
• Seam thickness clamping range: 0.7 - 8 mm
• Conductor type: Round conductor (Rd)
• Conductor diameter range: 8 - 10 mm
• Standard compliance: DIN EN 62561-1 (VDE 0185-561-1)
• Corrosion resistance: High (hot-dip galvanized)
• Installation method: Screw connection
• Number of connections: 1
• Usage environment: Outdoor
• Resistance to UV: Yes
• Resistance to weather: Yes
• Colour: Metallic grey

Tips

Ensure the seam is clean and free of debris before clamping to achieve a reliable electrical connection. Use a torque wrench to apply the correct tightening force as recommended by the manufacturer.
