DEHN FLEXIgrip NIRO držiak strešného vodiča pre 8-10 mm okrúhle drôty, nehrdzavejúca oceľ 204949

Stainless steel roof conductor holder with FLEXIgrip clamp for 8-10 mm round conductors, suitable for flat roofs with bitumen, foil, concrete, or gravel coverings. Complies with EN 62561-4.

Overview

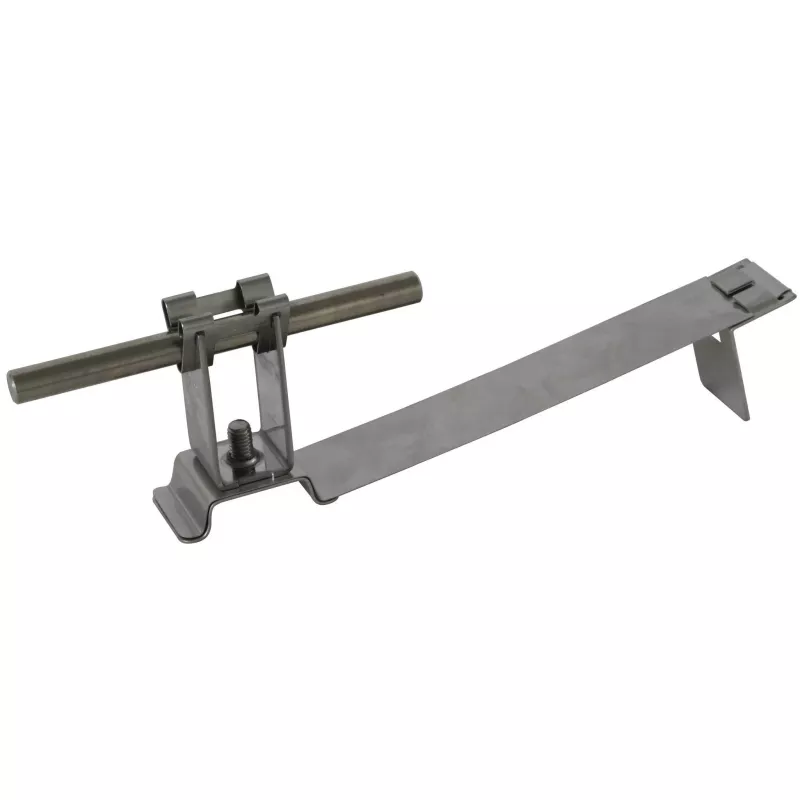

The DEHN FLEXIgrip NIRO 204949 is a roof conductor holder designed for lightning protection and equipotential bonding on flat roofs. Its flexible conductor clamp securely accommodates round conductors with diameters from 8 to 10 mm. Constructed from high-grade stainless steel (NIRO), it offers excellent corrosion resistance and UV stability, ensuring long-term reliability in outdoor environments.

What stands out

• Flexible FLEXIgrip clamp adapts to conductor diameter
• Stainless steel construction for high corrosion resistance
• Suitable for various flat roof coverings: bitumen, foil, concrete, gravel
• Wide operating temperature range: -50 °C to +100 °C
• Complies with EN 62561-4 for lightning protection components

Technical details

• Product type: Roof conductor holder
• Material: Stainless steel (NIRO)
• Conductor type: Round conductor
• Conductor diameter range: 8-10 mm
• Mounting surface: Flat roofs
• Suitable roof coverings: Bitumen, foil, concrete, gravel
• Standard compliance: EN 62561-4
• Application: Lightning protection, equipotential bonding
• Design feature: Flexible conductor clamp (FLEXIgrip)
• Corrosion resistance: High
• UV resistance: Yes
• Operating temperature range: -50 °C to +100 °C
• Installation method: Screwable (to base/substrate)
• Colour: Metallic (stainless steel)
• Series: FLEXIgrip

Our verdict

A robust and versatile roof conductor holder that meets stringent lightning protection standards. Its stainless steel build and flexible clamp make it a dependable choice for flat roof installations.
