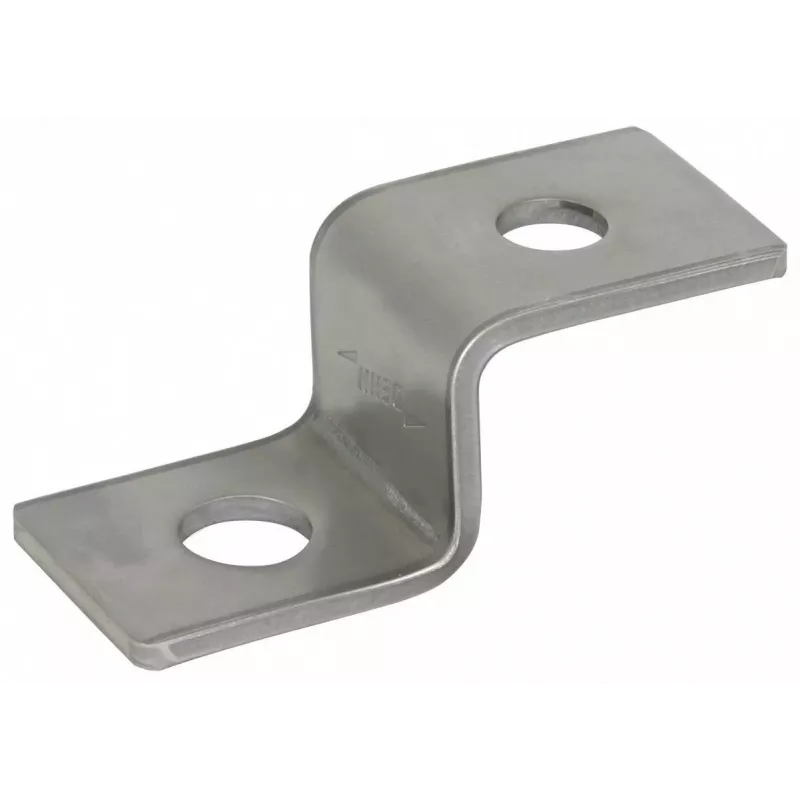

DEHN koncovka 390499 Z-tvar nerez pre 4 mm drôtené lano

Secure wire rope terminations in outdoor rigging and architectural installations with this DEHN Z-form end piece. Made from stainless steel (Niro), it provides high corrosion resistance for long-term reliability in demanding environments. The Z-shape allows for a clean, angled connection, ideal for tensioning systems where the wire enters at an offset. With a 4 mm compatible wire rope diameter and a 5 mm mounting hole, it fits common cable railing and tensioning hardware. Polished finish ensures a professional appearance while offering UV and weather resistance for indoor and outdoor use.

Key specifications

• Product type: End piece / terminal
• Material: Stainless steel (Niro)
• Form factor: Z-shape
• Compatible wire rope diameter: 4 mm
• Mounting hole diameter: 5 mm
• Overall length: 32 mm
• Overall width: 12 mm
• Overall height: 12 mm
• Finish: Polished
• Colour: Silver
• Corrosion resistance: High
• UV resistance: Yes
• Weather resistance: Yes
• Maintenance: Low

Why choose it

This end piece is built to last in harsh conditions. Stainless steel construction resists rust and corrosion, making it suitable for marine, coastal, or industrial environments. The Z-form design simplifies installation where the wire rope approaches at an angle, reducing stress on the cable. Its polished finish not only looks good but also helps shed water and dirt, keeping maintenance minimal.

Ideal use cases

• Cable railing systems on decks and balconies
• Architectural tension structures and canopies
• Wire rope assemblies in outdoor signage
• Marine rigging and safety barriers
• Industrial securing and tensioning applications

Good to know

Designed for 4 mm wire rope, this end piece pairs with standard tensioners and turnbuckles. The 5 mm mounting hole accepts common fasteners. For best results, use with stainless steel hardware to maintain corrosion resistance. Low maintenance requirements make it a cost-effective choice for long-term installations.
