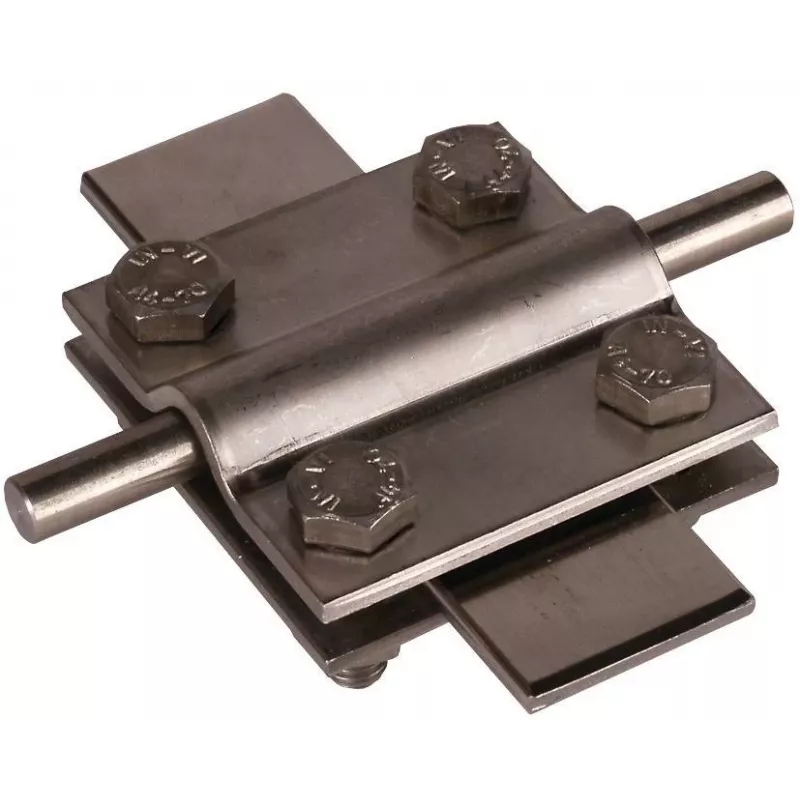

DEHN krížová spojka 318209 nerezová oceľ V4A bez medziľahlej dosky

The DEHN 318209 cross connector stands out by omitting the intermediate plate, simplifying installation while maintaining a secure clamp connection for round conductors. Crafted from stainless steel V4A (1.4404), it offers high corrosion resistance, making it suitable for demanding environments including outdoor and coastal applications.

Highlights

• Material: Stainless steel V4A (1.4404) for excellent corrosion resistance
• Designed for round conductors with 8 mm diameter
• Clamp/screw connection with M8 stainless steel screws
• Connects two conductors for lightning protection and grounding
• Without intermediate plate for direct connection

In daily use

This cross connector is used in lightning protection, grounding, and equipotential bonding systems. Its robust stainless steel construction ensures long-term reliability even in harsh conditions, with resistance to UV, saltwater, and chemicals. The operating temperature range of -40 °C to +100 °C allows use in a wide variety of climates.

Full specifications

• Product type: Cross connector
• Material: Stainless steel V4A (1.4404)
• Conductor diameter: 8 mm
• Connection type: Clamp/screw
• Number of conductors: 2
• Screw size: M8
• Operating temperature: -40 °C to +100 °C
• UV resistance: Yes
• Saltwater resistance: Yes
• Chemical resistance: Yes

Final note

DEHN's 318209 cross connector delivers dependable performance for critical bonding applications, backed by the durability of V4A stainless steel.
