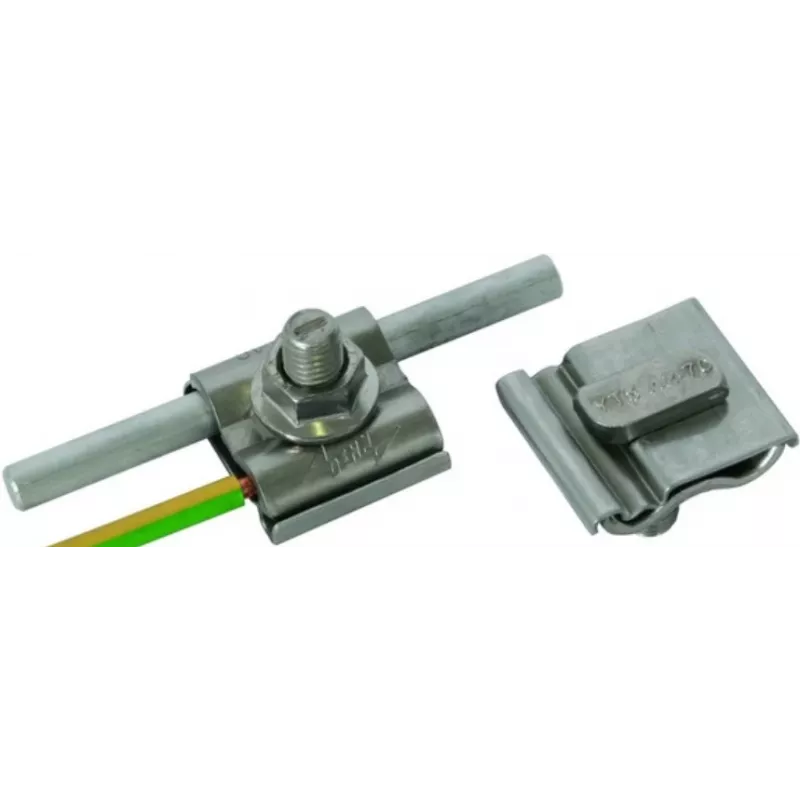

DEHN UEK 8.10 AQ4 50 HKSM10 V2A stožiarová svorka nerez (540260)

Installers securing lightning protection conductors to 50 mm masts will appreciate the DEHN UEK 8.10 AQ4 50 HKSM10 V2A Mast Clamp. Made from stainless steel, it grips round conductors from 8 to 10 mm and fastens with an M10 hexagon head screw for a firm hold.

Key specifications

• Material: Stainless steel (V2A / AISI 304)
• Conductor diameter: 8–10 mm
• Mast diameter: 50 mm
• Connection: Hexagon head screw M10
• Number of conductors: 1
• Application: Lightning protection and earthing systems

Why choose it

Its stainless steel construction resists corrosion, making it suitable for long-term outdoor use. The clamp is designed for a single conductor, ensuring a secure connection.

Ideal use cases

• Mounting lightning protection conductors on masts
• Earthing system installations
• Outdoor electrical installations

Good to know

The clamp is designed for round conductors and is compatible with standard lightning protection components.
