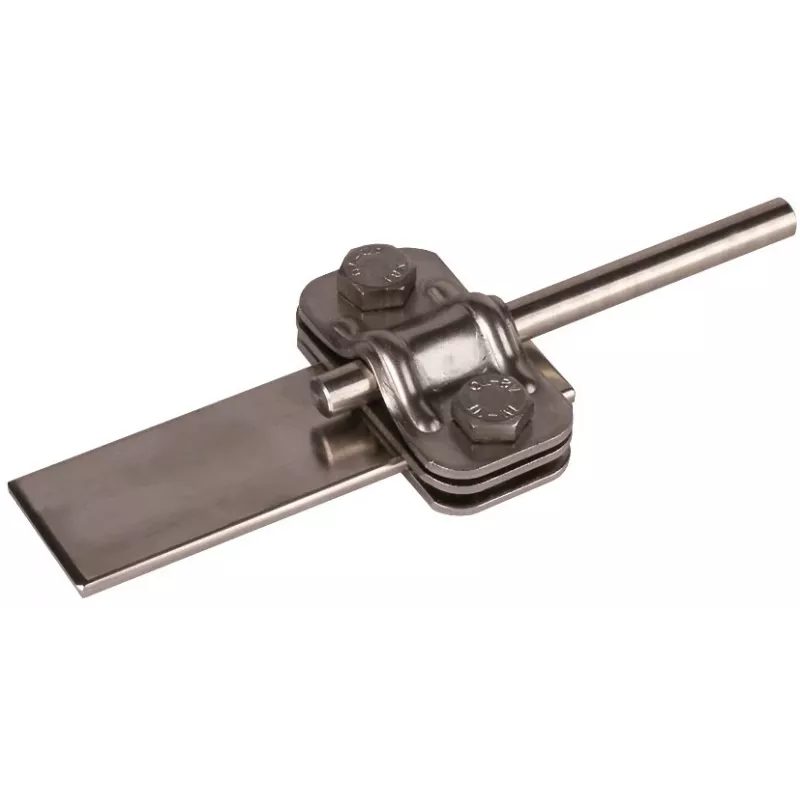

DEHN UNI oddeľovacia svorkovnica 459139 nehrdzavejúca oceľ pre okrúhle 8-10 mm / ploché 30 mm

Disconnecting clamp for equipotential bonding, earthing, and lightning protection systems, featuring a screw clamp connection that allows disconnection for measurement and testing without interrupting the conductor run. Constructed from stainless steel (V2A / 1.4301) for high corrosion resistance in outdoor and indoor environments.

Advantages

Allows safe disconnection of conductors for testing and maintenance. Stainless steel construction ensures durability and resistance to weather and UV exposure. Suitable for both round and flat conductors, providing installation flexibility.

Suitable for

• Equipotential bonding in electrical installations
• Earthing and lightning protection systems
• Outdoor and indoor applications requiring corrosion resistance

Key specifications

• Product type: Disconnecting clamp
• Material: Stainless steel (V2A / 1.4301)
• Conductor compatibility: Round 8-10 mm diameter, flat up to 30 mm width
• Connection method: Screw clamp
• Lightning current carrying capacity (Iimp): 100 kA (10/350 µs)
• Standard compliance: EN 62561-1

Recommendations

For reliable and corrosion-resistant disconnecting points in earthing and bonding systems, this clamp offers a secure screw connection and easy testing access.
