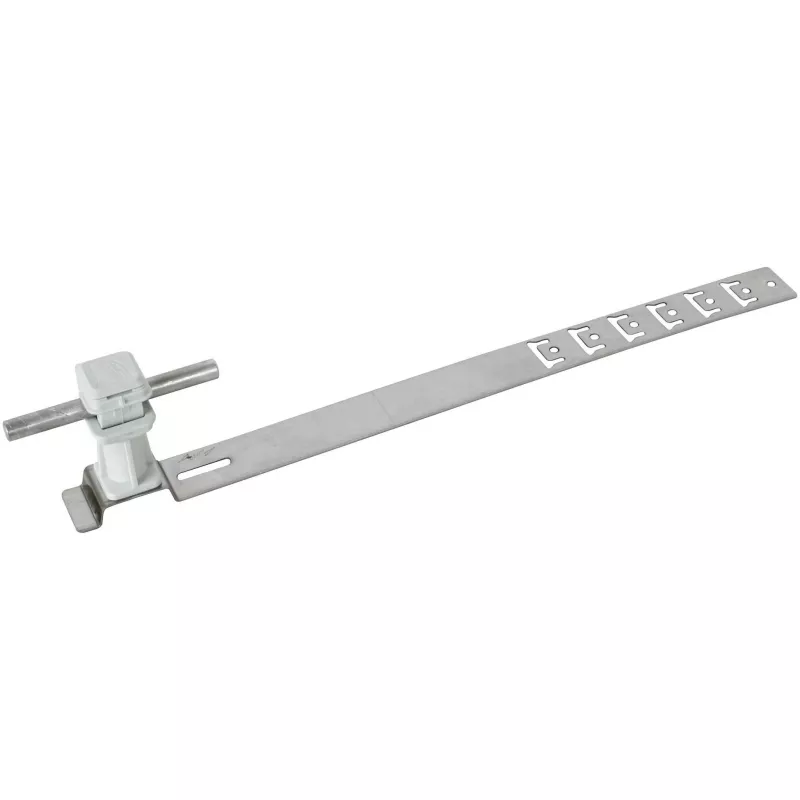

DEHN UNIsnap držiak strešného vedenia NIRO/K-sivý 204189

Roof conductor holder for lightning protection systems, featuring a snap-on UNIsnap mechanism for quick and secure installation on flat roofs. The stainless steel holder accommodates 8 mm round conductors at a height of 100 mm, while the UV-stabilized, weather-resistant plastic base in K-grey ensures long-term durability.

Advantages

Snap-on installation reduces mounting time. Stainless steel holder and UV-resistant base provide corrosion resistance and withstand temperatures from -50 °C to +100 °C. Suitable for bitumen, foil, gravel, and green roofs.

Suitable for

• Flat roof lightning protection systems
• 8 mm round conductors
• Bitumen, foil, gravel, and green roof coverings

Key specifications

• Holder material: Stainless steel (NIRO)
• Base material: UV-stabilized, weather-resistant plastic
• Base colour: K-grey
• Conductor diameter: 8 mm
• Conductor height above roof: 100 mm
• Base dimensions: 150 x 150 mm
• Temperature resistance: -50 °C to +100 °C
• Standard compliance: EN 62561-4

Recommendations

For reliable lightning protection on flat roofs, combine with DEHN conductors and connectors.
