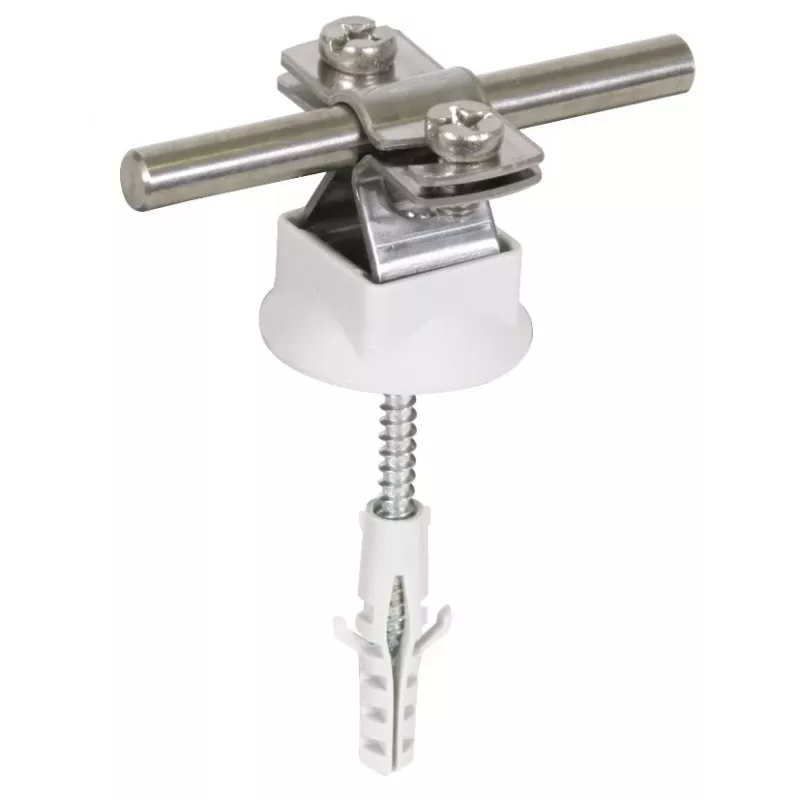

DEHNclip držiak vodiča NIRO pre kruhový drôt 8-10 mm, nehrdzavejúca oceľ 274160

Securing round conductors in lightning protection systems can be challenging, especially on flat surfaces where traditional fasteners may not provide reliable grip or corrosion resistance. The DEHNclip Conductor Holder NIRO solves this by offering a robust stainless steel clamp designed specifically for round conductors with diameters between 8 and 10 mm.

Who is it for

This conductor holder is intended for electricians, lightning protection installers, and maintenance professionals who need a durable, corrosion-resistant fixing solution for round conductors in outdoor or indoor environments. It is suitable for use in lightning protection systems compliant with EN 62561-4.

Main features

• Made of stainless steel (NIRO), material grade 1.4301 (V2A) for high corrosion resistance.
• Compatible with round conductors with a diameter of 8 to 10 mm.
• Surface mounting via adhesive or screw on flat surfaces.
• UV resistant and suitable for temperatures from -50 °C to +100 °C.
• Compact design: base plate 40 x 40 mm, overall height 22 mm.

Specifications

• Product type: Conductor holder
• Material: Stainless steel (NIRO), grade 1.4301 (V2A)
• Compatible conductor type: Round conductor
• Compatible conductor diameter: 8 - 10 mm
• Mounting type: Surface mounting (adhesive / screw)
• Application: Lightning protection systems (LPS)
• Standard compliance: EN 62561-4
• Operating temperature range: -50 °C to +100 °C
• UV resistance: Yes
• Corrosion resistance: High
• Installation surface: Flat surfaces
• Color: Metallic silver
• Base plate length: 40 mm
• Base plate width: 40 mm
• Overall height: 22 mm
• Environmental suitability: Outdoor / Indoor
• Brand series: DEHNclip

Tips

For optimal performance, ensure the conductor is clean and free of debris before clamping. When using adhesive mounting, verify that the surface is smooth, dry, and free of contaminants to achieve maximum bond strength. For screw mounting, use appropriate fasteners for the substrate material.
