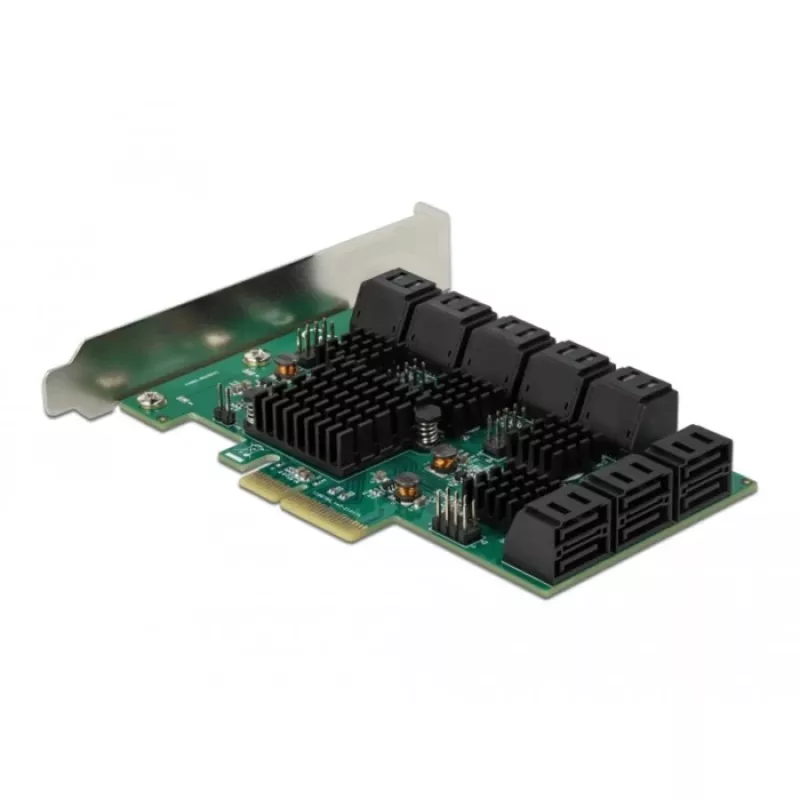

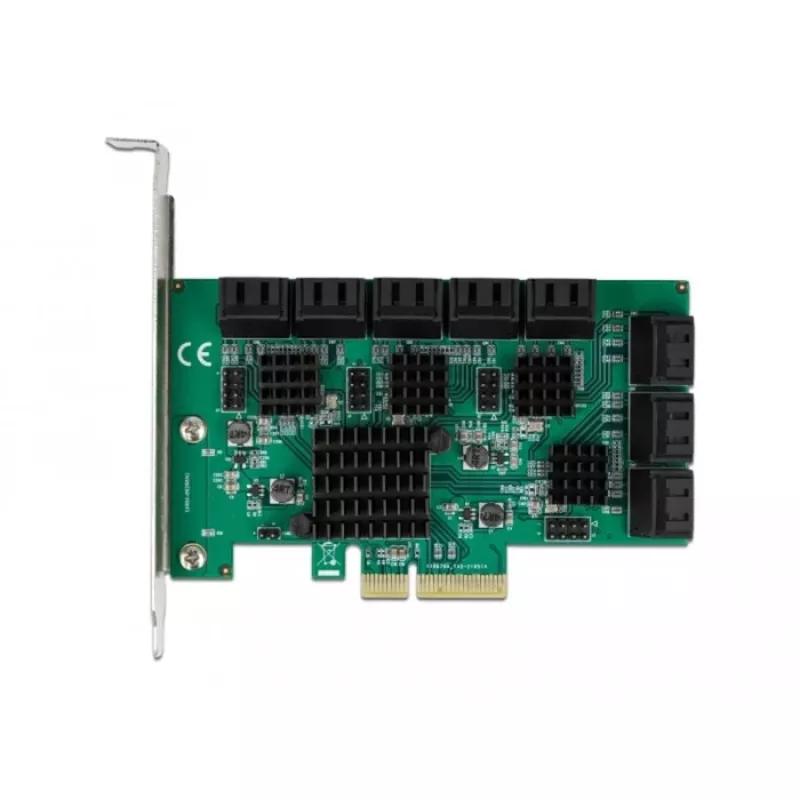

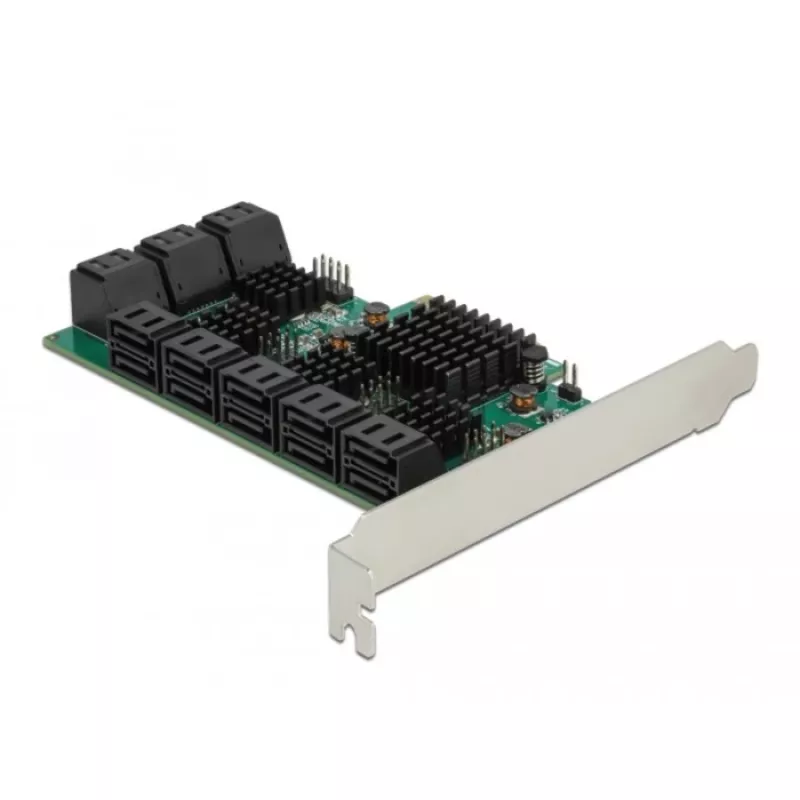

DeLOCK 16 port SATA PCI Express x4 karta 6 Gbit/s zelená sivá

The DeLOCK 16 port SATA PCI Express x4 Card expands a PC with 16 internal SATA ports via a PCIe x4 host interface, enabling connection of multiple internal storage devices such as SSDs, hard drives and optical drives. The card supports SATA data rates up to 6 Gbit/s and is intended for desktop PCs. It is compatible with common Windows operating systems including Windows 10 and Windows Server 2019 and comes in a green and grey colour scheme.

Advantages

This PCI Express card provides a high port density solution for systems that require multiple internal SATA connections without changing the motherboard. With PCIe x4 connectivity and support for 6 Gbit/s per port it enables modern SATA drives to operate at their rated speeds. The card is designed for internal installation in desktop PCs and packaged for retail delivery.

Suitable for

• Expanding internal storage capacity in desktop PCs
• Connecting multiple SATA SSDs or HDDs for file servers or workstations
• Adding extra optical drives or legacy SATA devices
• System builders and hardware upgrades without changing the motherboard

Key specifications

• Brand: DELOCK
• Model / MPN: 90073
• EAN: 4043619900732
• Host interface: PCIe (x4)
• Number of internal SATA ports: 16
• Output interface: SATA
• Maximum data rate: 6 Gbit/s per port
• Internal: Yes
• Compatible OS: Windows 10, Windows Server 2019 (and other common Windows versions)
• Product colour: Green, Grey

How to use

Power off the PC and disconnect from mains. Install the card into an available PCI Express x4 (or larger) slot on the motherboard and secure it with the bracket screw. Connect internal SATA data cables from the card's ports to the SATA devices (SSDs, HDDs, optical drives). Connect any required power cables from the PC power supply to the drives. Reconnect power and start the system; install or update drivers if the operating system does not automatically recognise the card. Configure connected drives in the OS or BIOS/UEFI as needed.

Recommendations

For stable operation ensure the motherboard has a free PCIe x4 or x16 slot and the power supply can provide sufficient power for all connected drives. Use quality SATA cables and follow anti-static precautions during installation. Verify driver compatibility with your specific Windows version before deployment.
