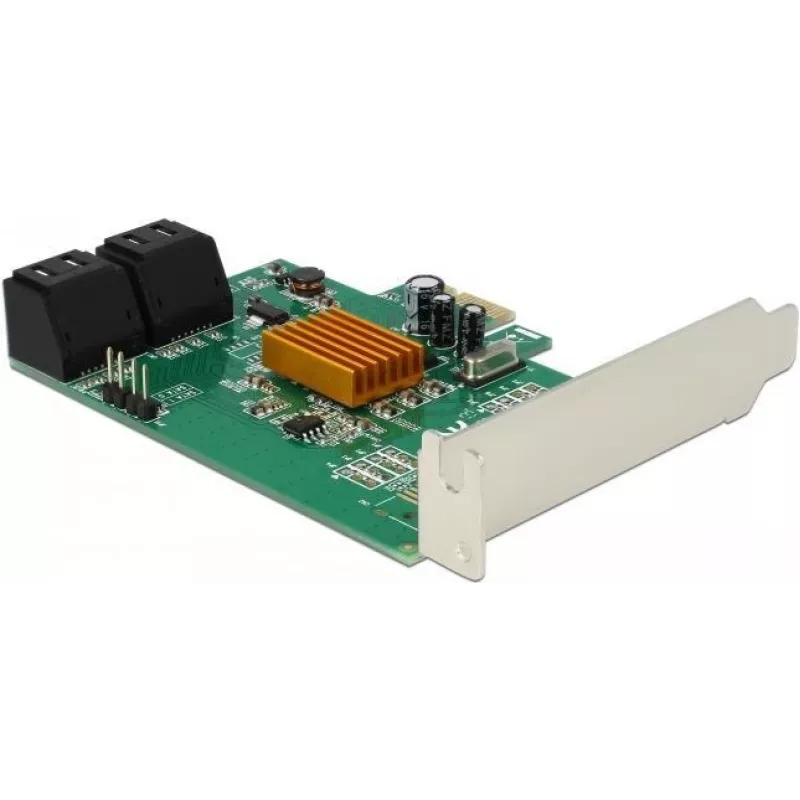

DeLOCK 4 port SATA 6Gb/s PCIe 2.0 x1 radič karta s Marvell 88SE9215

Add four SATA 6 Gb/s ports to your system through a single PCIe 2.0 x1 slot with the DeLOCK 4 Port SATA PCI Express Card. Powered by the Marvell 88SE9215 chipset, this expansion card delivers up to 6 Gb/s per port, making it ideal for connecting high-speed SSDs and HDDs. It supports RAID 0, RAID 1, RAID 10, and JBOD configurations for flexible storage management.

Overview

The DeLOCK 90382 is a 4-channel SATA 6Gb/s controller card that plugs into a PCI Express 2.0 x1 slot. It features four internal SATA ports, each capable of 6 Gb/s data transfer rates, and is backward compatible with SATA 3 Gb/s and 1.5 Gb/s devices. The card supports Native Command Queuing (NCQ), Hot Plug, and 48-bit LBA for large capacity drives. It includes both standard and low-profile brackets for compatibility with various computer cases.

What stands out

• Four SATA 6 Gb/s ports from a single PCIe 2.0 x1 slot
• Marvell 88SE9215 chipset for reliable performance
• Supports RAID 0, RAID 1, RAID 10, and JBOD
• Hot Plug and NCQ support for efficient data handling
• Includes low-profile bracket for slim systems

Technical details

• Host Interface: PCI Express 2.0 x1
• Internal Ports: 4 x SATA 6 Gb/s
• Chipset: Marvell 88SE9215
• Data Transfer Rate: Up to 6 Gb/s per port
• SATA Revision: SATA 3.0 (SATA III)
• RAID Support: RAID 0, RAID 1, RAID 10, JBOD
• Features: AHCI, Native Command Queuing (NCQ), Hot Plug
• Operating System Support: Windows 7/8/8.1/10/11 (32/64-bit), Linux Kernel 2.6.x and above, macOS 10.x and above
• PCIe Slot Compatibility: PCIe x1, x4, x8, x16

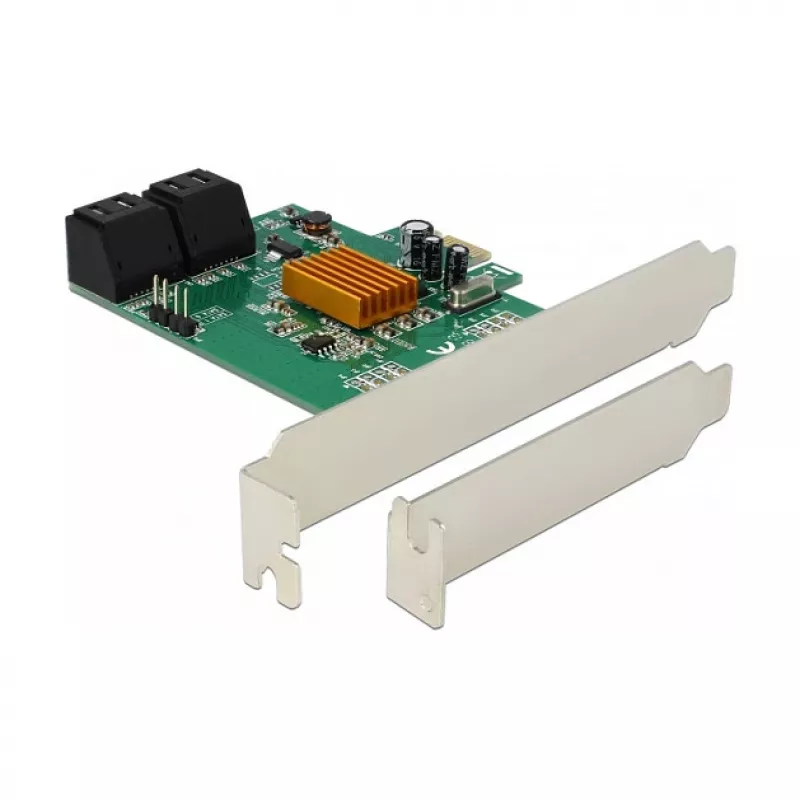

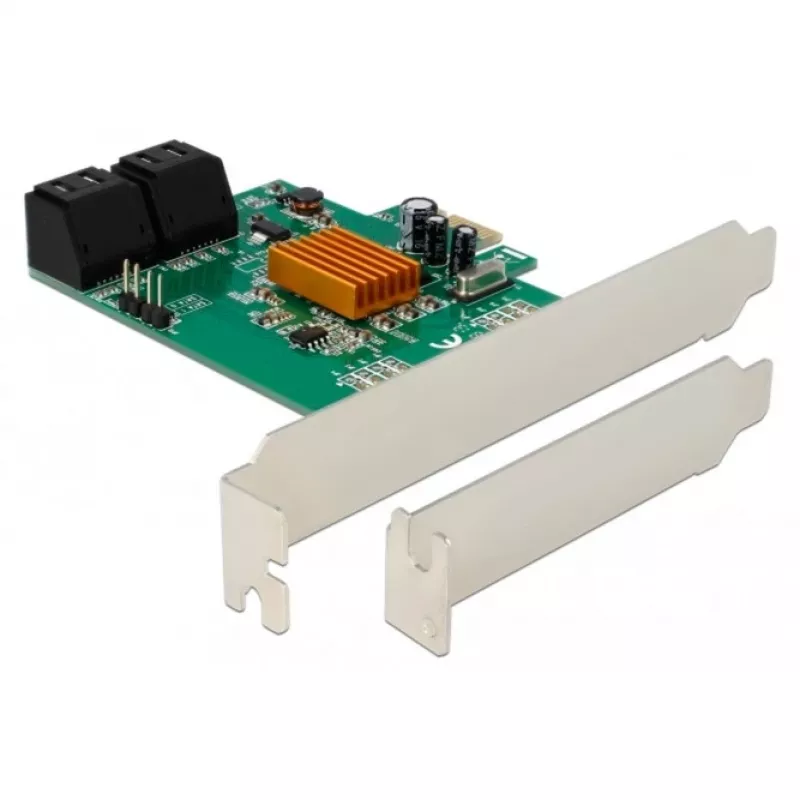

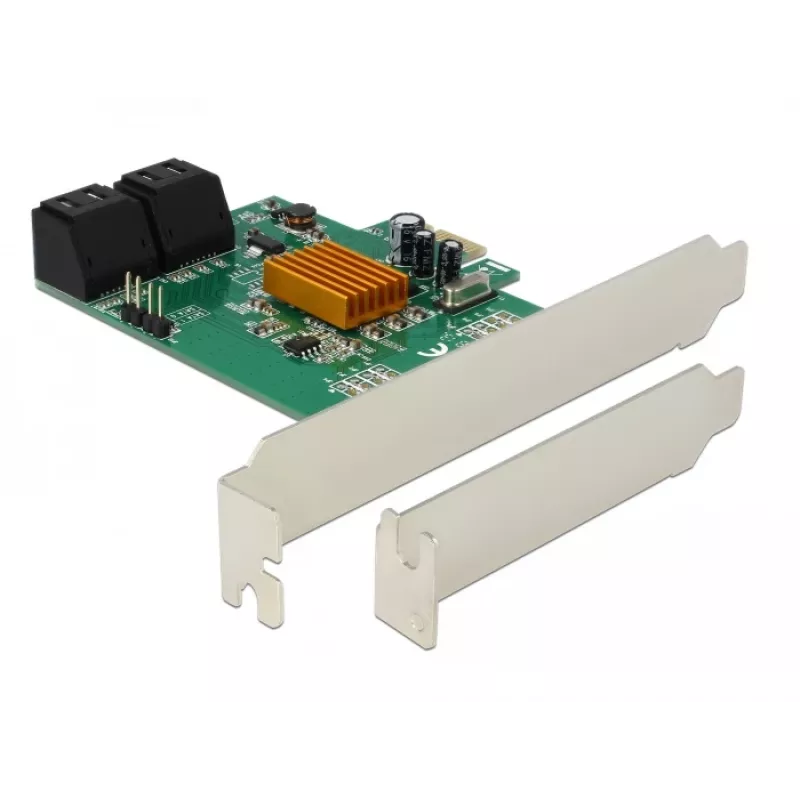

• Bracket: Standard profile bracket, low profile bracket included
• Power Source: PCIe Bus Power
• Compliance: PCI Express Base Specification Revision 2.0, Serial ATA Revision 3.0
• Max LBA Support: 48-bit LBA
• Bootable: Yes

Our verdict

The DeLOCK 90382 is a straightforward way to add four SATA 6 Gb/s ports to any desktop with a spare PCIe x1 slot. Its RAID support and low-profile bracket make it a versatile choice for both home servers and compact builds.
