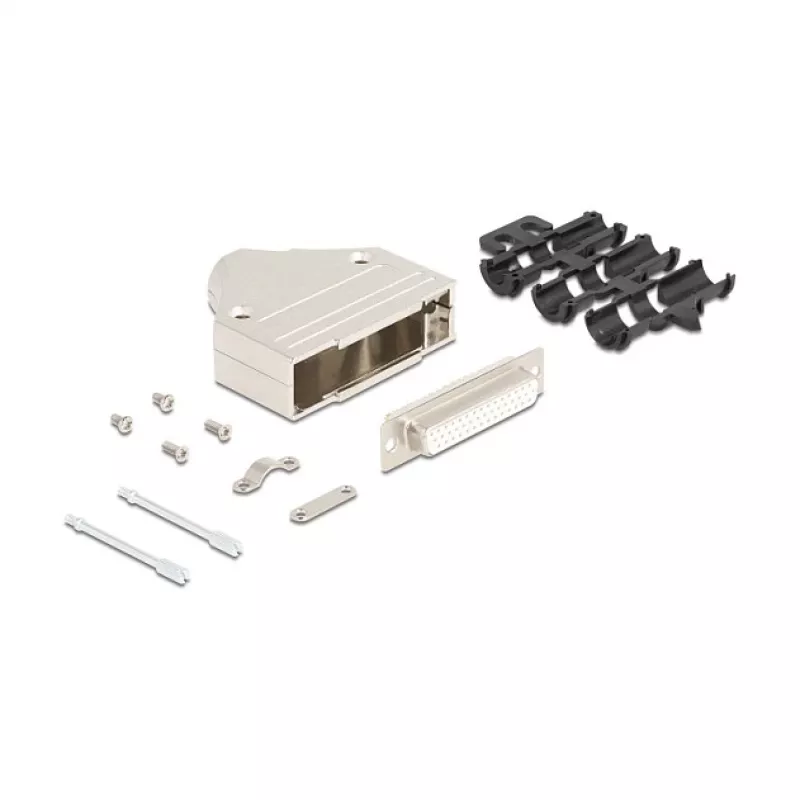

DeLOCK 67139 drôtový konektor D-Sub 44-pólový strieborný samica

The DeLOCK 67139 wire connector is a 44-pin D-Sub female connector finished in silver, designed for use in electronic applications that require a compact, multi-pin interface. With overall dimensions of 54.5 mm (width) x 47 mm (depth) x 15.6 mm (height), this connector provides a standardized D-Sub form factor suited to board- or cable-mounted assemblies where a reliable, space-conscious connection is required.

Advantages

The DeLOCK 67139 offers a full 44-pin D-Sub female configuration that supports multiple signal lines in a single connector body. Its silver colour and standardized dimensions make it compatible with a wide range of housings and mating connectors that follow D-Sub conventions. The compact physical size allows integration into equipment with limited panel or PCB space while preserving the ability to carry numerous signals through one mating interface.

Suitable for

• Interfacing multi-signal cables in communication and control equipment
• Mating with corresponding D-Sub 44-pin male counterparts in devices and enclosures
• Use in compact electronic assemblies where space is limited
• Replacement or repair of existing 44-pin D-Sub female connections

Key specifications

• Connector type: D-Sub, female
• Number of pins: 44
• Colour/finish: Silver
• Width: 54.5 mm
• Depth: 47 mm
• Height: 15.6 mm

How to use

Align the DeLOCK 67139 female D-Sub connector with the mating male connector, ensuring that pin orientation matches properly. Secure the connector according to the mounting method used in your assembly (panel mount, cable assembly or PCB interface) and verify mechanical fastening where applicable. After mating, confirm signal continuity and correct wiring before applying power to the system.

Recommendations

For reliable long-term performance, use compatible D-Sub 44-pin male connectors and avoid excessive mechanical stress on the connector body and contacts. Ensure proper strain relief for attached cables and perform continuity checks after installation.
