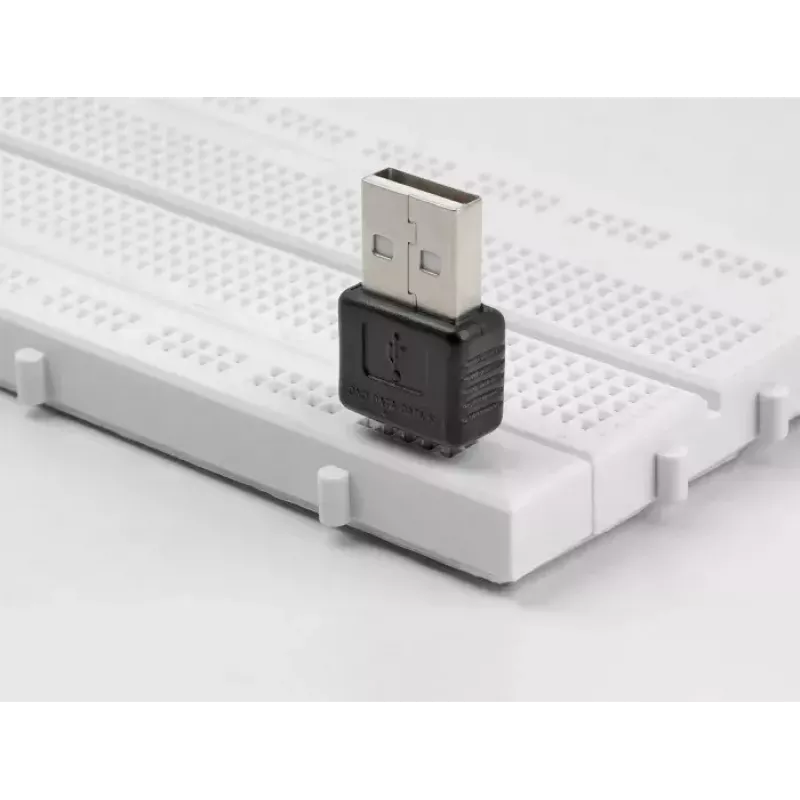

DeLOCK adaptér USB 2.0 Type-A samec 4-pinový čierny strieborný 5V

The DeLOCK Adapter USB 2.0 Type-A male is a through-hole mount USB connector designed to link USB 2.0 Type-A devices. It features a straight form factor, operates at 5V input voltage and is finished in black and silver. Compact dimensions (16 mm width, 34.7 mm depth, 8 mm height) make it suitable for integration into a variety of electronic assemblies where a standard USB Type-A male connection is required.

Advantages

This DeLOCK USB 2.0 Type-A male connector supports standard USB 2.0 signalling and a 5V supply, offers a compact straight design for space-efficient installations, and is intended for reliable through-hole mounting. The black and silver finish provides a neutral appearance that fits different device housings.

Suitable for

• Connecting USB 2.0 Type-A devices to PCBs or custom assemblies
• Replacement or prototyping of USB Type-A male interfaces
• Embedded devices and consumer electronics requiring a compact male USB-A connector

Key specifications

• USB version: 2.0
• Connector type: USB Type-A male, 4 pin
• Mounting: through-hole
• Input voltage: 5 V
• Colour: Black, Silver
• Dimensions (W x D x H): 16 mm x 34.7 mm x 8 mm
• Brand: DELOCK
• MPN: 66683
• EAN: 4043619666836

How to use

Insert the through-hole pins of the DeLOCK USB 2.0 Type-A male connector into the corresponding holes on the printed circuit board and solder each pin following standard soldering practices. Ensure correct orientation of the connector so the Type-A male interface aligns with the intended external access point. Verify solder joints and mechanical fixation before applying power or connecting devices.

Recommendations

Use appropriate ESD precautions when handling and soldering the connector. Confirm that the PCB footprint matches the connector pin layout and that the 5V supply and USB 2.0 signal integrity requirements are met for reliable operation.
