DeLOCK adaptér USB 2.0 Type-A samec na 4-pin 90° zahnutý

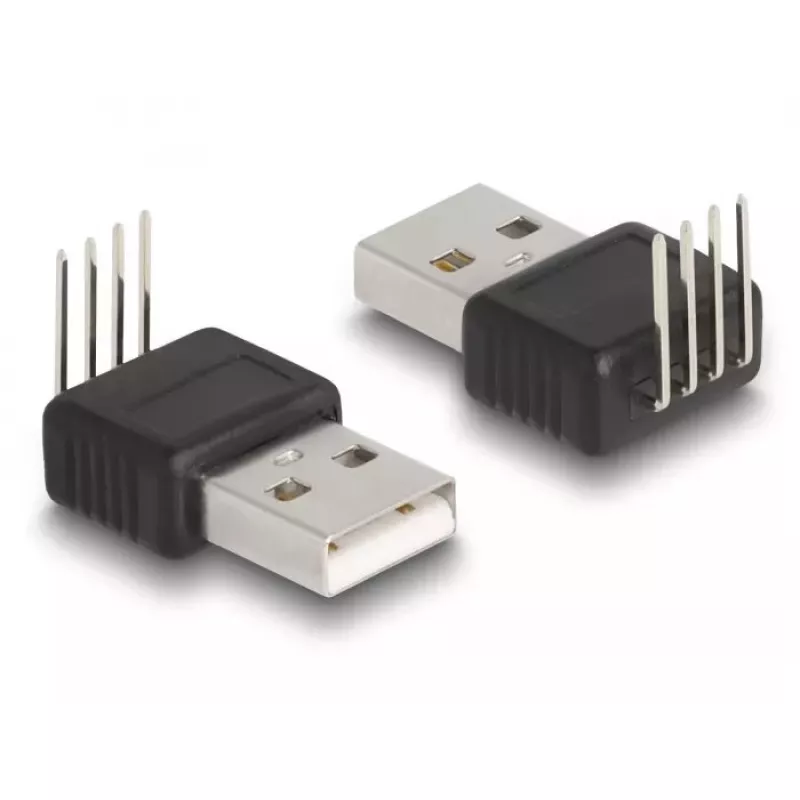

The DeLOCK Adapter USB 2.0 Type-A male to 4 pin 90° angled is a compact through-hole mounted USB connector designed to link USB 2.0 Type-A devices via a four‑pin interface. It provides a USB 2.0 output with a right‑angle male Type‑A plug in a black housing and measures approximately 16 mm (W) × 27 mm (D) × 8 mm (H). The adapter is intended for installations where a low-profile, angled USB connection is required and operates at standard USB 2.0 power levels.

Advantages

The adapter offers a space-saving 90° angled design suitable for tight or shallow enclosures, a through-hole mounting form for secure PCB installation, and compatibility with standard USB 2.0 Type‑A connections. It supports a 5 V output voltage and up to 0.5 A current, and comes in a black finish to match common PCB and enclosure aesthetics.

Suitable for

• Connecting USB 2.0 Type‑A devices to a PCB using a through‑hole mount
• Applications requiring a low‑profile or right‑angle USB connection

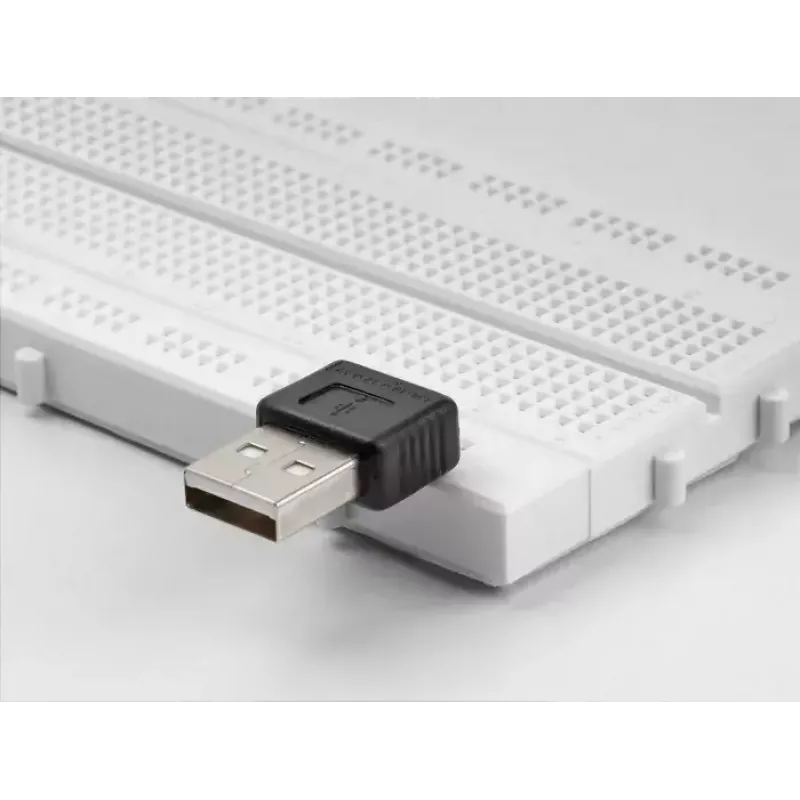

• Prototypes and small electronic devices with limited interior depth

Key specifications

• Interface: USB 2.0 Type‑A male (4 pin)
• Mounting type: Through‑hole
• Dimensions (W×D×H): 16 mm × 27 mm × 8 mm
• Output voltage: 5 V
• Output current: 0.5 A
• Colour: Black
• Brand: DELOCK, MPN: 66951, EAN: 4043619669516

How to use

Insert the through‑hole pins into the designated PCB holes and solder according to standard PCB assembly practices, ensuring correct orientation for the right‑angle Type‑A connector. Use the connector to mate with a standard USB 2.0 Type‑A receptacle or cable; observe the device's power requirements and connection direction when installing.

Recommendations

Confirm that the target device accepts USB 2.0 Type‑A connections and that the 5 V / 0.5 A rating meets the power needs. When soldering, avoid prolonged heat exposure to the plastic housing and verify mechanical stability after assembly.
