DeLOCK anténový kábel SMA 90° PCB konektor samica koaxiálny kábel 0,15 m I-PEX MHF1 čierny zlatý

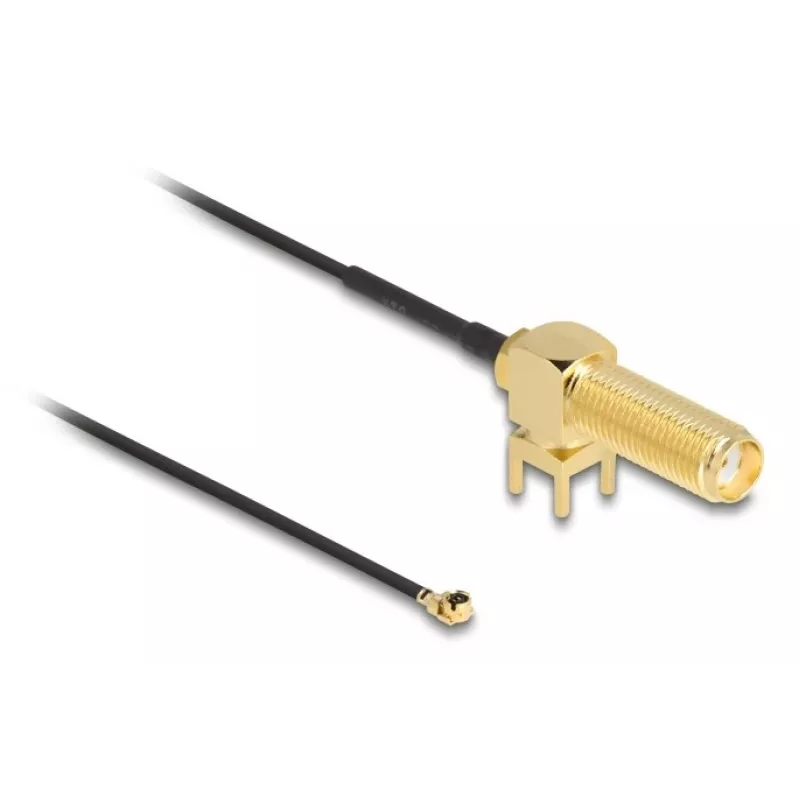

The DeLOCK Antenna Cable SMA 90° PCB jack bulkhead coaxial cable 0.15 m I-PEX MHF1 in black and gold is designed to connect radio frequency components on printed circuit boards. It combines a 90° SMA bulkhead jack with an I-PEX MHF1 plug on a short 0.15 m coaxial lead to provide a compact connection for RF signal routing and external antenna attachment.

Advantages

This cable offers a space-saving 90° SMA bulkhead jack for mounting on panels or enclosures and a lightweight I-PEX MHF1 connector for direct PCB connection. The 0.15 m length reduces signal loss in short interconnects, and the gold-plated contact surfaces improve corrosion resistance and electrical contact reliability. The black outer jacket provides mechanical protection and a discreet appearance.

Suitable for

• Connecting PCB-mounted radio modules to external antennas
• Bulkhead panel or enclosure antenna feed-throughs
• Short RF interconnects inside devices and prototypes

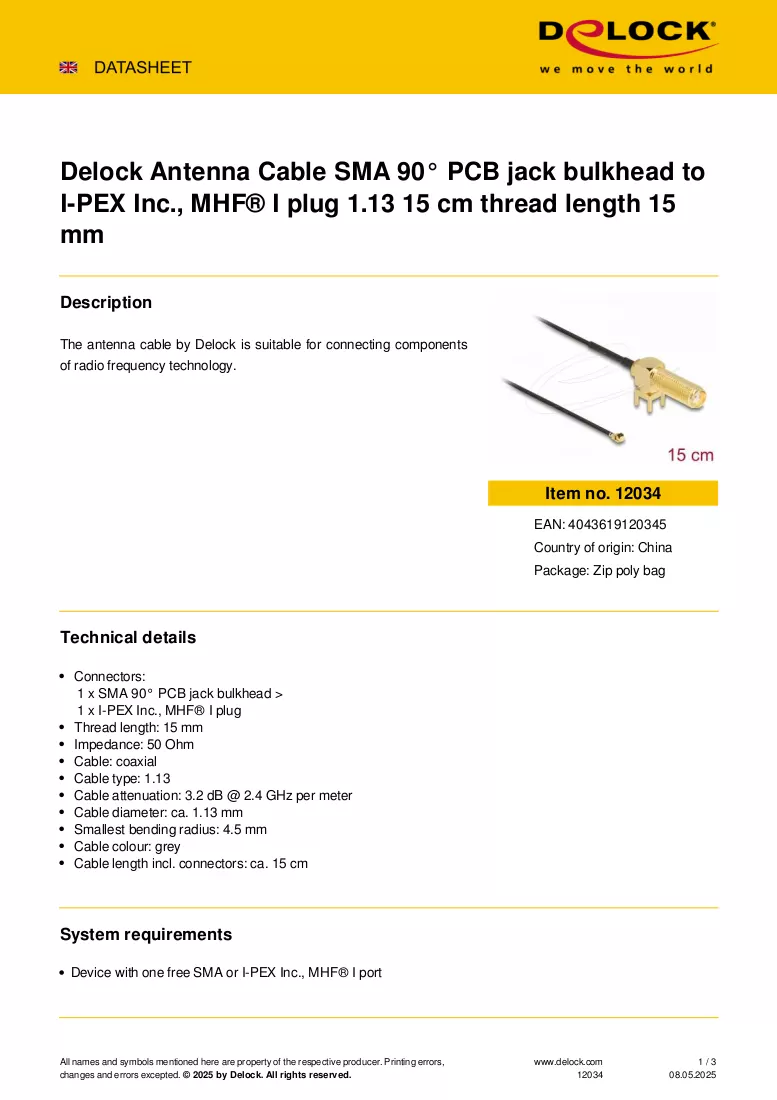

Key specifications

• Brand: DELOCK
• Model / MPN: 12034
• EAN: 4043619120345
• Connector A: SMA 90° bulkhead jack (gold-plated)
• Connector B: I-PEX MHF1 plug
• Cable length: 0.15 m
• Cable type: Coaxial antenna cable
• Color: Black with gold-plated contacts

How to use

Mount the SMA 90° bulkhead jack into the panel or enclosure cut-out and secure it according to the mounting hardware. Plug the I-PEX MHF1 connector onto the corresponding PCB socket of the radio module or RF board. Ensure connectors are aligned and seated without excessive force. Route the 0.15 m cable to avoid sharp bends and mechanical stress.

Recommendations

For best RF performance, use this short coaxial cable for near-board connections and panel feed-throughs only. Avoid repeated mating cycles on the I-PEX MHF1 connector and prevent sharp bends or crushing of the cable. Verify compatibility with the PCB socket and panel cut-out before installation.
