Delock axiálny ventilátor 48 V DC, 92 x 92 x 25 mm s 2-pin konektorom ventilátora, čierny

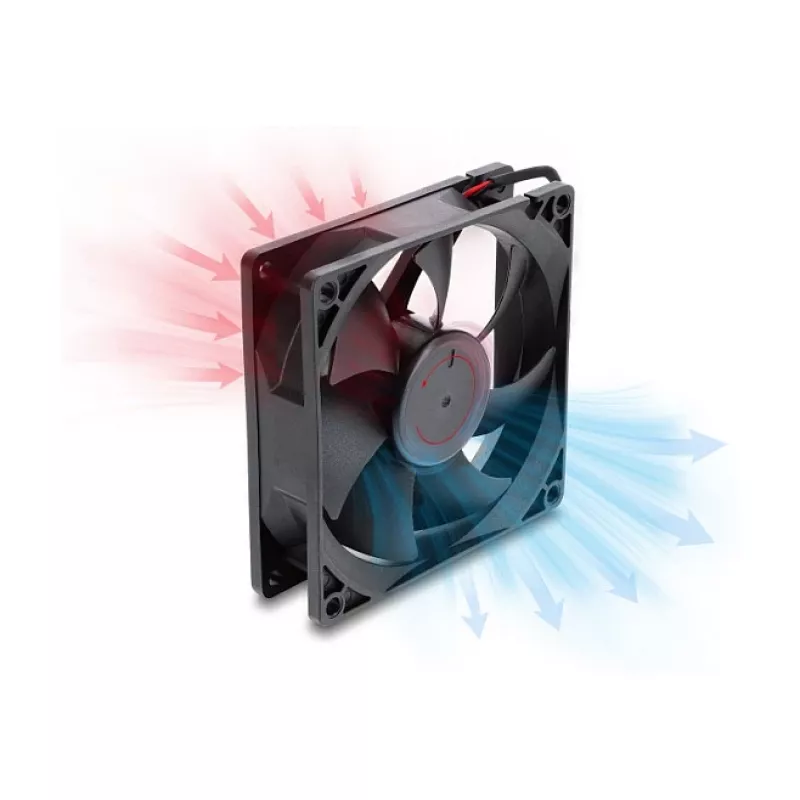

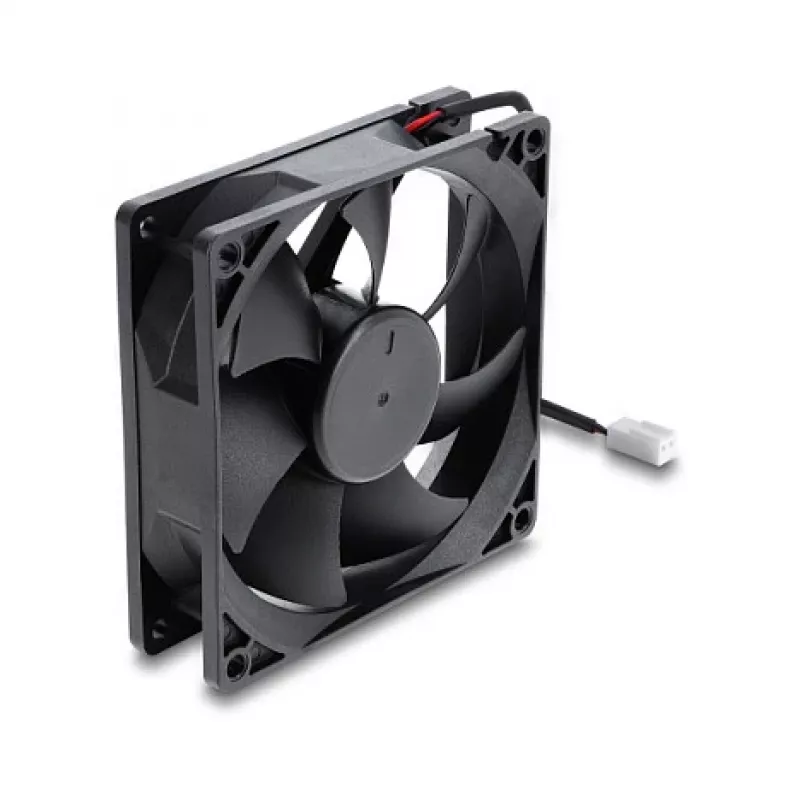

For 48 V DC systems that demand dependable cooling without excessive noise, this Delock axial fan delivers a balanced mix of airflow, pressure, and longevity. Its 92 mm square frame and 25 mm depth match the most common fan mounts in power supplies, inverters, and telecom enclosures, while the 30 cm cable with a 2-pin connector simplifies integration into existing wiring harnesses. The black PBT frame and impeller resist heat and chemicals, making it suitable for industrial environments where lesser plastics would degrade.

Highlights

• 48 V DC nominal voltage for industrial power rails
• 78 m³/h (45.9 CFM) airflow at 2500 RPM
• Quiet operation at just 38.5 dB(A)
• Sleeve bearing with 50,000 hours MTBF
• Operating temperature range from -10 °C to 70 °C

In daily use

The fan is a drop-in replacement for standard 92 mm fans. Its 30 cm cable with 2-pin connector allows straightforward wiring. It is ideal for cooling power supplies, inverters, and communication equipment. The black PBT frame and impeller provide durability and chemical resistance.

Full specifications

• Fan type: Axial fan

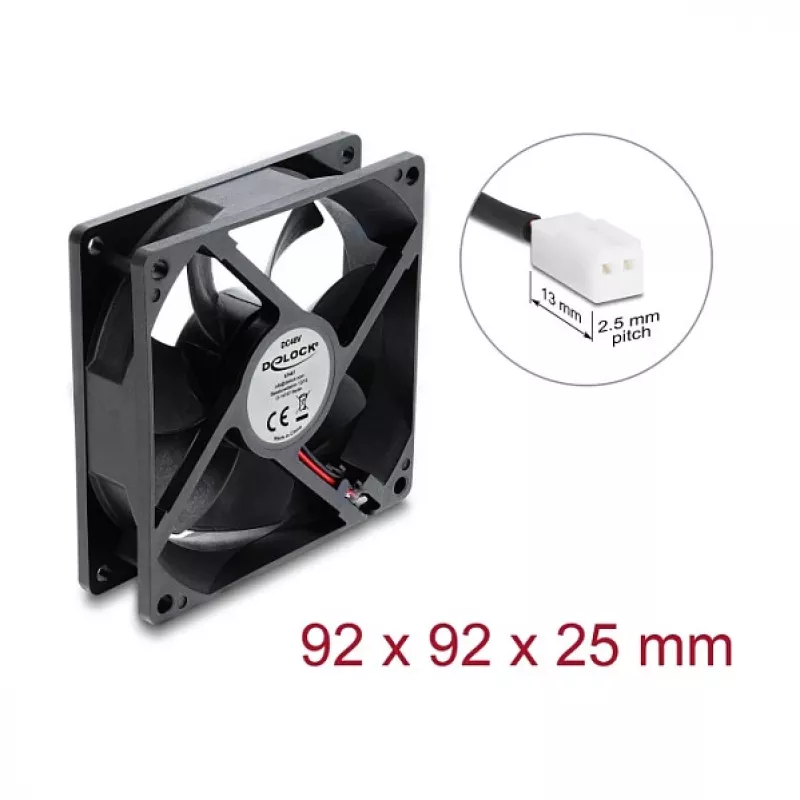

• Dimensions: 92 x 92 x 25 mm
• Operating voltage: 48 V DC
• Connector: 2-pin
• Airflow: 78 m³/h (45.9 CFM)
• Noise level: 38.5 dB(A)
• Fan speed: 2500 RPM
• Current consumption: 0.08 A
• Power consumption: 3.84 W
• Bearing: Sleeve bearing
• Static pressure: 3.0 mmH₂O
• Frame material: PBT
• Impeller material: PBT
• Cable length: 30 cm
• Colour: Black
• MTBF: 50,000 hours at 40 °C
• Operating temperature: -10 °C to 70 °C

Final note

Whether you are maintaining industrial equipment or building a custom cooling solution, this Delock fan provides the reliability and performance needed for continuous operation.
