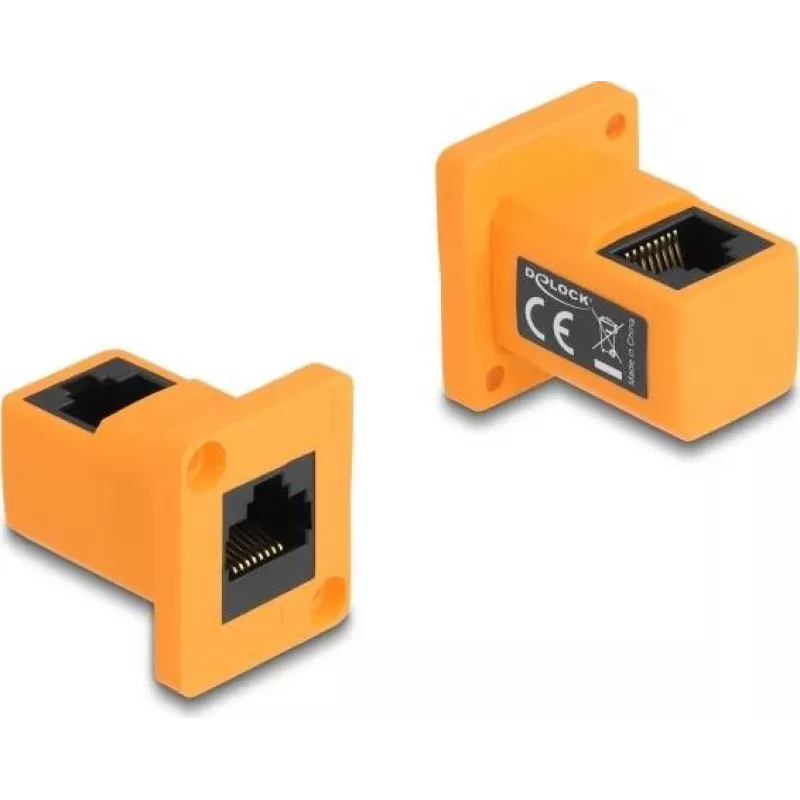

DeLOCK D-Type modul RJ45 konektor samica na samica 90° zahnutý oranžový

The DeLOCK D-Type Module RJ45 jack to jack 90° angled in orange is designed for installation into panels or cases with D-type openings for XLR jacks. Its compact, right-angled RJ45-to-RJ45 connection saves space and enables integration of networked digital equipment into professional audio and AV systems where rear-panel space is limited.

Advantages

The module provides a 90° angled RJ45 jack-to-jack connection that reduces cable strain and helps route cables in confined spaces. Its D-type form factor allows mounting in standard D-type/XLR-style panel cutouts so you can add a network pass-through without modifying chassis layouts. The orange colour improves visibility for quick identification of network ports.

Suitable for

Key specifications

How to use

Install the module into a compatible D-type or XLR-style panel opening and secure it according to the enclosure manufacturer’s instructions. Connect an RJ45 patch cable to each side of the module to create a right-angled network pass-through. Ensure cable routing does not exceed the recommended bend radius for the attached cables.

Recommendations

Use shielded or appropriate-rated Ethernet cabling for the required network performance, and verify compatibility with panel cutout dimensions before installation. Avoid excessive torque when fastening the module to prevent damage to the housing or connectors.
