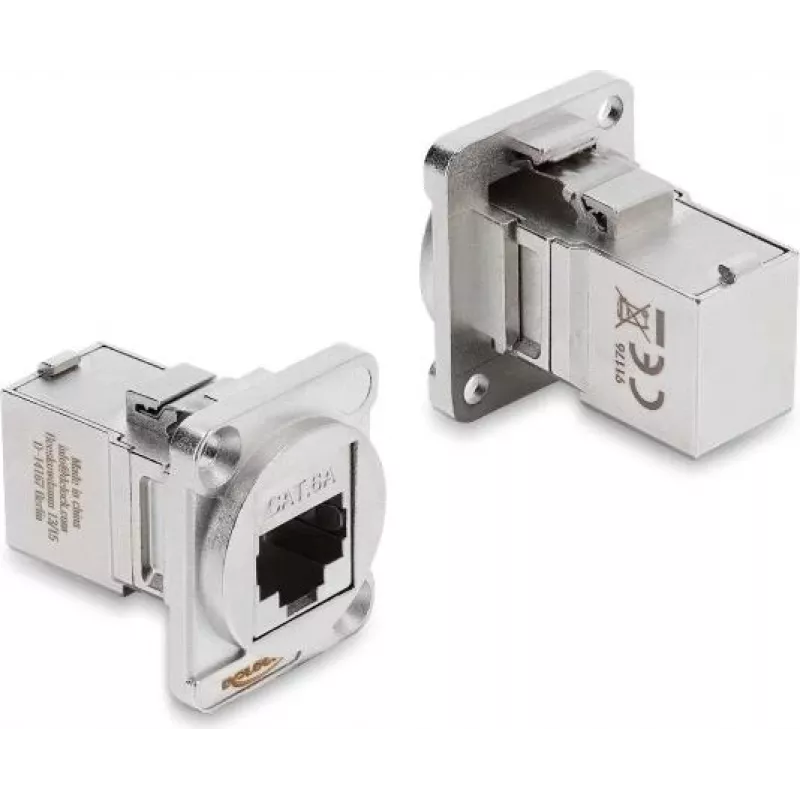

Delock D-Type modul RJ45 konektor samica na samicu 90° zahnutý Cat.6A strieborný

This D-type module delivers a reliable RJ45 female-to-female connection in a space-saving 90° angled design, engineered for Cat.6A networks with data rates up to 10 Gbps. Its shielded metal housing and gold-plated contacts ensure stable, high-speed transmission in professional installations.

Advantages

The 90° angled orientation allows efficient cable routing in tight spaces, while the shielded construction minimizes electromagnetic interference. The module supports both solid and stranded conductors, offering flexibility for various cabling setups.

Suitable for

• Network patching in control cabinets and multimedia panels
• Rack integration where space-saving angled connections are needed
• 10GBASE-T Ethernet applications requiring Cat.6A performance
• Front or rear panel mounting in D-type cutouts

Key specifications

• Connector type: RJ45 female to RJ45 female, 90° angled
• Category: Cat.6A (500 MHz bandwidth)
• Shielding: Shielded (STP/FTP), metal housing
• Data transfer rate: Up to 10 Gbps
• Contact plating: Gold-plated (3 µm)
• Mating cycles: > 750
• Panel cutout diameter: 24 mm (D-type standard)
• Operating temperature: -10 °C to 60 °C
• Standards: TIA/EIA 568-C.2, ISO/IEC 11801, EN 50173

Recommendations

For optimal performance, pair with Cat.6A shielded patch cables and ensure proper grounding of the metal housing. Ideal for structured cabling systems in commercial and industrial environments.
