DeLOCK Easy 45 DisplayPort 4K 60 Hz modul s DC napájaním 2,1 x 5,5 mm

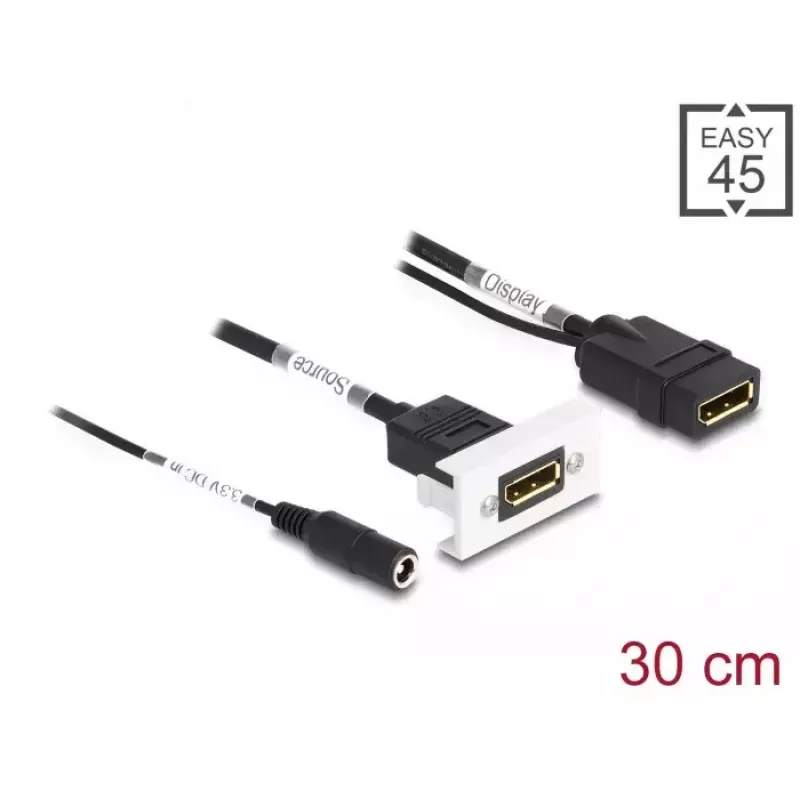

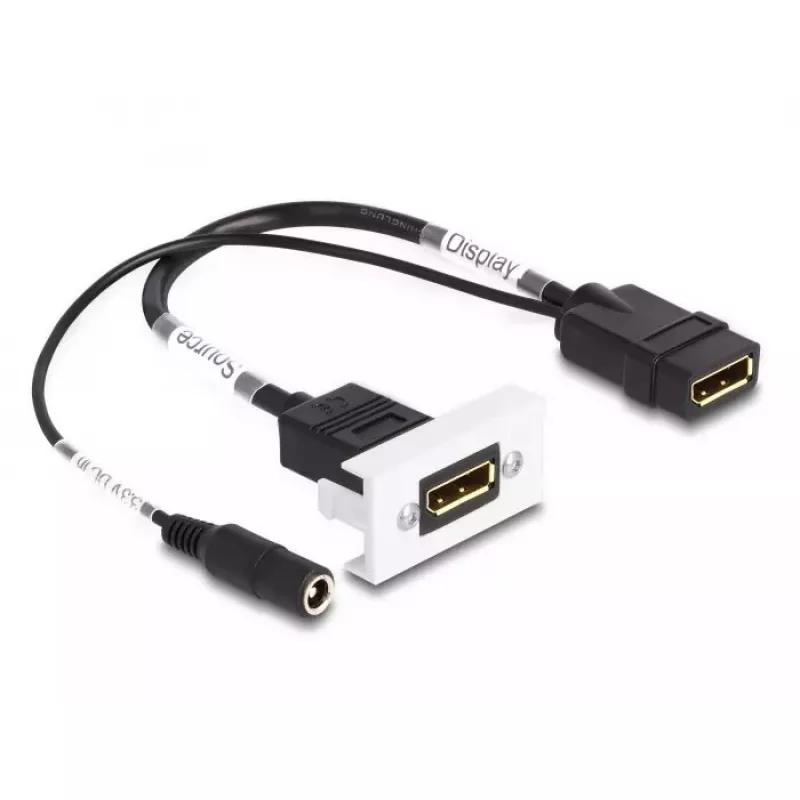

The DeLOCK Easy 45 DisplayPort 4K 60 Hz Module with DC feed provides a DisplayPort female connector in a compact, snap-in module. It supports up to 4K resolution at 60 Hz and includes a 0.3 m cable; an additional DC connector (2.1 x 5.5 mm) allows powering the module to ensure stable signal conversion when used with active adapters. The module is available in black and white and is intended for easy installation in compatible housings.

Advantages

The module supplies a DisplayPort female port while offering an integrated DC feed for external power. Its snap-in mechanism enables tool-free installation and secure fixation of the cover. Included 0.3 m cable simplifies connection inside enclosures and the support for 4K@60 Hz maintains high-resolution output when paired with appropriate devices and active adapters.

Suitable for

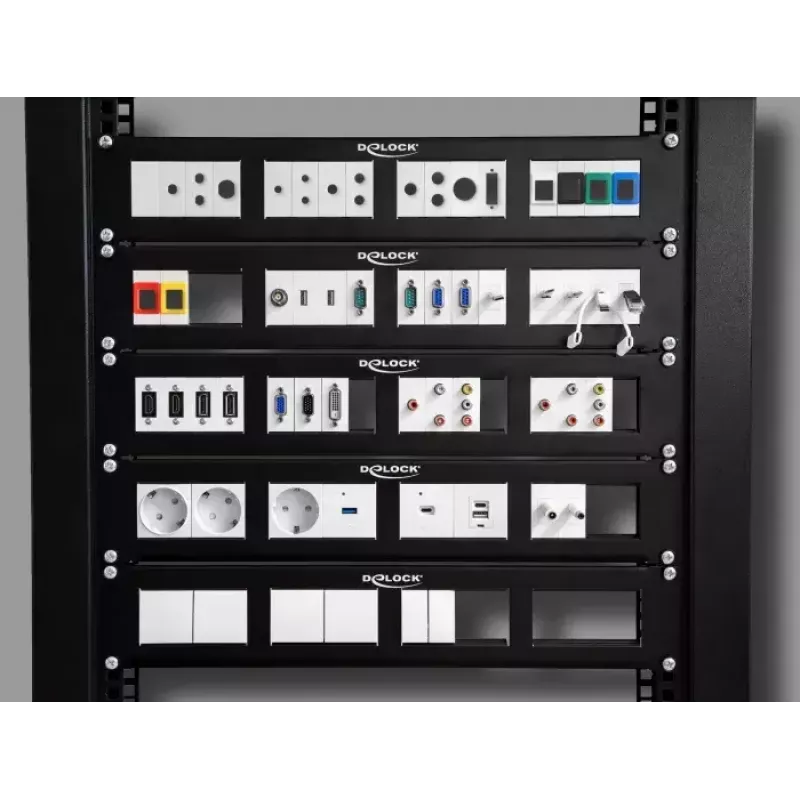

• Integrating a DisplayPort female port into enclosures or panel setups
• Video setups requiring 4K at 60 Hz with active adapters
• Installations that need an externally powered DisplayPort interface via 2.1 x 5.5 mm DC

Key specifications

• Brand: DELOCK
• Model / MPN: 81385
• EAN: 4043619813858
• Connector: DisplayPort female
• DC feed: 2.1 x 5.5 mm
• Cable length: 0.3 m
• Resolution support: up to 4K @ 60 Hz
• Product colour: Black, White

How to use

Insert the module into a compatible Easy 45 opening until the snap-in mechanism secures the cover. Connect the included 0.3 m DisplayPort cable to the internal DisplayPort source and, if required, attach an external power supply to the 2.1 x 5.5 mm DC connector. Use active adapters where necessary to guarantee stable power and proper signal conversion for 4K@60 Hz operation. The module can be removed by disengaging the snap-in mechanism without tools.

Recommendations

For reliable 4K@60 Hz performance, use compatible active adapters and a stable DC power supply via the 2.1 x 5.5 mm connector. Avoid exposing the module to liquids and ensure correct orientation when inserting into enclosures to prevent connector damage.
