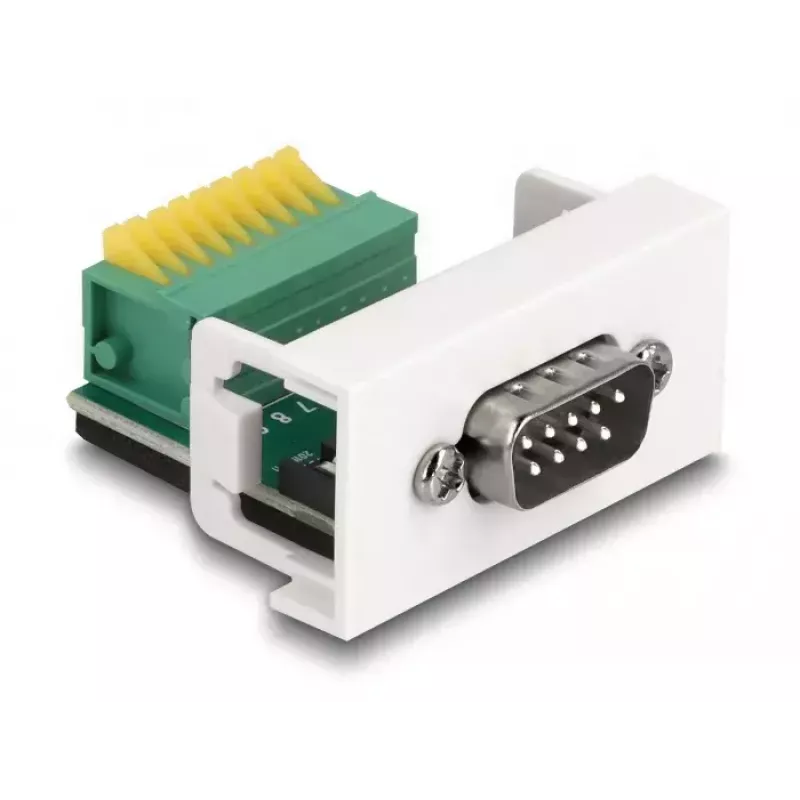

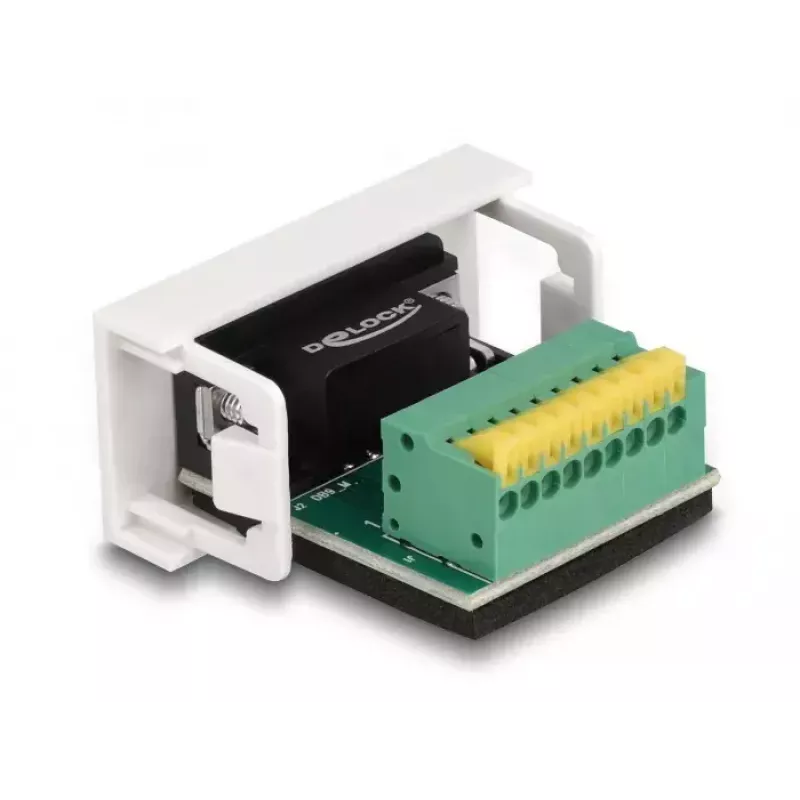

DeLOCK Easy 45 modul D-Sub 9-polový konektor samec na svorkovnicu 22,5 x 45 mm

The DeLOCK Easy 45 Module D-Sub 9 pin male to Terminal Block (22.5 x 45 mm) provides a compact interface for converting a D-Sub male connection to a screw terminal block. The module features a reliable snap-in mechanism that keeps the unit securely in place and allows for quick removal when needed. Its white housing and compact dimensions make it suitable for installations where space is limited.

Advantages

This Easy 45 module offers a straightforward conversion from a D-Sub 9 pin male connector to a terminal block, simplifying wiring tasks without additional adapters. The snap-in fixing ensures firm retention in compatible frames while permitting easy replacement or service. The compact 22.5 x 45 mm form factor and neutral white colour support tidy, space-efficient installations.

Suitable for

• Connecting D-Sub 9 pin male interfaces to field wiring via a terminal block
• Panel or rail-mounted modules in control cabinets and small enclosures
• Applications requiring a compact, removable interface module

Key specifications

• Brand: DELOCK
• Model / MPN: 81408
• EAN: 4043619814084
• Connector: D-Sub 9 pin male to terminal block
• Dimensions: 22.5 x 45 mm
• Colour: White

How to use

Insert the module into a compatible Easy 45 frame or mounting slot until the snap-in mechanism engages. Connect the D-Sub 9 pin cable to the module's male connector and secure the field wires to the terminal block using an appropriate screwdriver. To remove the module, release the snap-in latch and pull the unit out of the frame.

Recommendations

Ensure the module is used in matching Easy 45 frames or housings and verify wire termination torque to prevent loose connections. Avoid exposing the module to excessive moisture or mechanical stress.
