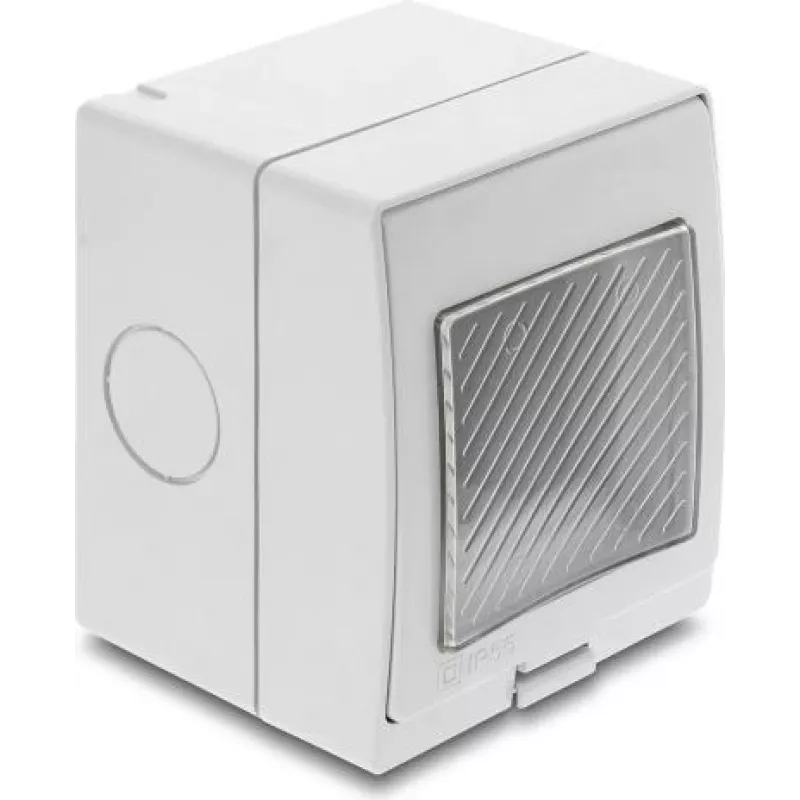

Delock Easy 45 nástenné puzdro IP55 vodotesné 2 porty (81623)

The Delock Easy 45 Surface Mount Housing IP55 Waterproof 2 Port is a robust and weather-resistant enclosure designed for indoor and outdoor use. It accommodates two Easy 45 modules (45 x 45 mm) and provides reliable protection against dust and water jets, making it ideal for demanding environments.

Advantages

IP55 rated protection ensures durability against water and dust ingress. The housing features six M20/M25 knock-outs for flexible cable entry and is made from flame-retardant ABS plastic (UL 94 V-0). Easy screw mounting with external tabs simplifies installation.

Suitable for

• Outdoor network installations
• Industrial environments
• Building automation
• Security camera systems

Key specifications

• Number of Ports: 2
• Module Standard: Easy 45 (45 x 45 mm)
• Mounting Type: Surface Mount
• IP Protection Rating: IP55
• Housing Material: ABS Plastic
• Color: Light Grey (RAL 7035)
• Cable Entry: 6 x M20/M25 Knock-outs (2x top, 2x bottom, 1x each side)
• Operating Temperature: -20 °C to 70 °C
• Relative Humidity: 10 - 90 % (non-condensing)
• Compatibility: Delock Easy 45 modules and other 45x45mm standard modules
• Application Environment: Indoor / Outdoor
• Flame Retardancy: UL 94 V-0
• Installation: Screw mounting (external tabs)
• Cover Fastening: Screws
• Sealing: Silicone gasket

Recommendations

For optimal performance, use with Delock Easy 45 modules. Ensure proper sealing of unused knock-outs to maintain IP55 rating.
