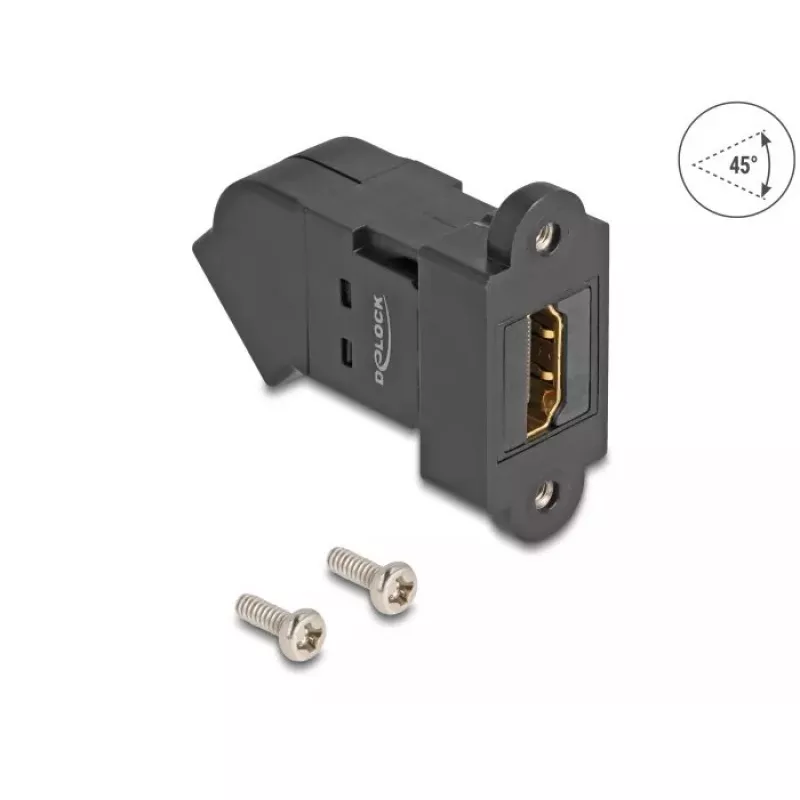

DeLOCK HDMI panelový modul samica na samicu 45° zahnutý 8K 60 Hz čierny

The DeLOCK HDMI panel mount adapter is a HDMI female to HDMI female 45° angled connector designed to extend HDMI connections and enable installation on panels, housings or switch cabinets. It supports up to 8K resolution at 60 Hz and is finished in black. The compact dimensions (40 mm width × 46 mm depth × 24 mm height) and angled connection make it suitable for tight spaces and equipment with limited clearance.

Advantages

This adapter provides a secure panel-mounted HDMI extension with a 45° angled connection to reduce strain on cables and save installation space. It supports high-resolution video up to 8K at 60 Hz and is supplied in black to match common AV and IT equipment. The mounting holder allows installation on panels, housings or switch cabinets for a fixed, tidy connection point.

Suitable for

• Extending HDMI connections through panels or cabinets
• Installing HDMI connection points in AV racks and housings
• Use where space is limited or cable routing requires an angled connector

Key specifications

• Connector: HDMI female to HDMI female
• Angle: 45°
• Resolution support: up to 8K at 60 Hz
• Colour: Black
• Dimensions (W × D × H): 40 × 46 × 24 mm
• Brand: DELOCK, MPN: 67156, EAN: 4043619671564

How to use

Mount the adapter to a panel, housing or switch cabinet using the integrated mounting holder. Connect an HDMI cable to each female HDMI port—one to the device-side cable and the other to the panel-side cable—to extend or redirect the HDMI signal. Ensure connectors are fully seated and routed to avoid sharp bends near the angled connector.

Recommendations

For reliable signal transmission at 8K/60 Hz, use high-quality HDMI cables rated for the required bandwidth and avoid excessive cable lengths or severe bends near the connector. Secure the adapter to the mounting surface to prevent movement and strain on attached cables.
