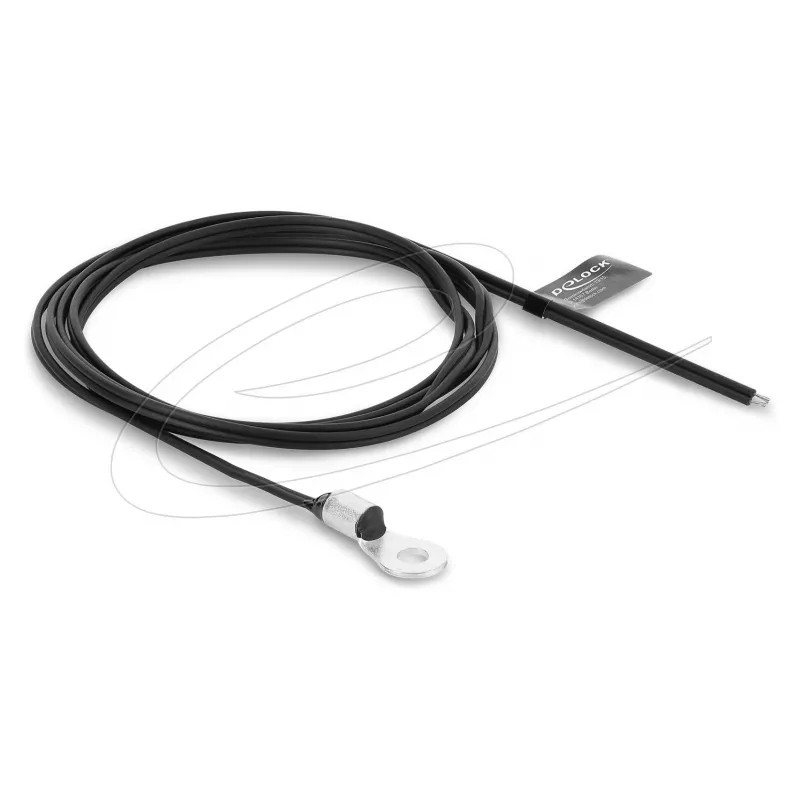

Delock kábel teplotného senzora M4 s 2 otvorenými koncami kábla XLPE plochý B25/50 3950K 1 m

Accurate temperature monitoring from -40 °C to 105 °C with a precise NTC thermistor (10 kΩ at 25 °C, B25/50 = 3950 K ±1%) makes this sensor cable a reliable choice for demanding thermal management. The M4 threaded probe ensures secure mounting, while the flat XLPE cable resists abrasion and chemicals.

Overview

The Delock 91804 temperature sensor cable is engineered for applications requiring precise and stable temperature measurements. It features an NTC thermistor with a resistance of 10 kΩ at 25 °C and a B-value of 3950 K, ensuring consistent performance across a wide temperature range from -40 °C to 105 °C. The sensor is housed in an M4 threaded metal probe, which allows for easy and secure installation in threaded holes or brackets. The cable is a flat design with XLPE (cross-linked polyethylene) insulation, offering excellent mechanical strength, chemical resistance, and thermal stability. With two open cable ends, it provides flexible connectivity for integration into custom circuits or systems.

What stands out

• High accuracy: ±1% tolerance on resistance and B-value for reliable measurements.
• Wide operating range: -40 °C to 105 °C suits harsh environments.
• Robust construction: M4 threaded probe and XLPE flat cable withstand mechanical stress.
• IP67 rating: Protection against dust and temporary immersion.
• Flexible integration: Open cable ends allow direct connection to your circuitry.

Technical details

• Sensor type: NTC thermistor
• Resistance at 25 °C: 10 kΩ ±1%
• B-value (25/50 °C): 3950 K ±1%
• Measurement range: -40 °C to 105 °C

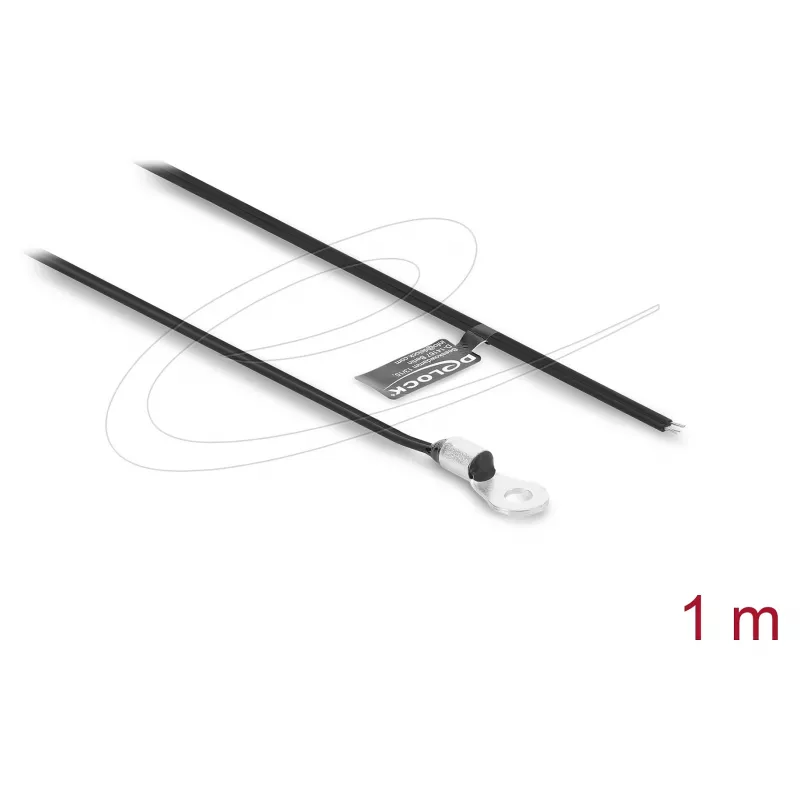

• Cable length: 1 m
• Cable type: Flat cable
• Cable insulation material: XLPE (cross-linked polyethylene)
• Cable dimensions: approx. 2.5 x 1.0 mm
• Connector type: 2 x open cable ends
• Sensor probe type: M4 threaded probe
• Sensor thread length: approx. 10 mm
• Sensor thread diameter: approx. 4 mm
• Ingress protection rating: IP67
• Colour: Black

Our verdict

With its precise NTC thermistor, rugged M4 probe, and durable XLPE flat cable, the Delock 91804 is an excellent choice for industrial and DIY temperature sensing projects. The IP67 rating and wide temperature range ensure reliable operation in challenging conditions.
