Delock Káblový konektor pre Keystone moduly a spojky s M32 x 1,5 mm závitom, IP68 prachotesný a vodotesný

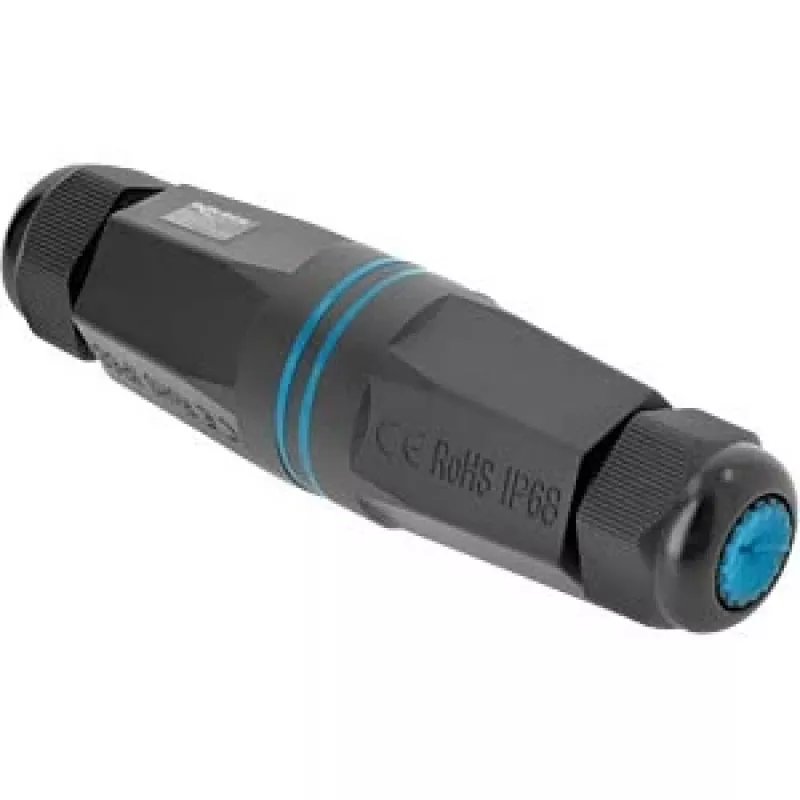

Outdoor and industrial network installations often fail at the junction points where cables meet panels or enclosures. Moisture, dust, and mechanical stress can degrade connections over time, leading to intermittent failures or complete signal loss. The Delock 90970 cable connector solves this by providing a robust, IP68-rated sealing solution for Keystone modules and couplers with an M32 x 1.5 mm thread. This connector ensures that your data connections remain protected even in the harshest environments, from factory floors to outdoor cabinets.

Who is it for

This cable connector is ideal for network installers, system integrators, and maintenance technicians who need to route Ethernet or other data cables through panels, enclosures, or walls while maintaining a dust-tight and waterproof seal. It is perfect for industrial automation, outdoor surveillance, marine applications, and any setting where environmental protection is critical.

Main features

• IP68 protection rating: completely dust-tight and resistant to continuous immersion in water, ensuring reliable performance in extreme conditions.
• Compatible with standard Keystone modules and couplers, allowing easy integration into existing network infrastructure.
• M32 x 1.5 mm thread fits standard panel cut-outs with a diameter of 32.2–32.5 mm, simplifying installation.
• Durable polyamide (PA66) housing with EPDM sealing ring provides excellent resistance to chemicals, UV radiation, and temperature extremes from -40 °C to 100 °C.

Specifications

• Product Type: Cable Gland / Cable Connector
• Compatibility: Keystone Modules and Couplers
• Thread Size: M32 x 1.5 mm
• Protection Rating: IP68 (Dust and Waterproof)
• Material: Polyamide (PA66)
• Sealing Ring Material: EPDM
• Operating Temperature: -40 °C to 100 °C
• Colour: Black
• Max. Panel Thickness: 5 mm
• Mounting Hole Diameter: 32.2 - 32.5 mm
• Fire-resistance Class: UL 94 V-2
• Halogen-free: Yes
• Application Environment: Industrial, Outdoor, Harsh Environments
• Features: Secure connection, Environmental protection
• Number of Components: 3 (Gland body, nut, sealing ring)

Tips

For best results, ensure the panel cut-out is clean and free of burrs before installation. Tighten the gland nut to the recommended torque to achieve the IP68 seal. This connector is compatible with a wide range of Keystone jacks and couplers, making it a versatile addition to any network installer's toolkit.
