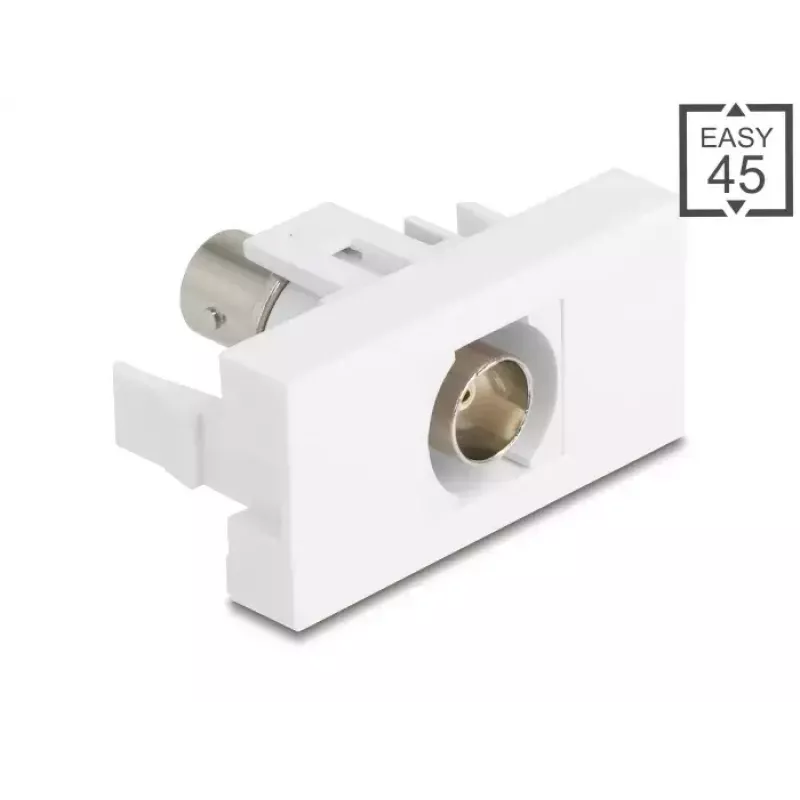

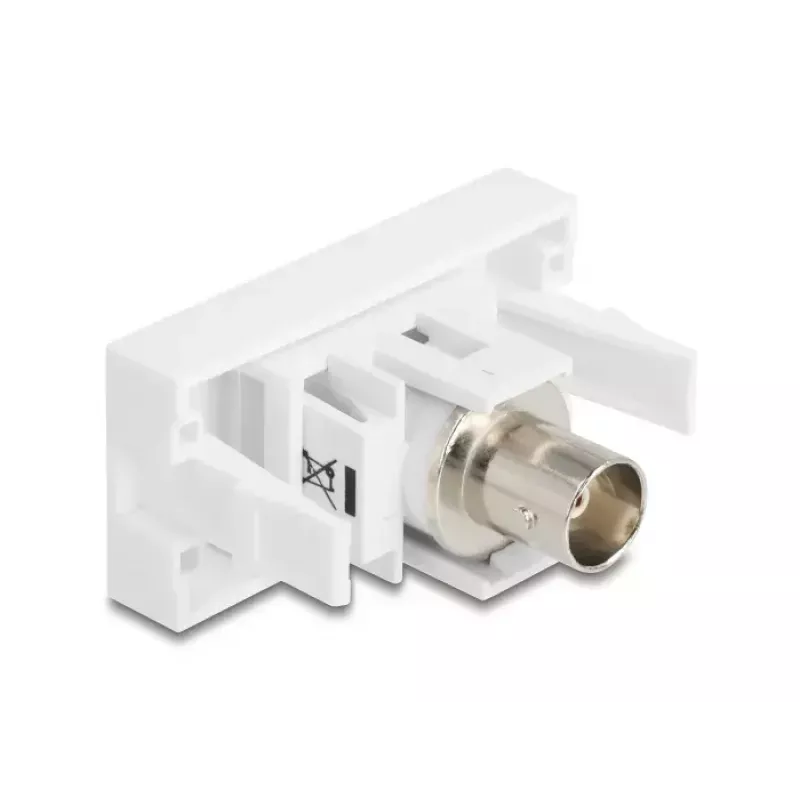

DeLOCK Keystone modul 90855 BNC BNC biely 22,5 mm 45 mm 33 mm

The DeLOCK keystone module 90855 provides a BNC to BNC antenna/video connector in a compact insert compatible with the Easy 45 modular system. The module has a snap-in mechanism for secure mounting and easy removal, and is intended for integration into standardized module holders, cable ducts or other Easy 45 installations. Its white housing and compact dimensions (22.5 mm width, 45 mm depth, 33 mm height) make it suitable for various AV and broadcasting connection points.

Advantages

The module offers reliable BNC connections for video and audio signals in a standardized keystone format, ensuring compatibility with Easy 45 holders and similar mounting solutions. The snap-in design simplifies installation and replacement. The compact white enclosure allows discreet integration into wall outlets, patch panels or distribution boxes.

Suitable for

Key specifications

How to use

Insert the module into a compatible Easy 45 module holder or cable duct until the snap-in mechanism secures it. Connect BNC cables to the front and rear BNC connectors as required for your setup. To remove the module, press the retaining latch or release mechanism (depending on the holder) and pull the module out carefully.

Recommendations

Use suitable BNC cables and ensure connectors are properly tightened to maintain signal integrity. Install modules in compliance with local installation standards and switch off powered equipment before connecting or disconnecting cables.
