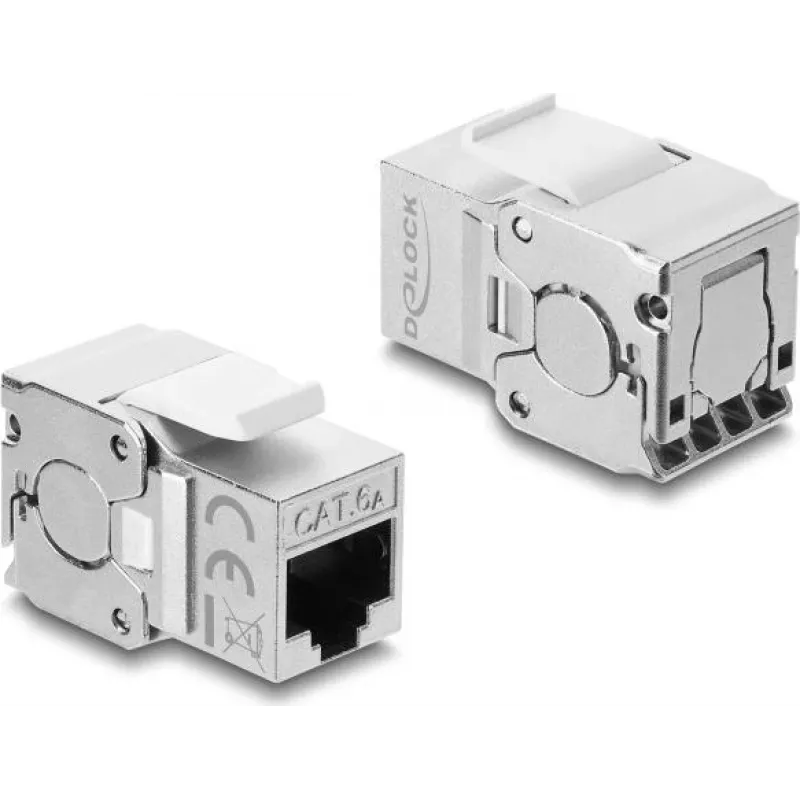

Delock Keystone modul RJ45 konektor samica na LSA Cat.6A tienený bez nástroja

Network installers and IT technicians often need a fast, reliable way to terminate shielded Cat.6A cabling at wall outlets or patch panels. This Delock Keystone Module provides a tool-free RJ45 jack on the front and an LSA punchdown block on the rear, allowing quick, solder-free installation in standard keystone openings. Its zinc die-cast housing and full shielding ensure signal integrity even in high-interference environments, making it a solid choice for professional network builds.

Key specifications

• Front connector: RJ45 jack, 8P/8C, gold-plated contacts (3µ)
• Rear connector: LSA (IDC) terminal block, tool-free termination
• Category: Cat.6A, supports up to 500 MHz bandwidth
• Shielding: Shielded (FTP/STP), zinc die-cast housing
• Compatibility: Standard keystone port (19.2 x 14.9 mm)
• Wire gauge: AWG 22–26, solid or stranded
• Wiring standard: TIA/EIA 568A/B
• PoE support: IEEE 802.3af/at (PoE, PoE+)
• Operating temperature: -10 °C to 60 °C
• Compliance: ISO/IEC 11801 Ed.2.2, EN 50173-1, ANSI/TIA-568-C.2

Why choose it

The tool-free LSA termination saves time and reduces installation errors, while the shielded zinc die-cast body protects against EMI/RFI. Gold-plated contacts ensure low contact resistance and long-term reliability, even with frequent insertions. This module is engineered to meet Cat.6A performance, making it future-proof for 10 Gigabit Ethernet applications.

Ideal use cases

• Terminating shielded Cat.6A cabling in wall outlets and floor boxes
• Building high-density patch panels in data centres
• Upgrading existing network infrastructure to 10G speeds
• Office and industrial environments with electromagnetic interference

Good to know

The module snaps into any standard keystone opening, and its compact design allows for side-by-side mounting in multi-port faceplates. For best performance, use with shielded Cat.6A cable and ensure proper grounding of the shielded system.
