Delock M12 adaptér D-kódovaný 4-pin konektor samica na RJ45 konektor samica panelová montáž 90° zahnuté

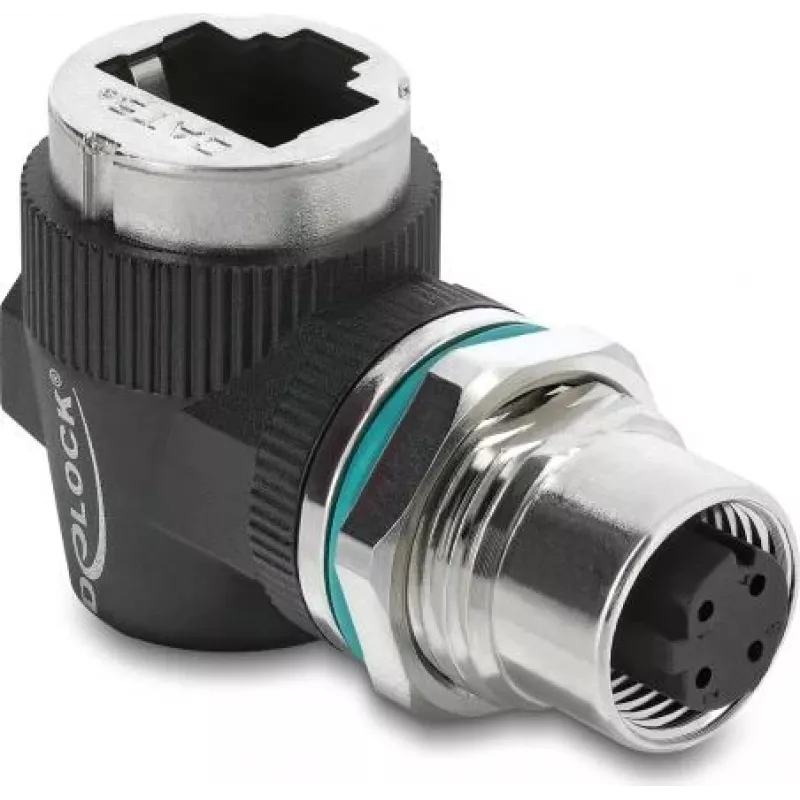

The Delock M12 Adapter D-coded 4 Pin Female to RJ45 Female Panel Mount 90° Angled (90665) is a robust industrial adapter designed for reliable Ethernet connections in harsh environments. It converts an M12 D-coded female connector to an RJ45 female connector, allowing easy integration of standard RJ45 cabling into M12-based systems. The 90° angled design saves space and simplifies cable routing in tight enclosures.

Advantages

This adapter offers IP67 protection when connected, ensuring dust and water resistance for demanding industrial applications. The nickel-plated brass housing provides durability and corrosion resistance, while gold-plated contacts guarantee reliable signal transmission. The 90° angled orientation reduces strain on cables and connectors, extending service life.

Suitable for

• Industrial Ethernet networks (10/100 Mbps)
• Panel mounting in control cabinets and machinery
• Connecting sensors, actuators, and field devices
• Applications requiring IP67 protection

Key specifications

• Connector 1: M12 D-coded female, 4-pin
• Connector 2: RJ45 female
• Mounting: Panel mount, round, 22 mm hole diameter
• Angle: 90° angled
• IP rating: IP67 (when connected)
• Data rate: 10/100 Mbps
• Housing: Brass, nickel plated
• Contacts: Copper alloy, gold plated
• Insulator: PA66
• Operating temperature: -25 °C to 85 °C
• Max. voltage: 250 V
• Max. current: 4 A
• Shielding: Yes
• Standard: IEC 61076-2-101

Recommendations

For optimal performance, use with shielded RJ45 cables and ensure proper mating to achieve IP67 rating. Suitable for Fast Ethernet applications only.
