DeLOCK M12 konektor A-kódovaný 5-pin konektor samica skrutkový spoj

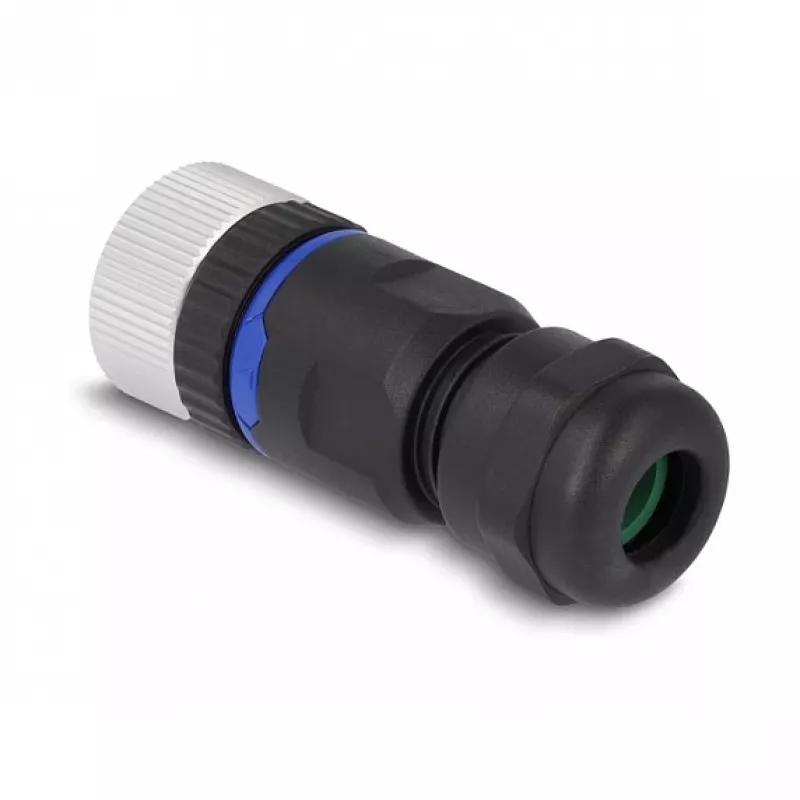

DeLOCK M12 Connector A-coded 5 pin female screw connection is a metal A-coded M12 socket with five contacts designed to join a cable via screw terminals to an M12 connector. The compact metal housing (52 mm width, 20 mm depth) provides a durable interface for applications such as machine control and automation where a secure screw connection is required.

Advantages

The metal construction ensures mechanical robustness and reliable shielding. The A-coding and five-pin configuration support common sensor and actuator wiring schemes. Screw terminal connection allows easy, tool-assisted cable termination and secure contact without crimping or soldering.

Suitable for

• Machine control connections
• Industrial automation interfaces
• Sensors and actuators wiring
• Applications requiring a compact, robust M12 female connector

Key specifications

• Connector type: M12 A-coded
• Gender: 5 pin female

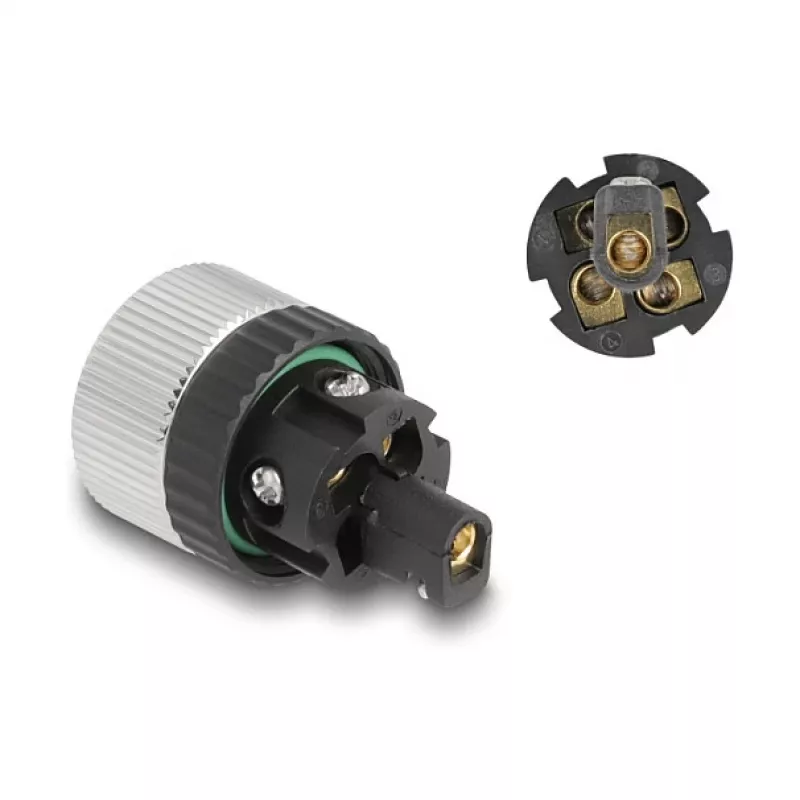

• Termination: screw connection (screw terminal)
• Housing material: metal
• Width: 52 mm
• Depth: 20 mm
• Brand: DELOCK
• MPN: 60537
• EAN: 4043619605378

How to use

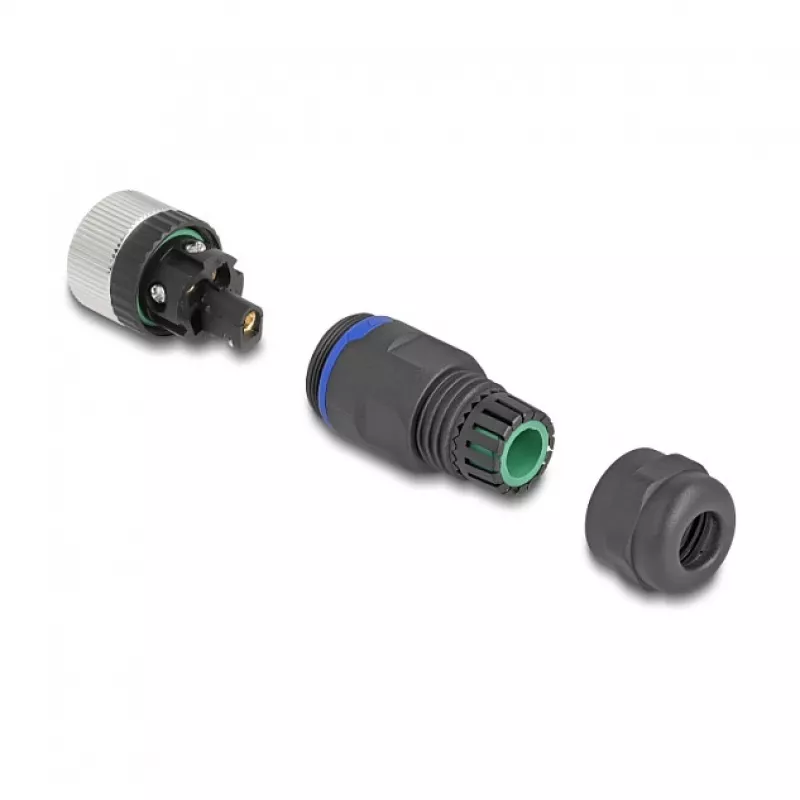

Strip the cable conductors to the appropriate length, insert each conductor into the corresponding screw terminal and tighten the screws to secure the connection. Mount the M12 connector to the mating plug or panel socket and verify correct pin assignment before powering the system. Follow any site-specific grounding and shielding practices.

Recommendations

To maintain reliable performance, ensure correct torque on screw terminals, protect the connector from prolonged exposure to corrosive environments, and confirm A-coding and pinout compatibility with connected devices.
