DeLOCK M12 transfer modul adaptér 4-pólový A-kódovaný konektor samica na 5-pólovú svorkovnicu

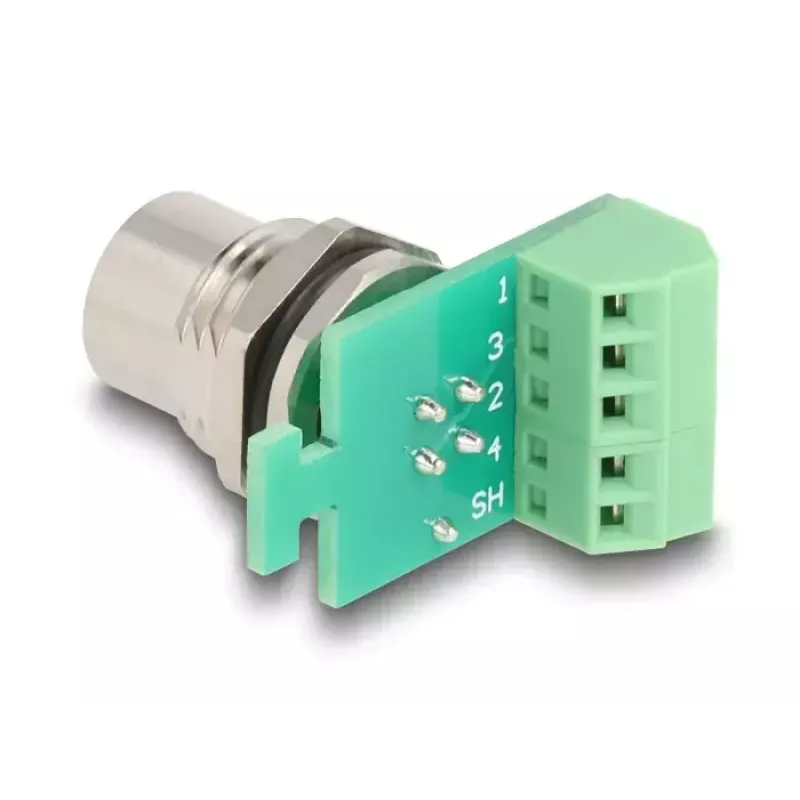

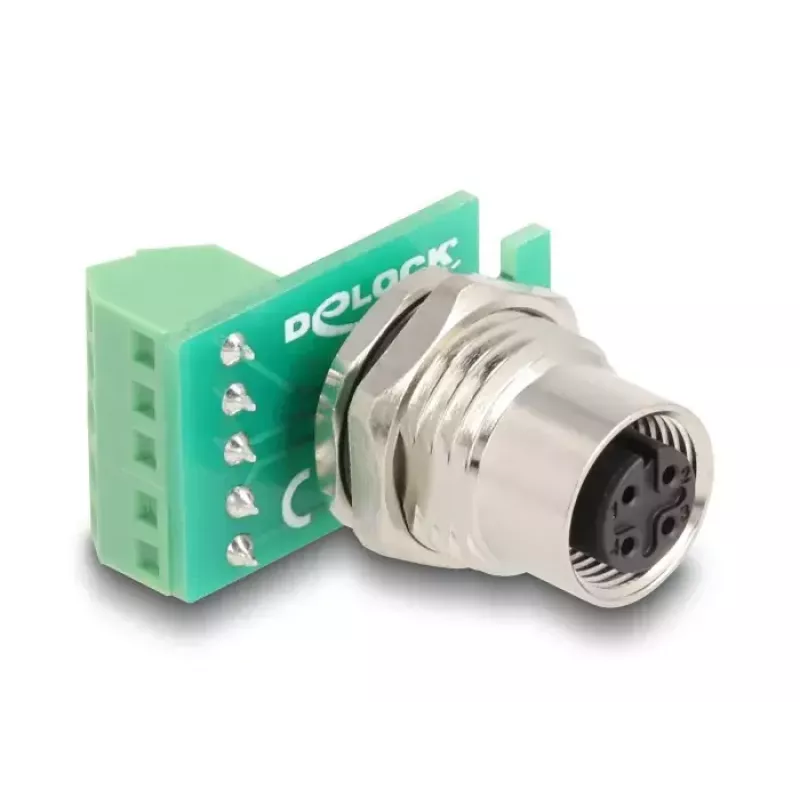

The DeLOCK M12 Transfer Module Adapter provides a secure connection between devices with M12 connectors and electrical circuits using terminal blocks. It features a 4‑pin A‑coded female M12 connector on one side and a 5‑pin removable terminal block on the other, with compact dimensions (32.1 × 34.7 × 18.5 mm) for installation in confined spaces.

Advantages

The adapter combines an industry-standard A‑coded M12 interface with a 5‑pole terminal block, enabling reliable signal and power wiring without soldering. Its compact green housing facilitates integration into control cabinets and automation panels while maintaining a robust mechanical connection suitable for industrial and building automation environments.

Suitable for (tasks / use cases)

• Connecting sensors, actuators or field devices with 4‑pin A‑coded M12 connectors to terminal block wiring
• Wiring conversions inside control cabinets and distribution panels
• Temporary or permanent installations in industrial automation and building automation

Key specifications

• Connector: 4‑pin A‑coded female M12
• Terminal block: 5‑pin removable terminal block
• Dimensions: 32.1 × 34.7 × 18.5 mm (W × D × H)
• Colour: Green
• Brand / MPN: DELOCK / 60662
• EAN: 4043619606627

How to use

Mount the adapter inside the control cabinet or near the device so the M12 connector is accessible. Insert and secure conductors into the 5‑pin terminal block according to the wiring diagram of the connected device, tighten the terminal screws, and then connect the mating M12 plug to the female connector. Verify wiring continuity and tighten all connections to recommended torque values before energising the circuit.

Recommendations

Use the adapter in environments matching the electrical and mechanical requirements of your installation. Ensure correct wire cross‑section for terminal connections and follow device manufacturer wiring assignments to avoid miswiring. For long‑term vibration exposure, confirm terminal screws are periodically checked and secured.
