Delock optický patch panel 6 portov pre SC duplex a LC quad s alternatívnym panelom 8 x SC simplex alebo LC duplex sivý DIN-lištová montáž (86095)

The Delock 86095 Fiber Optic Patch Panel is a versatile and modular solution for organizing and managing fiber optic connections in industrial environments, data centers, and network cabinets. Designed for DIN rail mounting, this robust steel panel offers interchangeable front panels to accommodate different connector types, providing flexibility for various cabling requirements.

Advantages

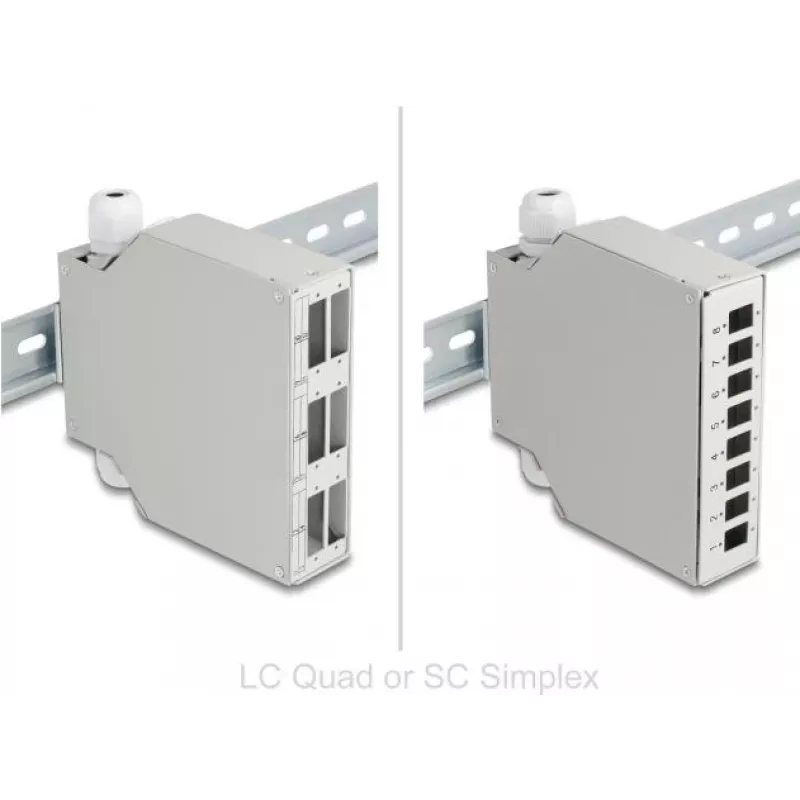

This patch panel allows quick adaptation to different fiber optic connector types thanks to its interchangeable panels. The included 6-port panel supports SC Duplex and LC Quad connectors, while the alternative 8-port panel supports SC Simplex and LC Duplex connectors. The grey steel housing (RAL 7035) ensures durability and a professional appearance. With an IP20 protection class and a wide operating temperature range, it is suitable for demanding industrial applications.

Suitable for

• Industrial automation and control systems
• Data center cabling infrastructure
• Network cabinets and server rooms
• Fiber optic network installations requiring flexible connector configurations

Key specifications

• Product Type: Fiber Optic Patch Panel
• Mounting Type: DIN Rail
• Housing Material: Steel
• Colour: Grey (RAL 7035)
• Main Panel Port Capacity: 6 ports
• Main Panel Connector Compatibility: SC Duplex, LC Quad
• Alternative Panel Port Capacity: 8 ports
• Alternative Panel Connector Compatibility: SC Simplex, LC Duplex
• Interchangeable Panels Included: Yes (1x 6-port, 1x 8-port)
• Operating Temperature: -20 °C to 70 °C
• Humidity: 10 - 90 % (non-condensing)
• Protection Class: IP20
• Dimensions (L x W x H): 100 x 100 x 30 mm
• Application Environment: Industrial, Data Centers, Network Cabinets
• Modularity: Supports various adapter types via interchangeable panels
• Cable Entry: Rear
• Grounding Option: Yes

Recommendations

For optimal performance, use with compatible SC and LC fiber optic adapters and cables. Ensure proper grounding when installed in metallic cabinets.
