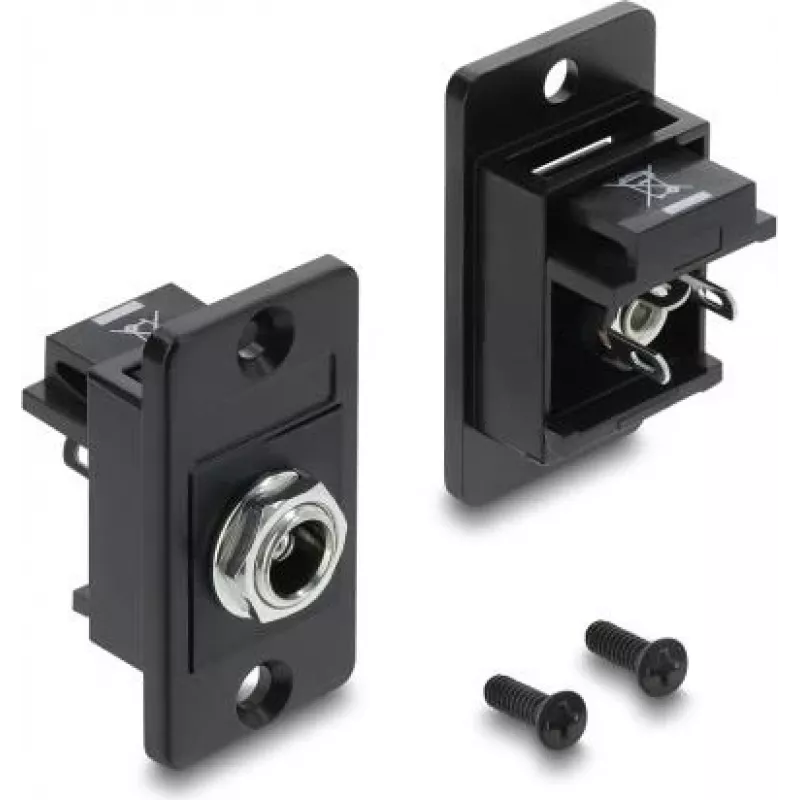

Delock panelový montážny DC napájací konektor 5,5 x 2,5 mm samica, spájkované pripojenie, čierny 91186

When you need a reliable DC power connection on a device enclosure, a flimsy cable dangling through a hole simply won't do. The Delock 91186 panel mount DC jack solves this by providing a secure, professional socket that mounts directly into your housing, accepting standard 5.5 x 2.5 mm DC plugs.

Who is it for

This connector is ideal for electronics hobbyists, prototype builders, and professionals who require a robust power input on custom enclosures, control panels, or equipment cases. It is perfect for low-voltage DC applications up to 12 V and 2 A.

Main features

• Panel mount design with M12 thread and included nut and washer for secure installation
• Female DC power jack with 5.5 mm outer diameter and 2.5 mm inner diameter
• Solder termination with 3 pins, including a switch pin for plug detection
• Durable black plastic housing with nickel-plated copper alloy contacts
• Compact dimensions: overall length approx. 20 mm, front flange diameter approx. 14 mm

Specifications

• Connector type: DC power jack, female
• Mounting type: panel mount, front side
• Outer diameter: 5.5 mm
• Inner diameter: 2.5 mm
• Number of pins: 3 (power, ground, switch)
• Termination: solder
• Rated voltage: 12 V DC
• Rated current: 2 A
• Mounting hole diameter: approx. 12 mm
• Thread size: M12
• Housing material: plastic, black
• Contact material: copper alloy, nickel plated
• Operating temperature: -20 °C to 85 °C
• Included accessories: mounting nut, washer

Tips

When soldering, use a heat sink on the pins to avoid melting the plastic housing. Ensure the mounting hole is clean and deburred for a tight, professional fit. This jack is compatible with any standard 5.5 x 2.5 mm DC plug, making it a versatile choice for many power supply units.
