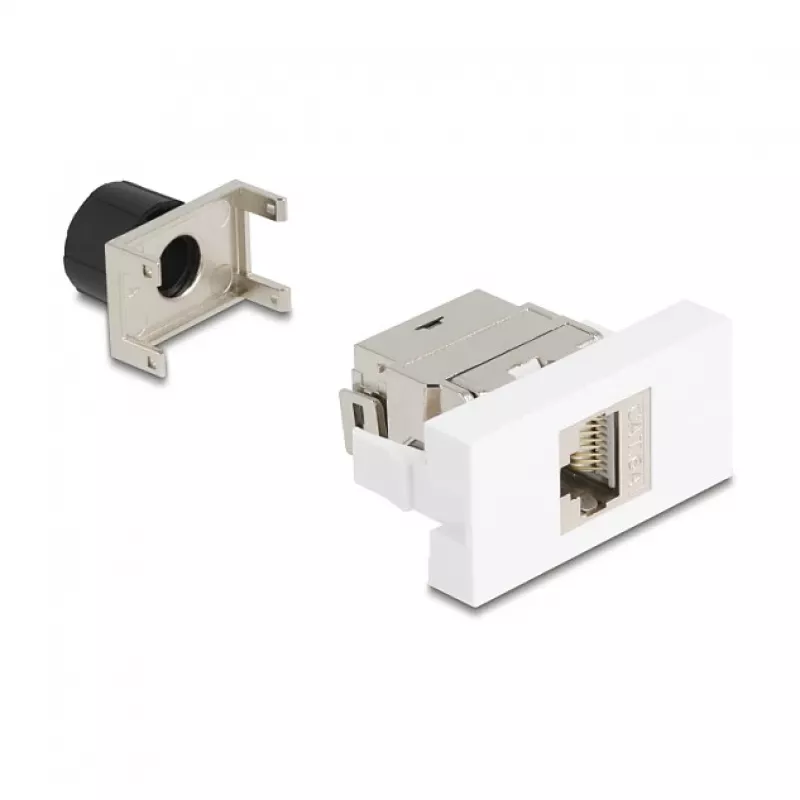

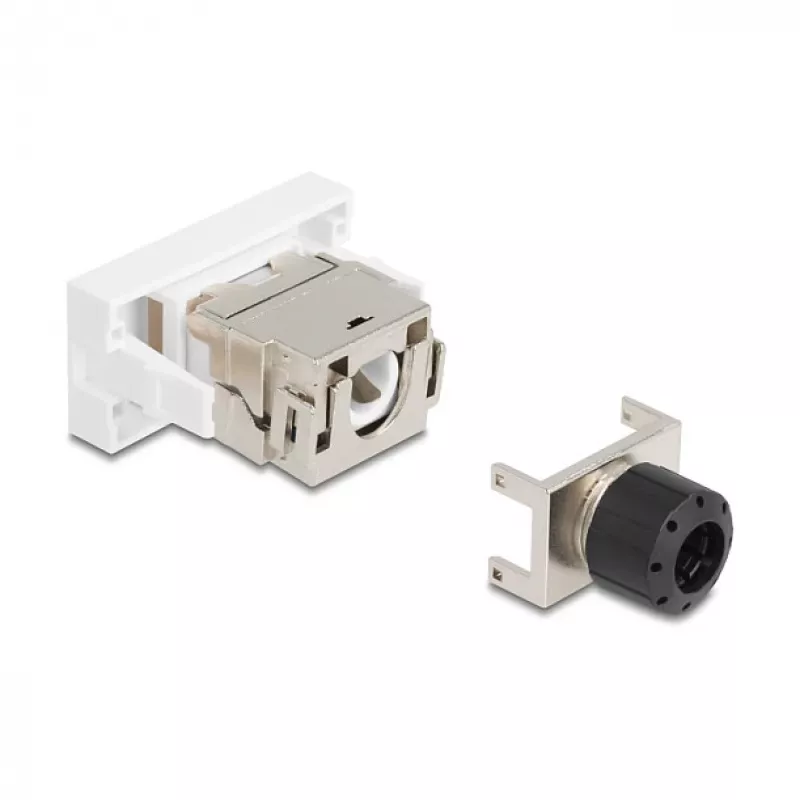

DELOCK RJ45 modul 90906 Cat.6A 180° bez nástroja

DELOCK RJ45 module 90906 Cat.6A 180° tool-free is a compact connector module engineered for high-speed Ethernet installations. The module supports Category 6A performance for networks up to 10 Gbps and is configured for a 180° cable orientation to fit a variety of patch panel and keystone jack layouts. Tool-free termination allows installers to connect twisted-pair cables quickly without crimping tools, reducing installation time and simplifying field work.

Advantages

The module provides Cat.6A performance in a standardized keystone-sized form factor with a 180° cable exit, enabling backwards compatibility with existing structured cabling. Tool-free termination eliminates the need for specialized crimping tools and shortens on-site deployment. Durable contacts and a secure locking mechanism ensure stable signal transmission and minimize the risk of accidental disconnection during maintenance or cable movement.

Suitable for

Key specifications

How to use

To install, insert the module into a compatible keystone slot or patch panel opening until it clicks into place. Prepare the cable by stripping the outer jacket according to the module’s exposed wiring length and separate the twisted pairs. Follow the color-coded wiring guide on the module and seat each conductor into the indicated slot. Close the module’s tool-free termination cover or actuator to secure the conductors; excess wire can be trimmed if required. After termination, test the connection with a network tester to verify continuity and performance.

Recommendations

Use stranded or solid twisted‑pair cable that meets Cat.6A specifications and maintain proper cable bend radius near the module. Avoid excessive untwisting of pairs and ensure pairs remain fully seated in the termination slots. For critical installations, verify link performance with a certified tester after installation and follow structured cabling standards for patch panel layout and labeling.
