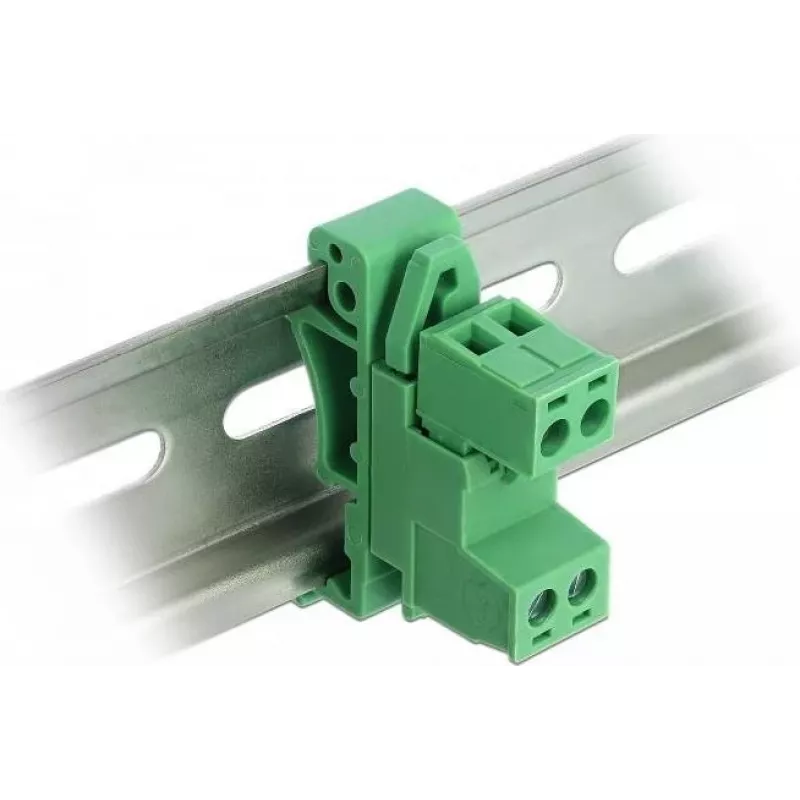

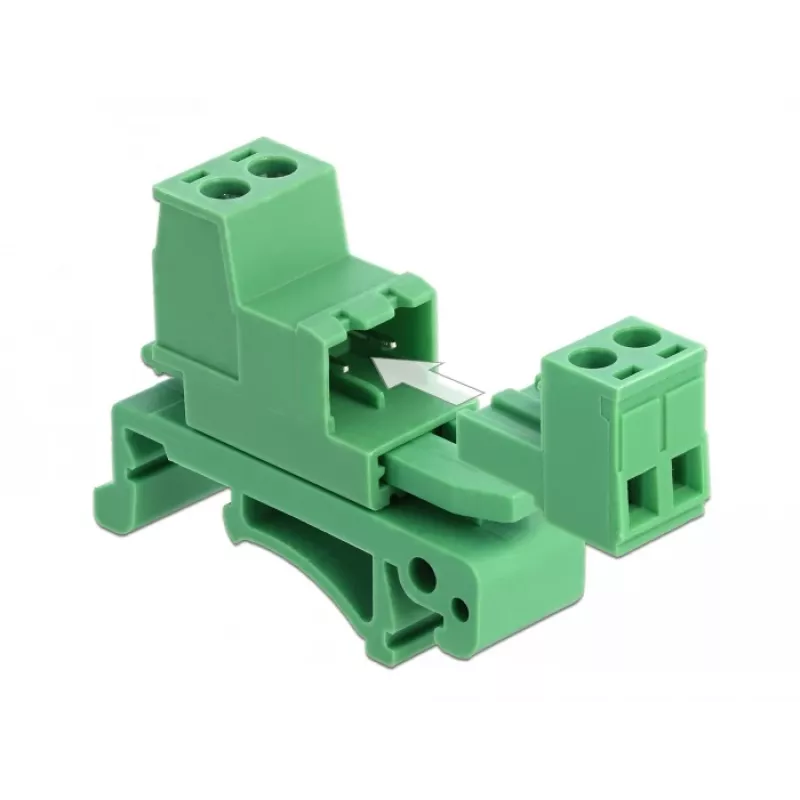

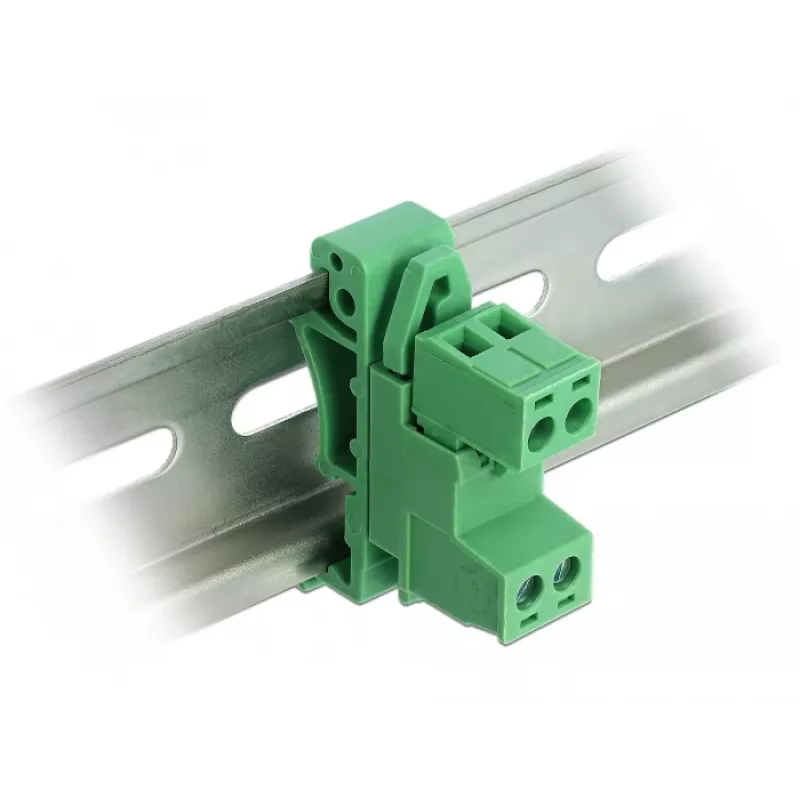

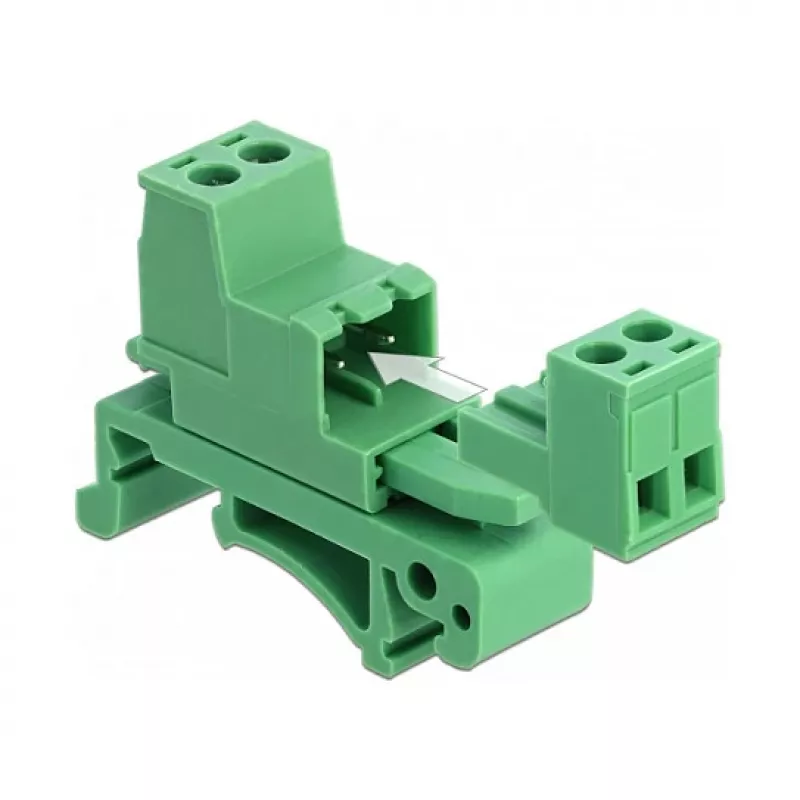

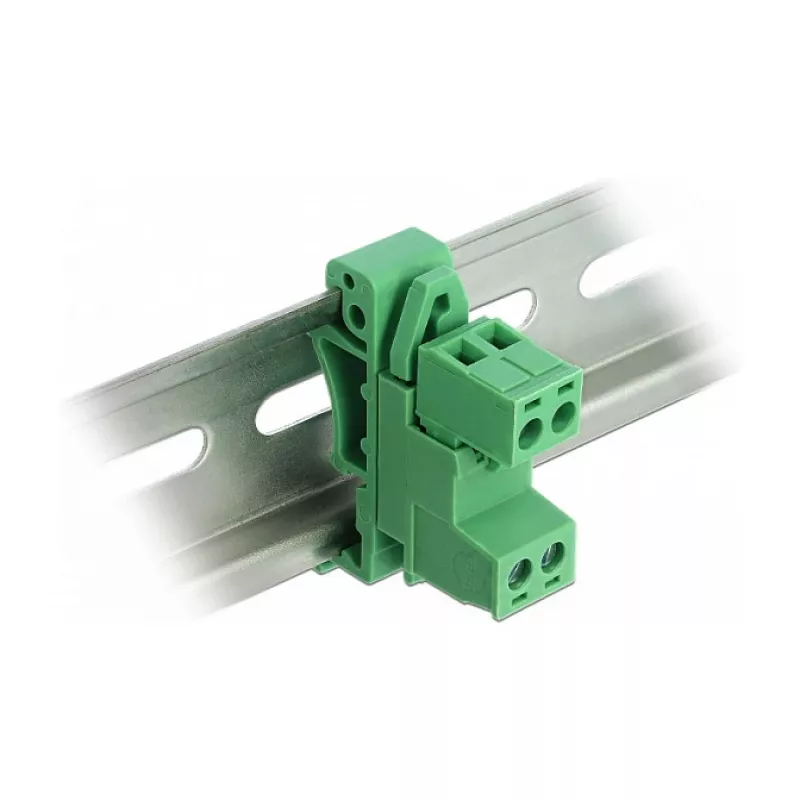

DELOCK sada svorkovnice pre DIN lištu 2-pólová rozteč 5,08 mm zahnutá

The DELOCK 66078 terminal block set provides a reliable screw connection for two conductors with a 5.08 mm pitch, designed for DIN rail mounting. Its angled orientation simplifies wiring in tight spaces, and the green polyamide housing meets UL 94 V0 flammability requirements.

Highlights

• 2 positions, 5.08 mm pitch, screw connection
• Nominal current 12 A, nominal voltage 320 V (IEC)
• Accepts solid or stranded conductors 0.2–2.5 mm² (24–12 AWG)
• Operating temperature -40 °C to 100 °C

In daily use

The screw terminals with M3 thread and 7 mm stripping length ensure secure, vibration-resistant connections. The block is intended for free suspension (cable connection) and mounts on standard DIN rails.

Full specifications

• Product type: PCB connector plug
• Series: MSTB 2,5
• Number of positions: 2
• Pitch: 5.08 mm
• Connection method: Screw connection
• Nominal current (IEC): 12 A
• Nominal voltage (IEC, III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal cross section: 2.5 mm²
• Conductor cross section solid: 0.2 - 2.5 mm²
• Conductor cross section stranded: 0.2 - 2.5 mm²
• Conductor cross section AWG: 24 - 12
• Stripping length: 7 mm
• Screw thread: M3
• Insulating material: PA (Polyamide)
• Colour: Green
• Flammability rating (UL 94): V0
• Mounting type: Free suspension (cable connection)
• Operating temperature: -40 °C to 100 °C

Final note

A compact, angled terminal block for DIN rail applications where space is limited and reliable screw connections are required.
