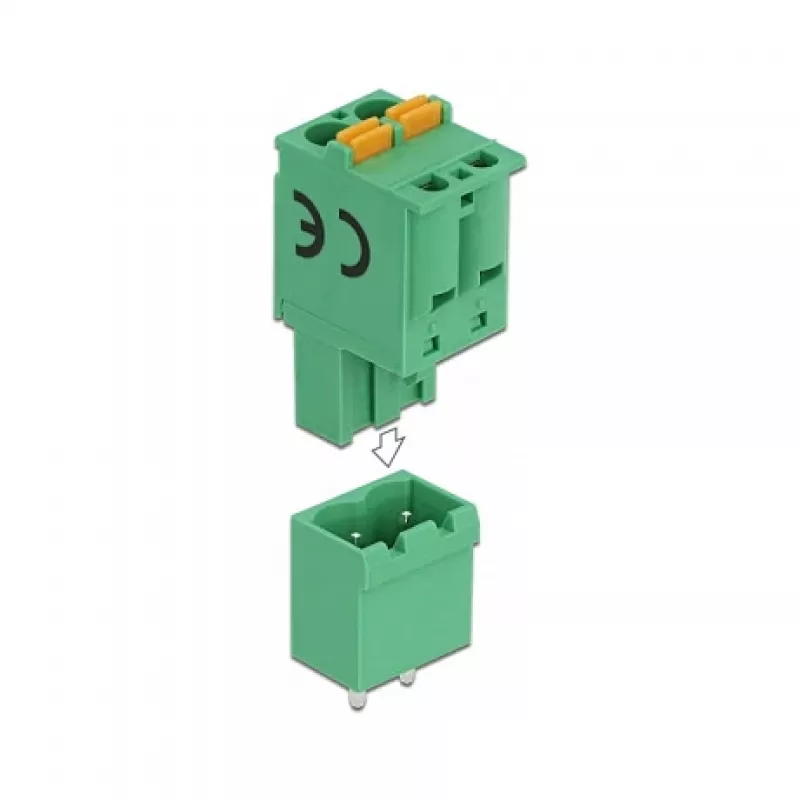

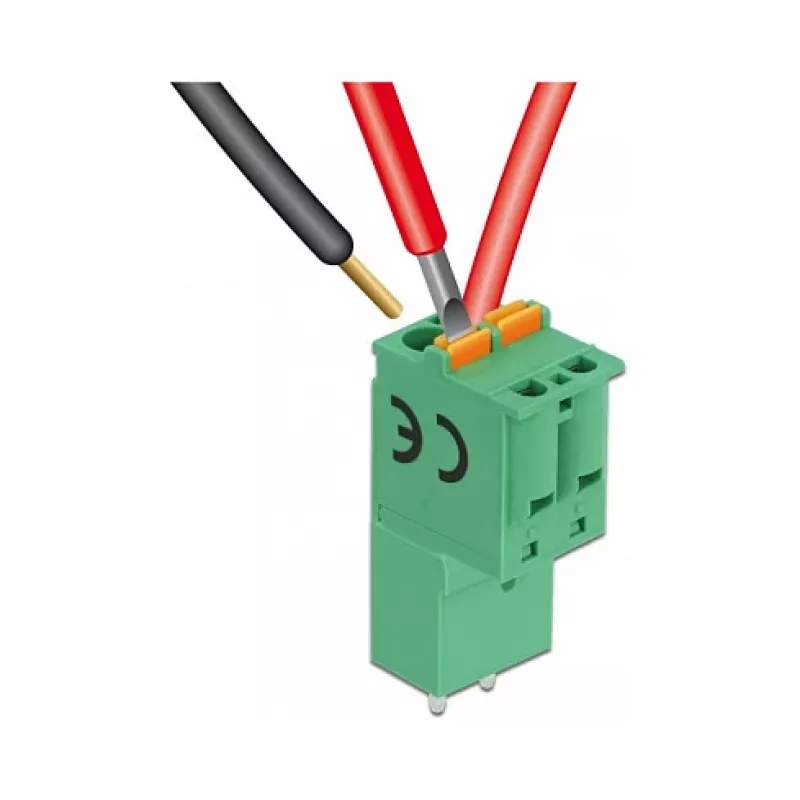

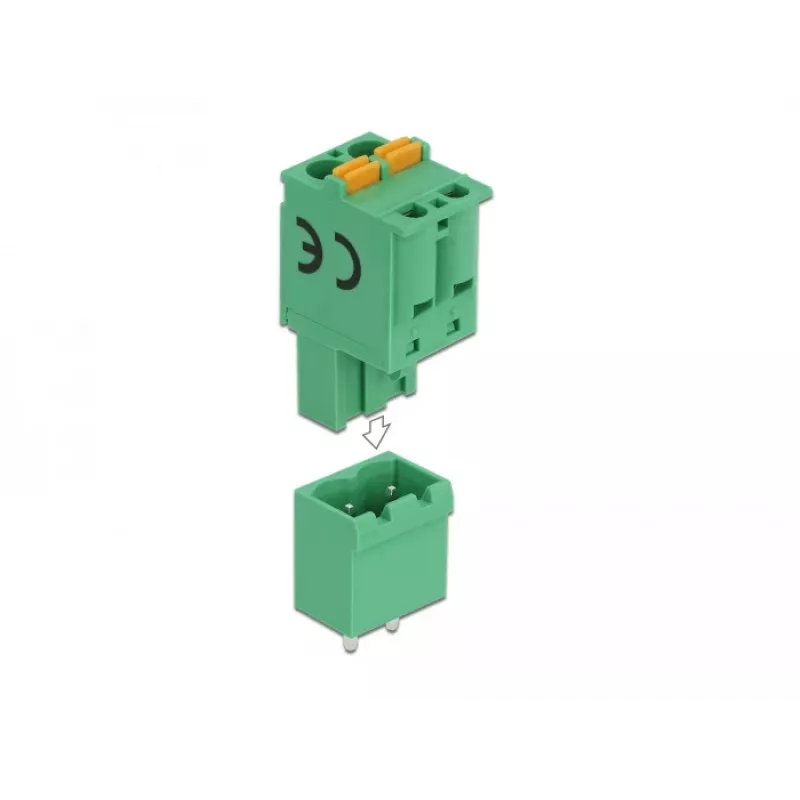

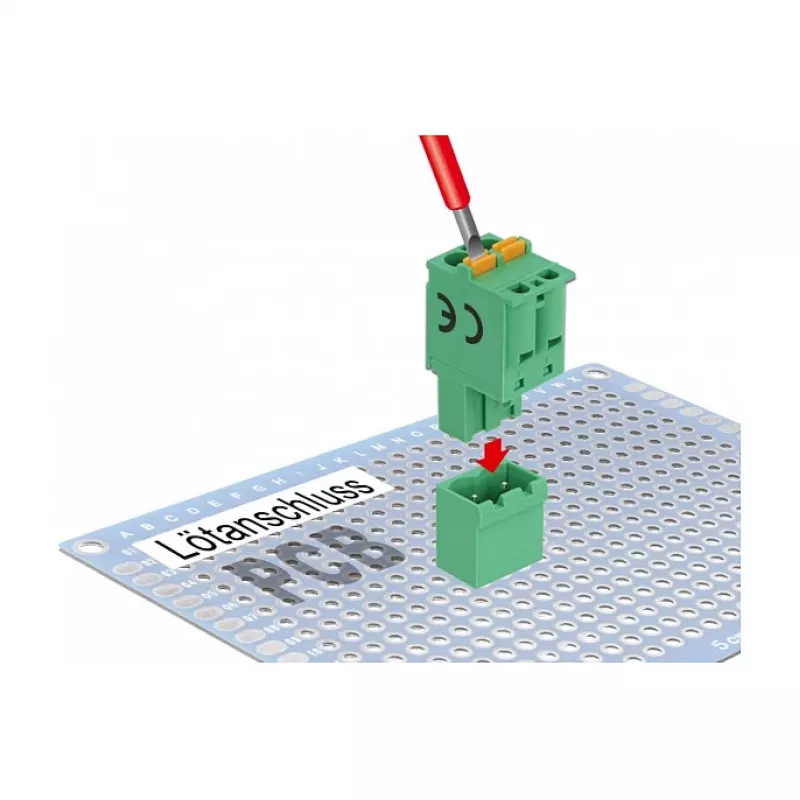

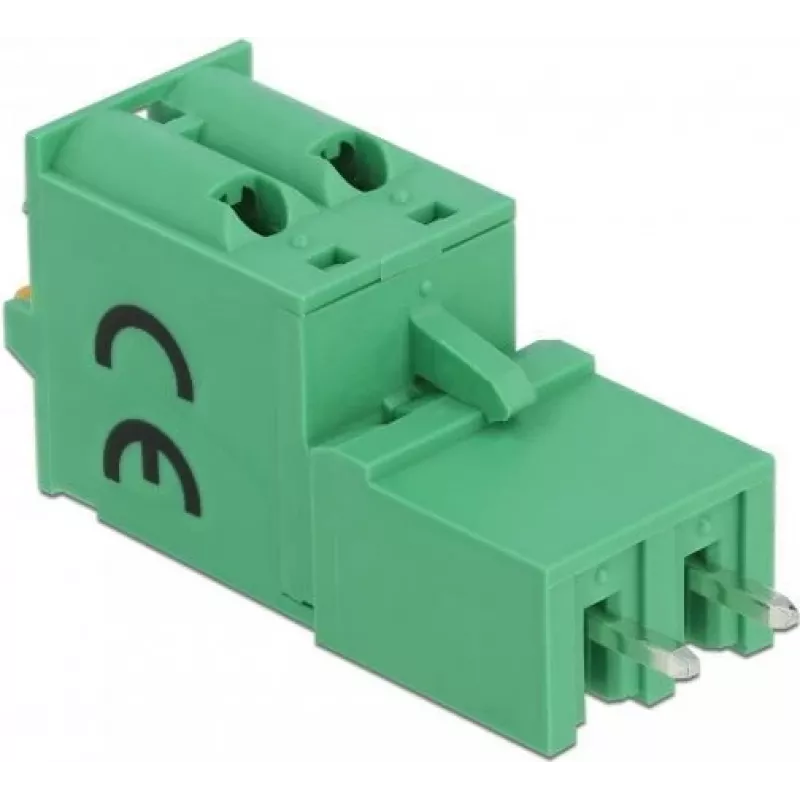

Delock sada svorkovnice pre dosku plošných spojov, 2-pólová, 5,08 mm rozteč, vertikálna 66500

When building or repairing electronics, connecting wires to a printed circuit board often requires a reliable, reusable connection point. This Delock terminal block set provides a secure screw-terminal interface for 2-pin connections with a 5.08 mm pitch, mounted vertically to save board space.

Who is it for

Ideal for electronics hobbyists, prototyping, industrial control panels, and PCB assembly where a detachable wire connection is needed.

Main features

• 2-pin terminal block with 5.08 mm pitch
• Vertical orientation for through-hole PCB mounting
• Screw terminal connection accepts wire gauges from 28 to 12 AWG (0.08 to 3.3 mm²)
• Rated for 300 V and 10 A
• Housing made of Polyamide 66 (PA66), UL 94V-0 flammability rated
• Contacts are brass with tin plating; screws are steel with zinc plating
• Operating temperature range: -40 °C to 105 °C
• Set includes 10 pieces

Specifications

• Connector type: Terminal block
• Number of pins: 2
• Pitch: 5.08 mm
• Mounting orientation: Vertical
• Mounting type: Through-hole PCB
• Connection method: Screw terminal
• Rated voltage: 300 V
• Rated current: 10 A
• Wire gauge: 28 - 12 AWG (0.08 - 3.3 mm²)
• Housing material: Polyamide 66 (PA66)
• Contact material: Brass, tin-plated
• Screw material: Steel, zinc-plated
• Insulation resistance: 500 MΩ at 500 V DC
• Withstanding voltage: AC 2000 V for 1 minute
• Screw torque: 0.5 Nm
• Flammability rating: UL 94V-0
• Colour: Green
• Quantity per set: 10 pieces

Tips

Ensure the PCB holes match the 5.08 mm pitch. Use a screwdriver with appropriate torque to avoid damaging the terminals. For higher current applications, verify wire gauge suitability.
