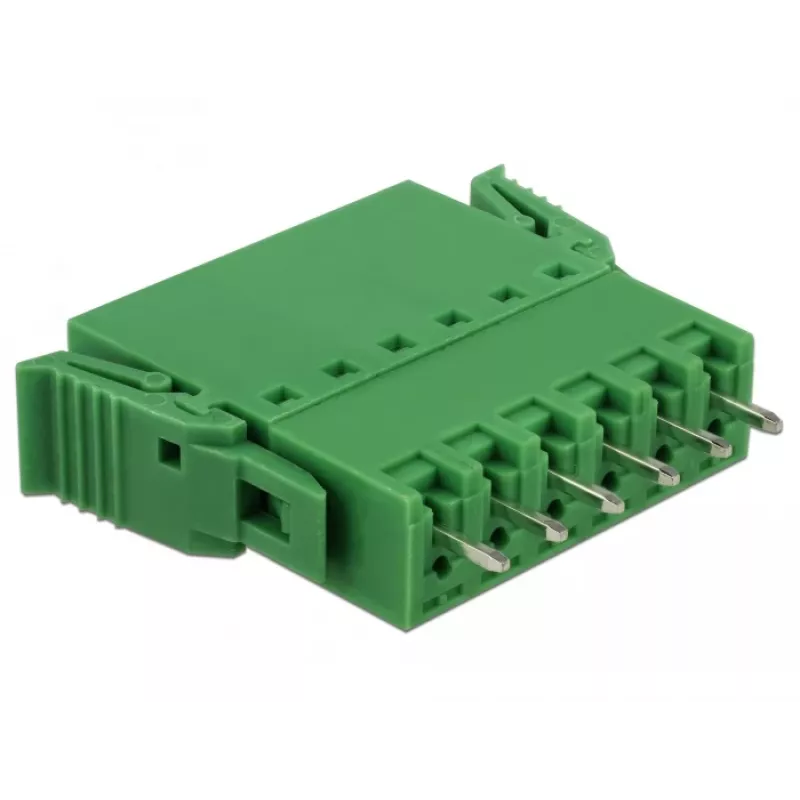

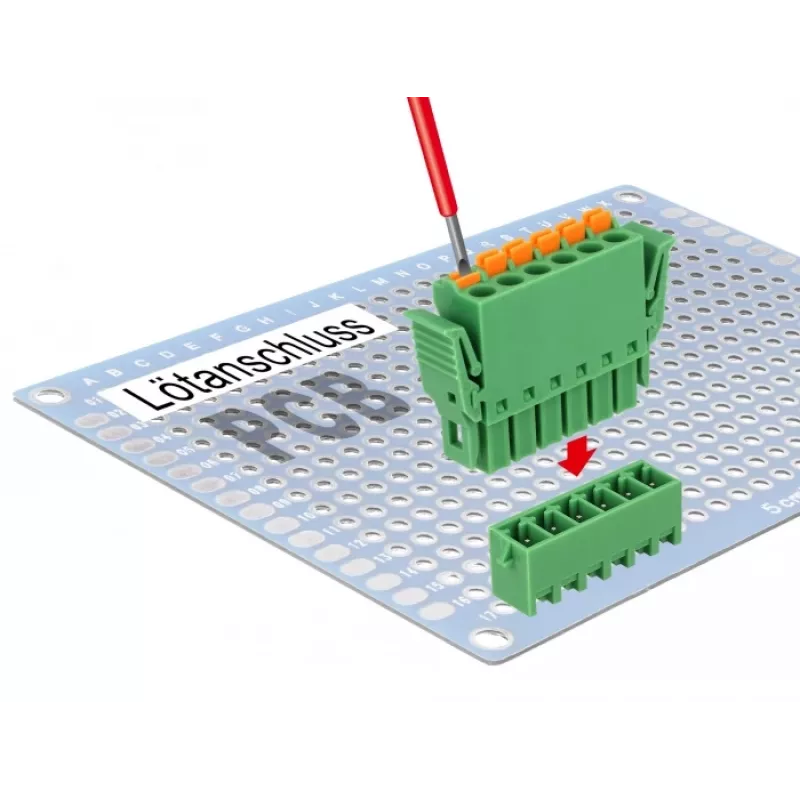

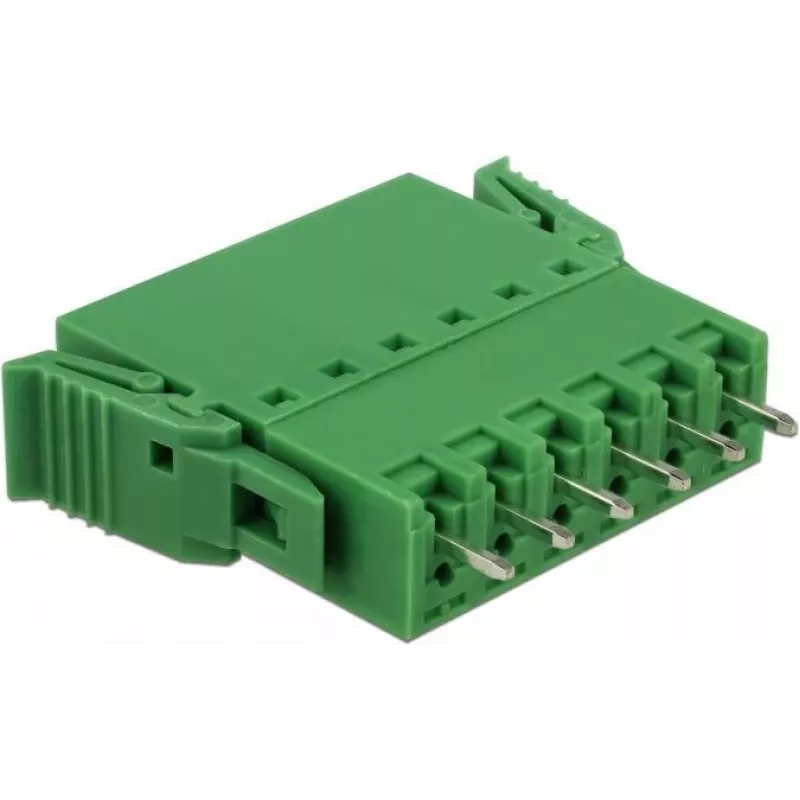

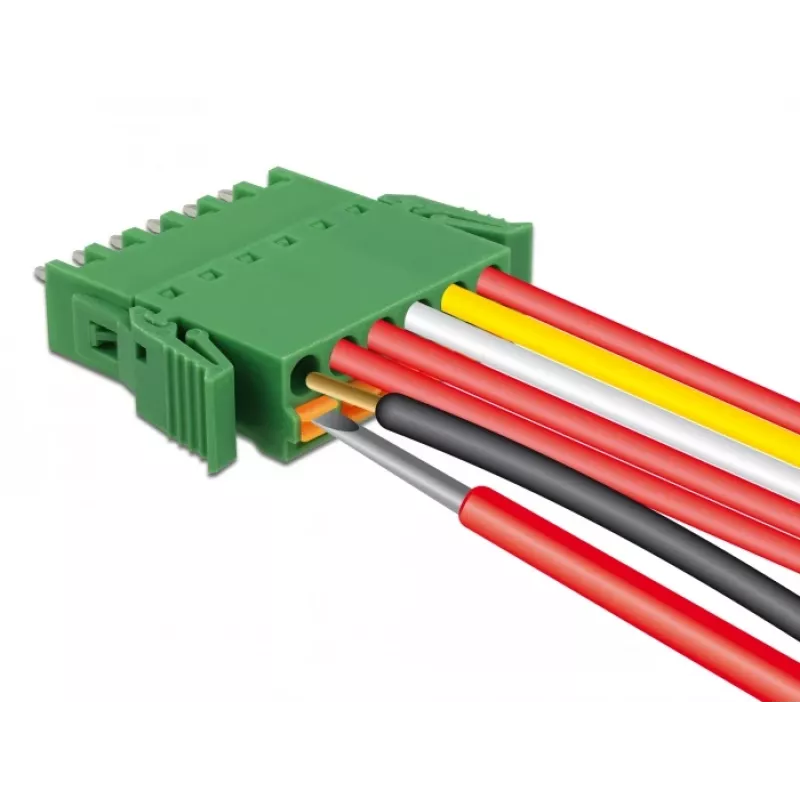

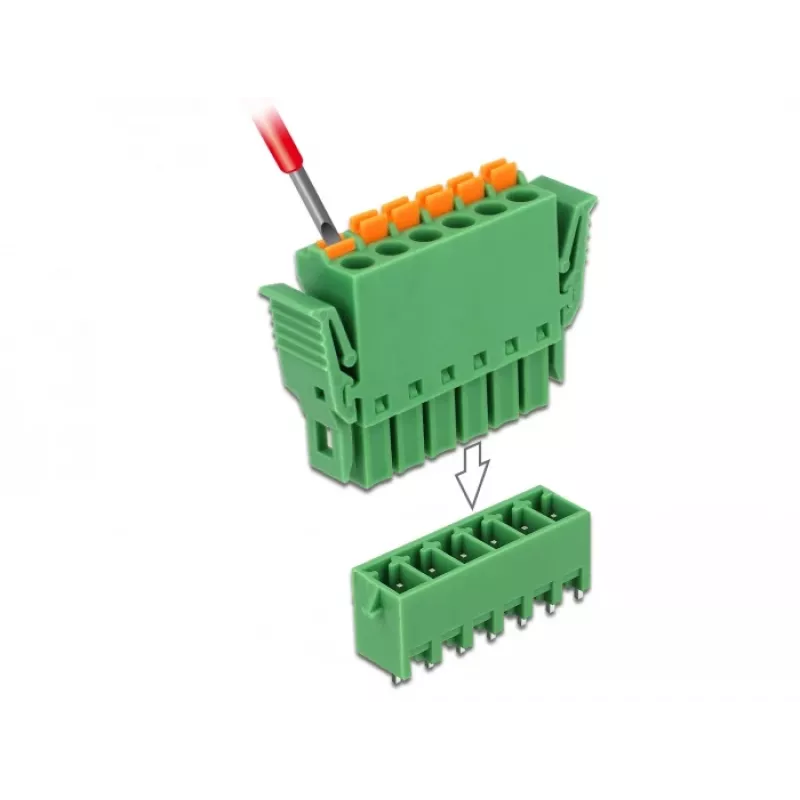

Delock sada svorkovnice pre dosku plošných spojov 6-pólová rozstup 3,81 mm vertikálna (65972)

Terminal block set for printed circuit boards, offering a reliable screw-terminal connection for 6-pin configurations with a 3.81 mm pitch. This vertical-mount set simplifies wiring in compact electronic assemblies.

Advantages

The set includes 10 terminal blocks, providing ample quantity for multiple boards or prototyping. Screw terminals accept a wide range of wire gauges from 28 to 16 AWG, ensuring compatibility with various conductors. The PA66 housing and phosphor bronze contacts deliver durability and good electrical performance.

Suitable for

• PCB prototyping and production
• Industrial control boards
• Test and measurement equipment
• DIY electronics projects

Key specifications

• Connector type: Terminal block set
• Mounting type: PCB (printed circuit board)
• Pin configuration: 6 pin
• Pitch: 3.81 mm
• Orientation: Vertical
• Connection method: Screw terminal
• Wire gauge compatibility: 28 - 16 AWG
• Rated current: 8 A
• Rated voltage: 300 V
• Insulation resistance: > 500 MΩ (at 500 V DC)
• Withstanding voltage: AC 2000 V / 1 min
• Operating temperature: -40 °C to 105 °C
• Housing material: PA66 (polyamide 66)
• Contact material: Phosphor bronze
• Screw material: Steel, zinc plated
• Color: Green
• Number of pieces in set: 10
• Flammability rating: UL94V-0

Recommendations

Ideal for engineers and hobbyists needing a dependable vertical terminal block solution for 3.81 mm pitch PCB layouts.
