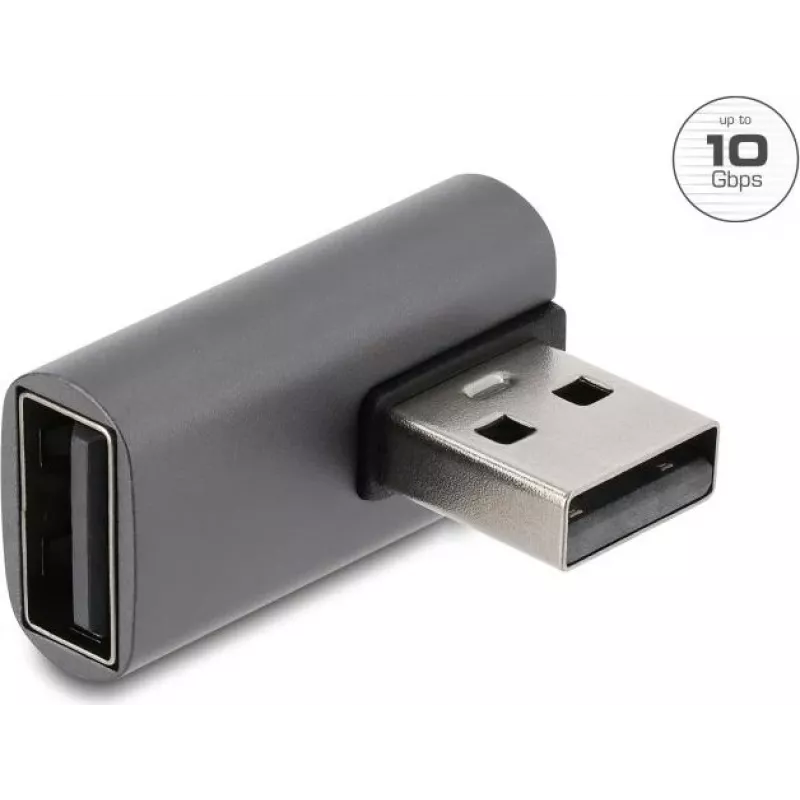

Delock USB 10 Gbps Type-A konektor samec na Type-A konektor samica adaptér, ľavý uhol, hliníkové puzdro

When a straight USB Type-A connector collides with a wall, a neighbouring port, or a tight chassis, the result is often a bent cable, a blocked socket, or an inaccessible port. This Delock adapter solves that problem by adding a 90-degree left turn at the point of connection—so you can route your USB 10 Gbps cable sideways instead of straight out, without sacrificing speed or durability.

Who is it for

It is built for technicians, IT administrators, and home users who need to connect USB devices in confined spaces: behind wall-mounted TVs, inside server racks, under desks, or next to other bulky connectors. If you have ever had to force a cable into a port or leave a port unused because the connector would not fit, this adapter is for you.

Main features

• Left-angled 90° design redirects the cable to the side, saving space and reducing strain on the port.
• Supports USB 3.2 Gen 2 data rates up to 10 Gbps—ideal for external SSDs, high-resolution webcams, and fast data transfers.
• Aluminium housing provides excellent shielding against interference and resists wear, heat, and corrosion.
• Backward compatible with USB 3.0, USB 2.0, and USB 1.1 devices, so it works with virtually any USB Type-A peripheral.
• Plug-and-play: no drivers or software installation required; works with any operating system.
• Supports both data transfer and charging (up to the port's power limit).

Specifications

• Connector 1: USB 10 Gbps Type-A male
• Connector 2: USB 10 Gbps Type-A female
• USB standard: USB 3.2 Gen 2 (10 Gbps)
• Data transfer rate: up to 10 Gbps
• Angle orientation: left (90°)
• Housing material: aluminium
• Colour: grey
• Dimensions (LxWxH): 30.0 x 16.0 x 20.0 mm (without connector)
• Function: data transfer and charging
• Plug & Play: yes
• Driver required: no
• Operating system support: OS independent

Tips

Before ordering, check which direction your cable needs to exit the port. This adapter angles to the left when viewed from the front of the female port. For the opposite direction, look for a right-angled version. The aluminium housing may feel warm during high-speed transfers—this is normal. To maintain full 10 Gbps speed, pair with a certified USB 3.2 Gen 2 cable.
