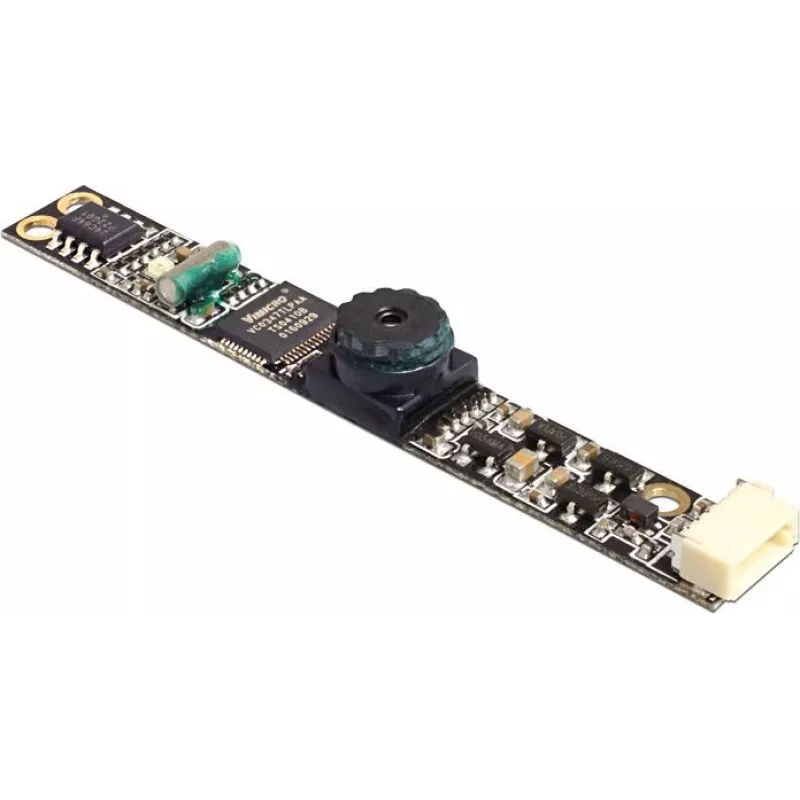

Delock USB 2.0 kamerový modul 1,92 megapixela 48° V5 8 cm Fixed Focus

Embedding a compact, high-resolution camera into an industrial or embedded system often means wrestling with driver compatibility, bulky modules, or unreliable image quality. The Delock USB 2.0 Camera Module eliminates those headaches with a plug-and-play UVC design that delivers crisp 1600 x 1200 stills and smooth 30 fps video over a standard USB port. Its 48° diagonal field of view and fixed focus at 8 cm make it ideal for close-range inspection, kiosk imaging, document capture, and machine vision tasks where consistent framing is critical.

Who is it for

System integrators, developers, and OEMs building inspection stations, access control terminals, document scanners, or robotics prototypes will appreciate this module’s small footprint, M12 lens mount, and four M2 mounting holes for secure installation. It works out of the box with Windows, Linux, and macOS—no custom drivers needed.

Main features

• 1.92 MP CMOS sensor (1600 x 1200) with 1/3.2″ optical format
• USB 2.0 Type-A interface with UVC compliance for driver-free operation
• 48° diagonal field of view and fixed focus at 8 cm for consistent close-up imaging
• M12 lens mount with F2.0 aperture for balanced light gathering
• Supports YUY2 and MJPG output formats at up to 30 fps
• Automatic white balance, exposure, and gain for stable image quality
• 1.5 m integrated cable for flexible placement
• Wide operating temperature range from -20 °C to 70 °C

Specifications

• Sensor resolution: 1.92 Megapixel (1600 x 1200)
• Sensor type: 1/3.2″ CMOS
• Interface: USB 2.0 Type-A
• Field of view: 48° diagonal
• Focus type: Fixed focus at 8 cm
• Lens type: M12
• Aperture: F2.0
• Max frame rate: 30 fps at 1600 x 1200 and 1280 x 720
• Minimum illumination: 0.5 Lux
• Output formats: YUY2, MJPG
• Cable length: 1.5 m
• Operating temperature: -20 °C to 70 °C
• Storage temperature: -30 °C to 80 °C
• Power consumption: 5 V, 150 mA (max)
• UVC support: Yes
• Mounting: 4 x M2 mounting holes
• Compatibility: Windows 7/8/8.1/10/11, Linux Kernel 2.6.x+, Mac OS 10.9+
• Automatic controls: White balance, exposure, gain

Tips

For best results, mount the module on a stable surface and ensure the subject is at the 8 cm fixed focus distance. Use MJPG format when bandwidth is limited, or YUY2 for uncompressed frames. The M12 lens can be swapped for different focal lengths if your application requires a different field of view.
