DeLOCK USB 3.0 19 Pin - USB 2.0 8 Pin 45 cm

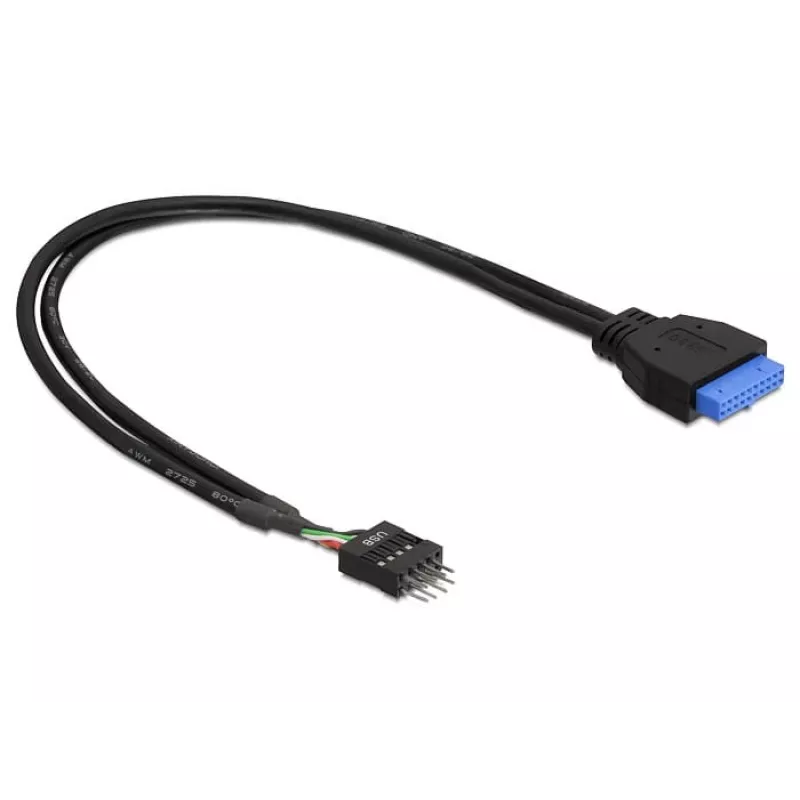

This DeLOCK USB 3.0 19 pin to USB 2.0 8 pin cable (approx. 45 cm) allows connection of USB 2.0 devices to a motherboard USB 3.0 pin header. The cable provides data transfer compatibility with USB 2.0 and USB 3.2 Gen 1 (also known as 3.1 Gen 1) and supplies sufficient power to connected USB 2.0 devices by using the USB 3.0 header.

Advantages

The cable converts a USB 3.0 19-pin header to a USB 2.0 8-pin connector in a single compact lead, supports data transfer rates up to 480 Mb/s for USB 2.0 devices, and can deliver up to 900 mA power. With a length of approximately 0.45 m and a black colour, it is suitable for internal motherboard connections and offers straightforward compatibility with standard USB 2.0 peripherals.

Suitable for

• Connecting internal USB 2.0 front panel ports to a motherboard USB 3.0 header
• Powering and connecting USB 2.0 devices via a USB 3.0 pin header
• Adapting motherboard headers for legacy USB 2.0 peripherals

Key specifications

• Connector: USB 3.0 19-pin female (motherboard header) to USB 2.0 8-pin male
• USB versions supported: USB 2.0 / USB 3.2 Gen 1 (3.1 Gen 1)
• Data transfer rate: up to 480 Mb/s (USB 2.0)
• Power supply: up to 900 mA
• Cable length: approx. 45 cm (without connectors)
• Colour: black
• Manufacturer: DELOCK, MPN: 83791, EAN: 4043619837915

How to use

Locate the USB 3.0 19-pin header on the motherboard and insert the cable's 19-pin female connector onto the header, ensuring correct orientation. Connect the 8-pin USB 2.0 male connector to the corresponding internal USB 2.0 socket or adapter on the device or front panel. Secure cables to avoid strain on connectors and verify connections before powering the system.

Recommendations

Use the cable for internal PC connections only; avoid exposing connectors to moisture or mechanical stress. If additional or different pinouts are required, consider using the compatible Delock pin header adapters (items 41761, 41762, 41764) listed by the manufacturer.
