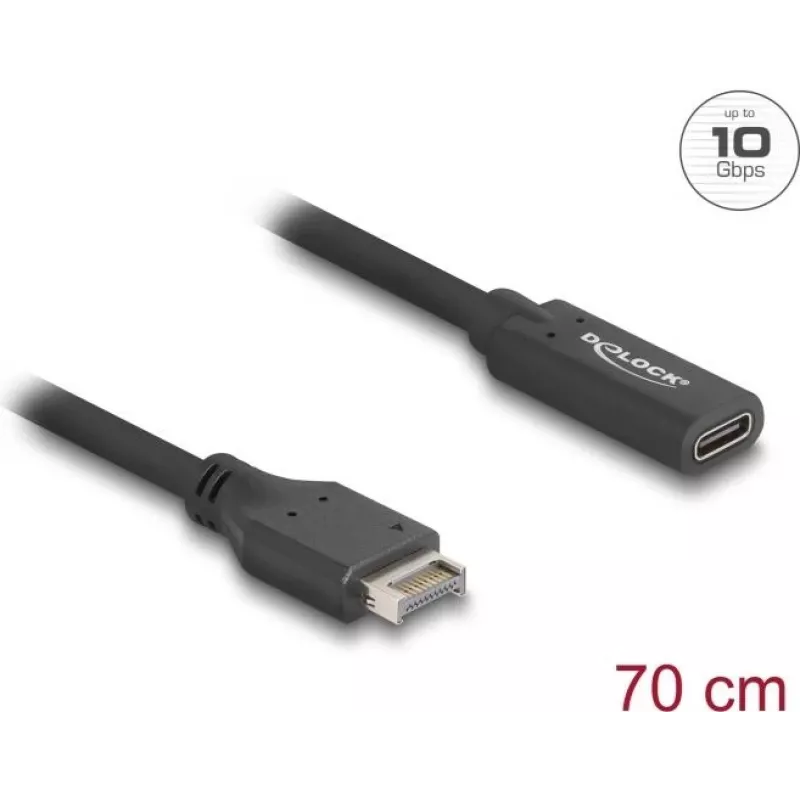

DeLOCK USB kábel Type-E Key A 20-pinový konektor samec na USB Type-C konektor samica 70 cm

This cable by Delock connects to an internal USB 10 Gbps Type-E (Key A) 20‑pin socket on a motherboard or PCI Express card and extends a USB connection to an external USB Type‑C port. It supports USB 3.2 Gen 2 (3.1 Gen 2) speeds and is intended for high‑speed data transfer. The cable length is 0.7 m and the outer diameter is approximately 5 mm.

Advantages

The DeLOCK cable provides a direct internal connection from a motherboard or PCIe card Type‑E 20‑pin header to an external USB Type‑C female port, supporting up to 10 Gbps data transfer. Its compact 5 mm diameter and 0.7 m length allow flexible routing inside a PC case while maintaining USB 3.2 Gen 2 performance.

Suitable for

• Adding an external USB‑C port to a desktop PC from an internal Type‑E 20‑pin header
• Extending a motherboard or PCIe card internal USB connection to an accessible front or rear panel
• High‑speed data transfer between external USB‑C devices and the PC

Key specifications

• Brand: DELOCK
• MPN: 85666
• EAN: 4043619856664
• Connector 1: USB Type‑E (Key A) 20‑pin male
• Connector 2: USB Type‑C female
• USB version: 3.2 Gen 2 (3.1 Gen 2), up to 10 Gbps
• Cable length: 0.7 m
• Approximate diameter: 5 mm

How to use

Power off the PC and open the case. Locate the internal USB Type‑E (Key A) 20‑pin header on the motherboard or PCIe card and insert the male connector, ensuring correct orientation of the key. Route the cable to the desired panel area and fix the cable to avoid strain. Connect the external USB Type‑C device to the female port. Reassemble the case and power on the system. The operating system should detect the connected device and use USB 3.2 Gen 2 speeds if supported by both host and device.

Recommendations

Use this cable inside a desktop computer case only; avoid sharp bends and mechanical strain. To achieve the maximum 10 Gbps transfer rate, ensure the host header, any intervening controller, and the connected USB‑C device all support USB 3.2 Gen 2.
