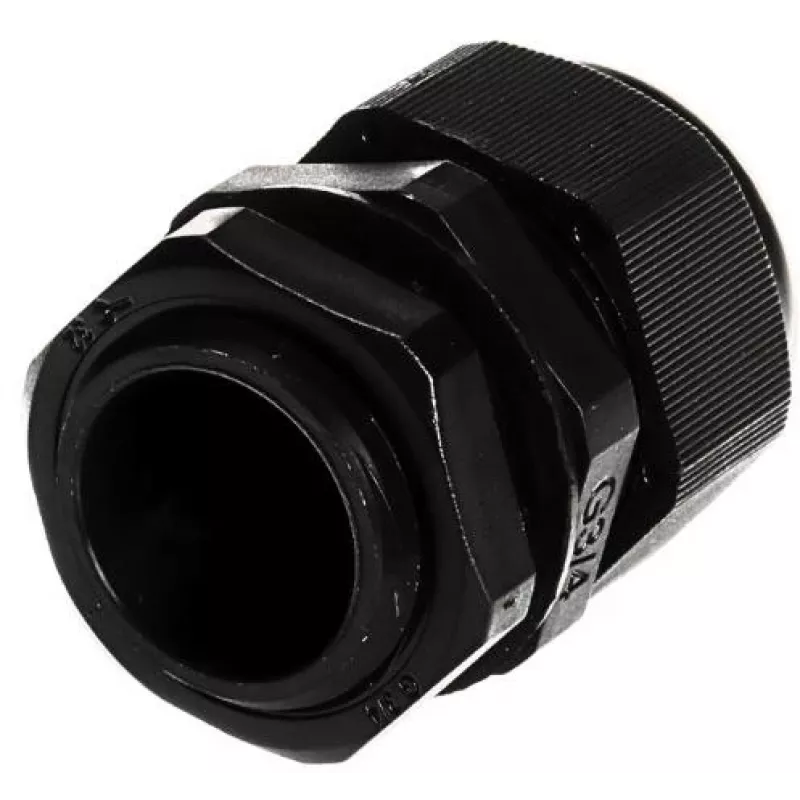

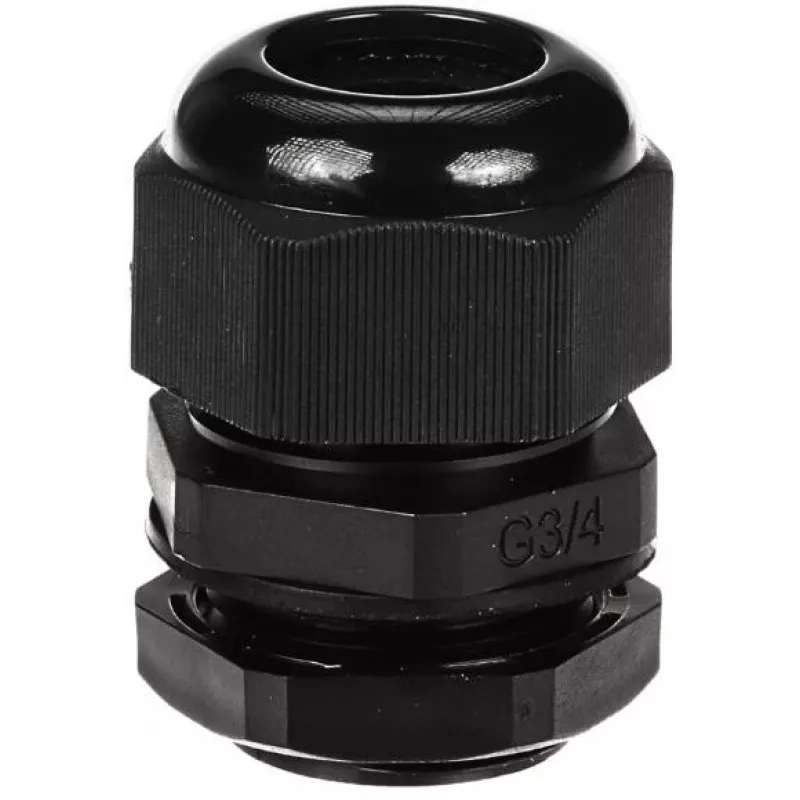

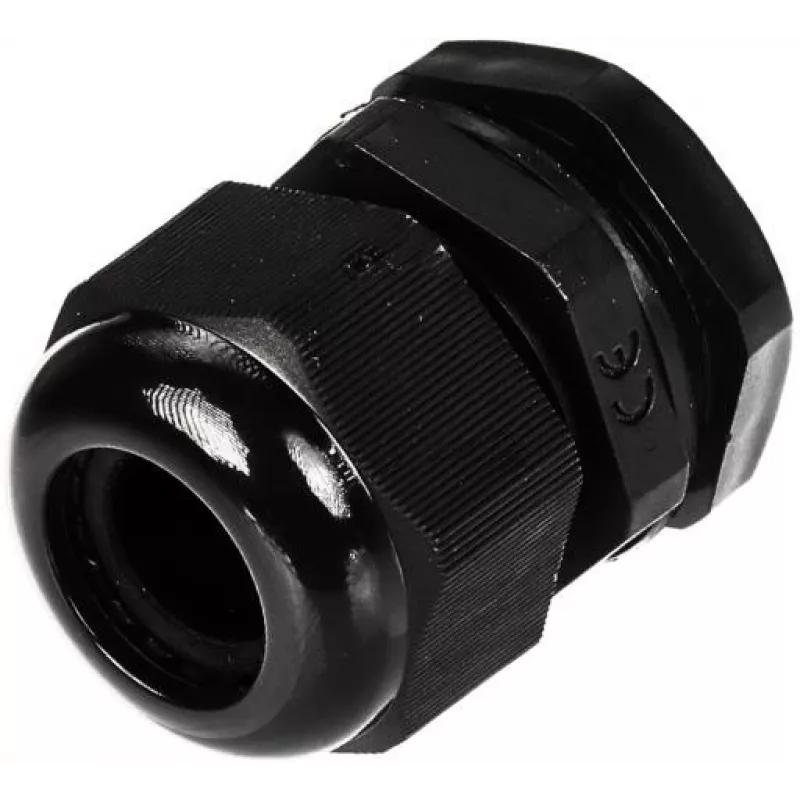

DELTA izolovaná káblová priechodka G3/4-SCHWARZ IP68 3/4

Industrial cable gland with IP68 protection, engineered for secure and insulated cable entry in demanding environments. The DELTA G3/4-BLACK features a robust polyamide 6 body and an NBR sealing gasket, accommodating cable diameters from 13 to 18 mm.

Advantages

This cable gland delivers exceptional environmental sealing, safeguarding connections against dust, moisture, and temporary submersion. Its halogen-free, UV-resistant construction ensures long-term durability in outdoor and industrial settings, while the insulated design prevents electrical contact with metal enclosures.

Suitable for

• Industrial control panels and electrical enclosures
• Outdoor installations exposed to weather and UV radiation
• Applications requiring reliable strain relief and cable protection
• Environments where halogen-free materials are mandated

Key specifications

• Thread type: G (BSP parallel), size 3/4 inch
• Ingress protection: IP68
• Material: Polyamide 6 (PA6), seal: NBR
• Cable diameter range: 13–18 mm
• Operating temperature: -40°C to +100°C (static), -20°C to +80°C (dynamic)
• Flammability rating: UL94 V-2, halogen-free, UV resistant
• Wrench size: 30 mm, thread length: 11 mm
• Compliance: EN 60529, RoHS, CE

Recommendations

For reliable cable management in harsh conditions, pair this gland with a matching locknut and ensure the enclosure wall thickness is compatible with the thread length. Use within the specified cable diameter range to maintain the IP68 seal.
