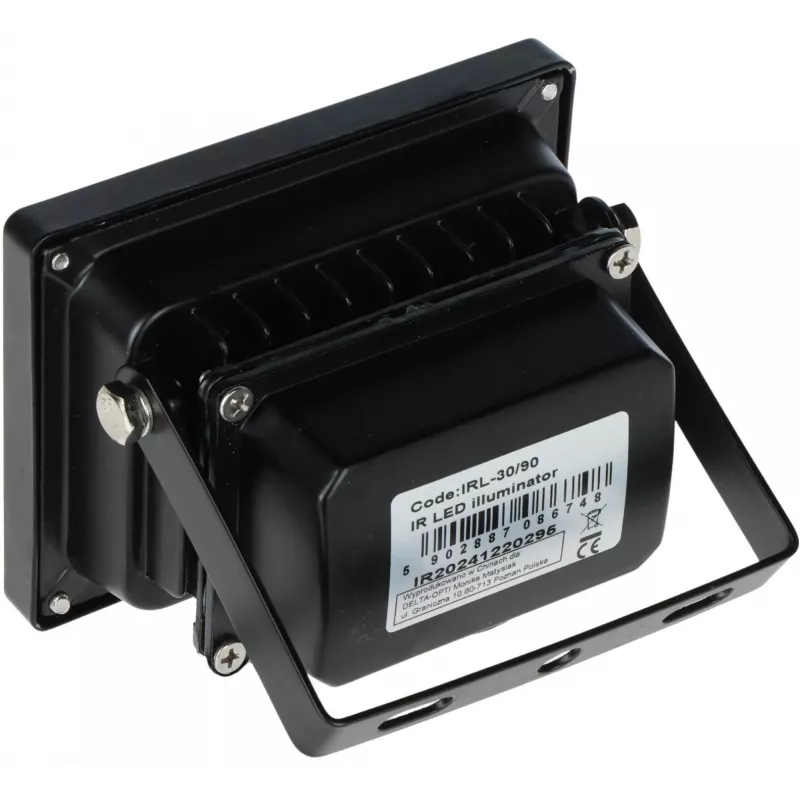

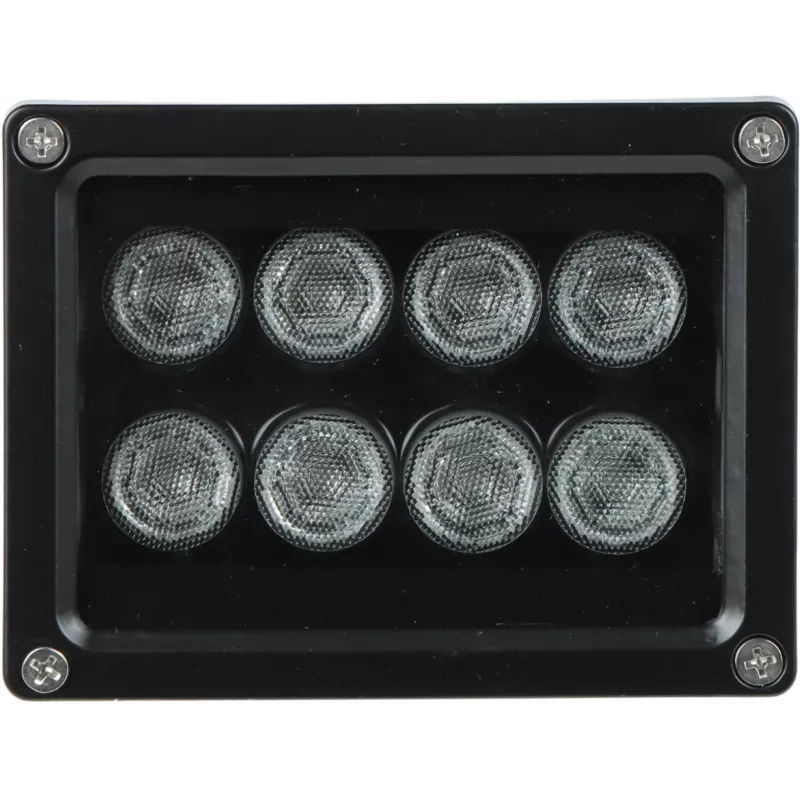

DELTA vonkajší IR žiarič IRL-30/90 30m 90° 850nm 12V DC IP66 čierny

The DELTA IRL-30/90 is a high-performance outdoor infrared illuminator designed to enhance night vision capabilities of CCTV and security camera systems. With a powerful illumination range of 30 meters and a wide 90° beam angle, it ensures clear, detailed images even in complete darkness. The built-in photocell enables automatic dusk-to-dawn activation, making it an energy-efficient and reliable solution for 24/7 surveillance.

Advantages

Engineered for durability and consistent performance, the IRL-30/90 features an IP66-rated weatherproof housing, protecting against dust and powerful water jets. Its adjustable wall/ceiling bracket allows flexible positioning to cover critical areas. The high-power IR LED array with 850 nm wavelength provides invisible illumination, avoiding light pollution while delivering superior image quality to compatible cameras.

Suitable for

• Outdoor CCTV and security camera systems
• Perimeter surveillance and access control areas
• Parking lots, building entrances, and industrial sites
• Remote monitoring in low-light or no-light conditions

Key specifications

• Illumination Range: 30 m
• Beam Angle: 90°
• Infrared Wavelength: 850 nm
• Power Supply: 12 V DC
• Current Consumption: 1.2 A
• Power Consumption: 14.4 W
• LED Type: High-power IR LED array
• Automatic Activation: Built-in photocell (dusk-to-dawn)
• Ingress Protection: IP66
• Housing Material: Aluminum alloy / Durable plastic
• Operating Temperature: -20°C to +50°C
• Mounting Type: Adjustable wall/ceiling bracket
• Color: Black
• Input Voltage Tolerance: 10.5V - 15V DC
• LED Lifespan: >50,000 hours
• Application: Outdoor CCTV / Security Camera Systems
• Certifications: CE, RoHS

Recommendations

For optimal performance, pair the DELTA IRL-30/90 with a compatible 12V DC power supply and a camera that supports 850 nm IR illumination. Ensure the mounting surface is sturdy and the bracket is securely tightened. Regular cleaning of the lens cover will maintain maximum light output.
