Digital Signage stanica LevelOne DSS-1000

Digital Signage Station LevelOne DSS-1000 is software for displaying and managing live video surveillance streams and other media. It supports Full HD resolution up to 1920 x 1080 pixels and common formats such as AVI and JPG. The software can be used together with the DSS-1000 hardware to show live camera feeds, picture slideshows for advertising, or visual material for announcements, enabling repurposing of existing surveillance equipment for cost-effective information display and security management.

Advantages

The solution supports Full HD (1920 x 1080) playback at up to 30 fps and multiple media formats, and is compatible with LevelOne DSS-1000 hardware. Its compact hardware dimensions (114 mm x 33 mm x 135 mm) and standard 10/100 Mbit/s Ethernet connectivity allow easy integration into existing networks. LED indicators provide clear status for power and readiness, while local or remote database connections simplify centralized management of displayed content.

Suitable for (tasks / use cases)

• Displaying live surveillance video feeds in control rooms or public areas
• Running image slideshows for advertising or announcements
• Combining security monitoring with informational signage in retail, transport hubs, or corporate sites
• Remote content management via local or remote Digital Signage Station database

Key specifications

• Supported resolution: up to 1920 x 1080 (Full HD)
• Frame rate: up to 30 fps
• Supported formats: AVI, JPG (and other common formats)

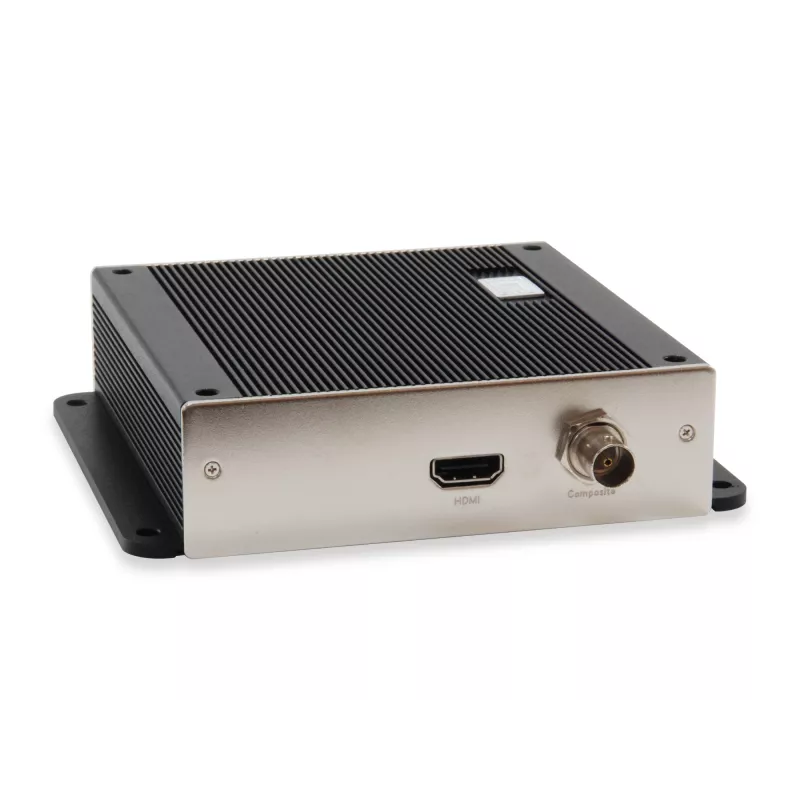

• Dimensions (hardware): 114 mm x 33 mm x 135 mm
• Ethernet: 10/100 Mbit/s
• Indicators: LED for power and readiness
• Brand / model: LEVELONE DSS-1000
• EAN: 4015867202005

How to use

Install and run the Digital Signage Station software and connect it to the DSS-1000 hardware. Configure the display sources to include live camera streams or media files (such as AVI or JPG). Adjust resolution and playback settings to match connected displays (up to 1920 x 1080 at 30 fps). Use the software interface to schedule playlists, switch between live feeds and media, and assign displays to specific zones or screens.

Recommendations

For reliable performance, use a stable 10/100 Mbit/s Ethernet connection and ensure the DSS-1000 hardware is placed where its LEDs are visible for quick status checks. When displaying Full HD content, verify that connected displays and network bandwidth support 1920 x 1080 playback at 30 fps. Maintain the Digital Signage Station database on a local or remote server for centralized content management and backups.
